DBT12/15/24 Operations Manual....36
The Paralleling Master is expected to be installed to the right of the first Slave DBT as shown in
Figure 15. To prevent hot air from the DBT outlet from entering the Paralleling Master the
Paralleling Master’s air inlet is on the right side and outlet on the left. Option 628807 moves the
Paralleling Master’s air inlet to the left side and outlet to the right, for installations where the
Paralleling Master is placed on top of the Slave DBT(s), like the one shown in Figure 16.

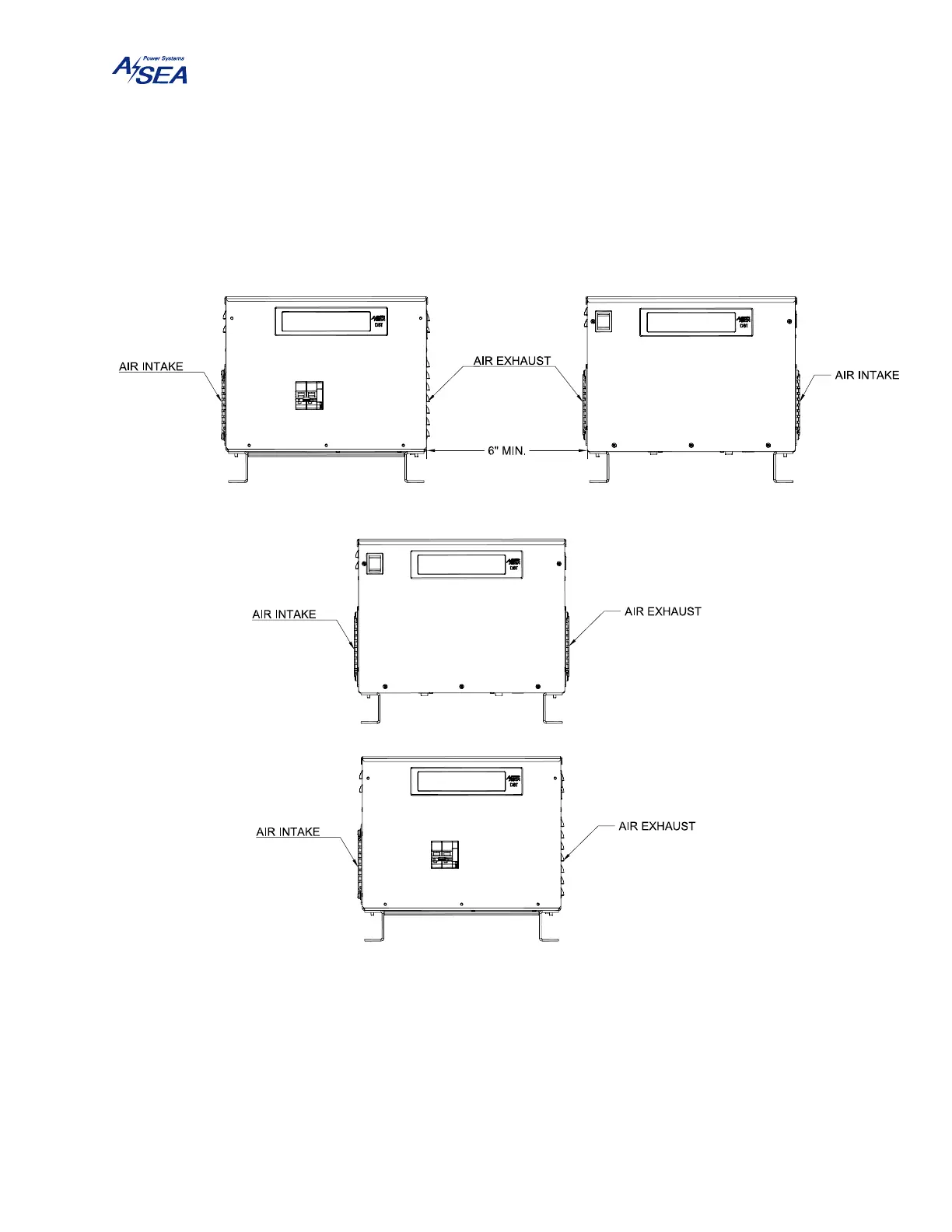

Figure 15: Paralleling Master Installed to the right of the first Slave DBT
Figure 16: Paralleling Master Installed on top of the first Slave DBT
