DBT12/15/24 Operations Manual....42
Paralleling cables carry control and status signals between the Paralleling Master and the two Slave DBT units and should be connected according to Figure 19. Trident systems are supplied with two 40' (12.2 m) paralleling
cables standard. Custom lengths can also be specified at time of order. For reference, custom length paralleling cables have a part number of 628805-XX, where XX is the length in feet.

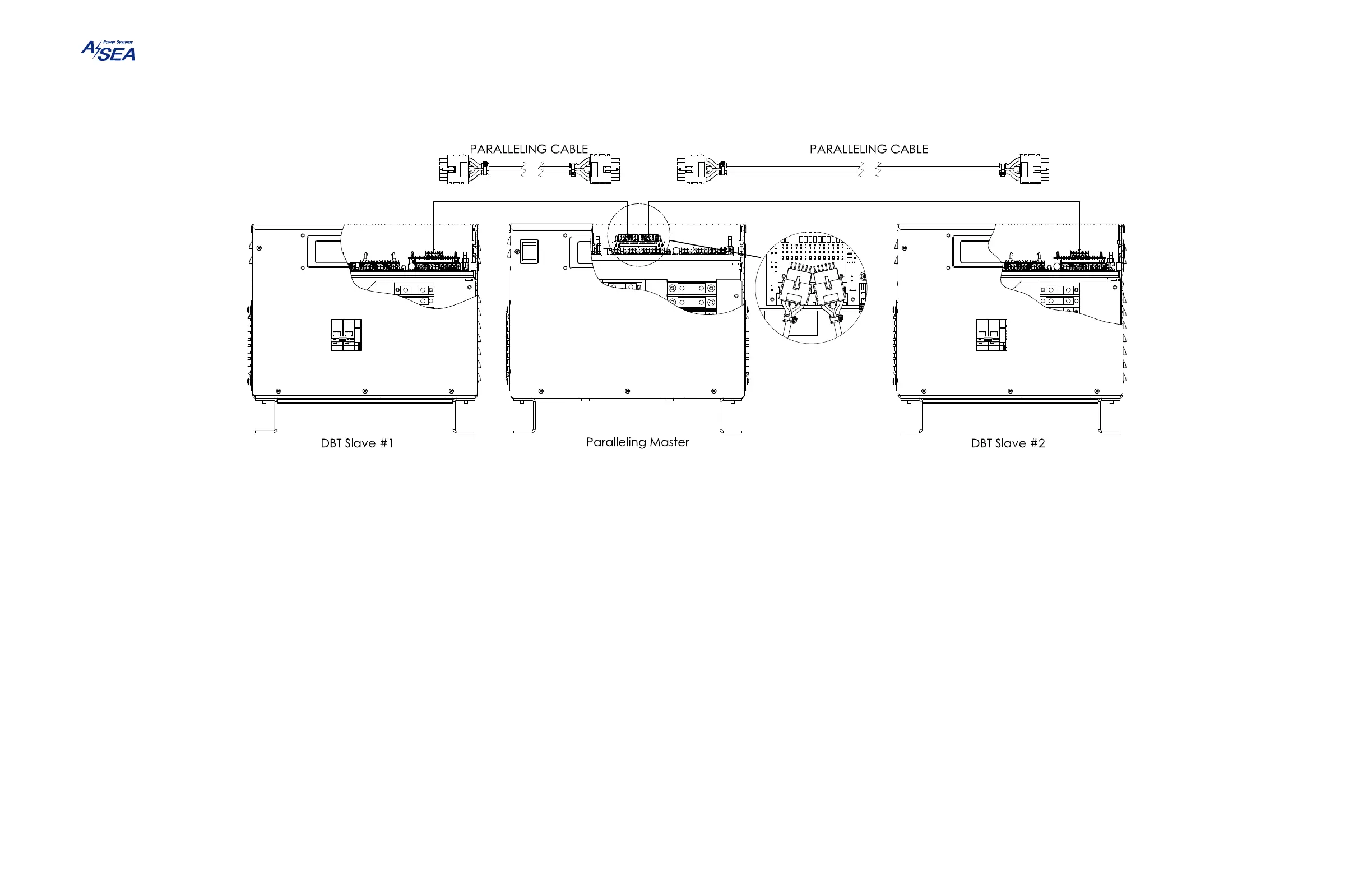

Figure 19: Trident System Paralleling Cable Connection Diagram
