15

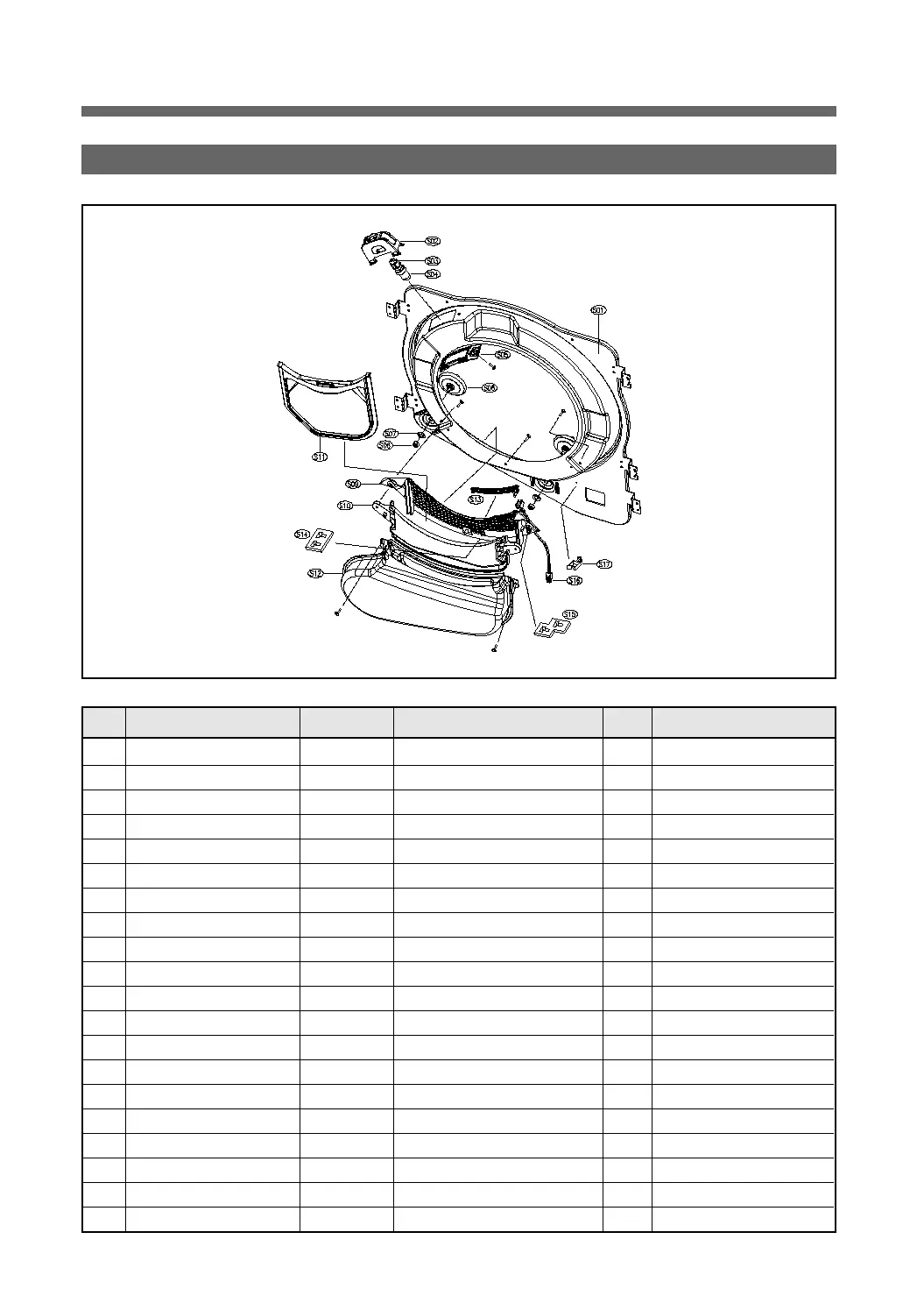

6. SUPPORT DRUM FRONT ASS'Y
S01 SUPPORT DRUM F 3615304600 SECD 0.8T 1
S02 HOUSING LAMP 3613053400 PP(Heat Resisting) 1
S03 SOCKET LAMP 3613053300 14 BASE LEAD WIRE TYPE 1
S04 LAMP 3613625400 AC 125V 15W 1
S05 WINDOW LAMP 3615505100 ABS(Transparent) 1
- SCREW TAPPING 7112401208 T1 TRS 4x12 SUS 1
For fixing Window Lamp to Sup.Drum F
S06 ROLLER AS 3614714400 WE31'S Roller As 2
S07 WASHER SHAFT 3616039400 T=1.6 ID=10.0 OD=25 2
S08 NUT HEX 3616039300 M10 P1.5 2
S09 BODY FILTER R 3611909700 PP(Heat resisting) 1
S10 BODY FILTER F 3611909600 PP(Heat resisting) 1
S11 FILTER AS 3611909810 PP+NYLON MESH 1 Insert injection
S12 DUCT OUTLET AS 3617510400 ALCOSTA 0.6T 1
- SCREW TAPPING 7122401408 T2S TRS 4x14 SUS 3
For fixing Body Filter to Sup.Drum F
- SCREW TAPPING 7122401408 T2S TRS 4x14 SUS 3
For fixing Duct Outlet As to Sup.Drum F
S13 SENSOR MOISTURE 3614825500 STS430 2B 0.8T 2
S14 FIXTURE SENSOR A 3612009600 PP(Heat resisting) 1 Located center position
S15 FIXTURE SENSOR B 3612009700 PP(Heat resisting) 1 Located right position
S16 HARNESS SENSOR 3612797200 UL. DRYER. SUB-SENSOR 1
S17 LOCK HARNESS 3613802400 M TYPE 15x19 1
For fixing Harness Sensor to Sup Drum F
No. Part Name Part Code Description Qtt'y Remark
To Next Page
