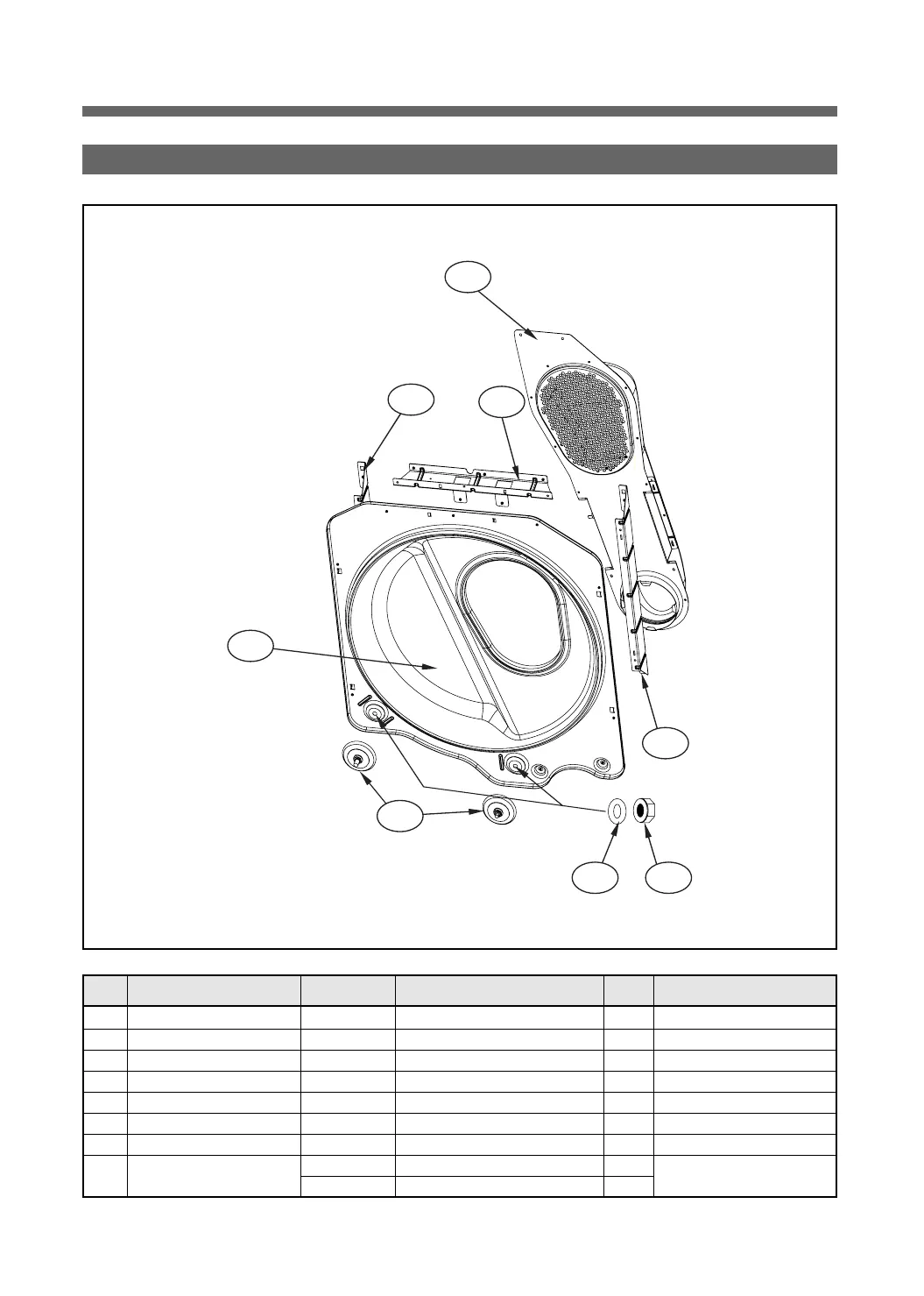

5. SUPPORT DRUM REAR ASS'Y
B06
B01 SUPPORT DRUM REAR 3615304500 STS430 2B 0.8T 1
B02 BRACKET SUP.R-SIDE 3610608810 SGCC 1.0t 2
B03 BRACKET SUP.R-UPPER 3610608910 SGCC 1.0t 1
- SCREW TAPPING 7122401411 T2 TRS 4x14 MFZN 7
For fixing bracket supp.up & side
B04 ROLLER AS 3614714400 ASSY 2
B05 WASHER SHAFT 3616039400 T=1.6 ID=10.0 OD=25 2 For fixing roller as
B06 NUT HEX 3616039300 M10 P1.5 2 For fixing roller as
B07 DUCT INLET AS 3617510100 ELECTRIC, DUCT INLET AS 1 Refer to 13 page
3617510110 GAS, NON-HEATER 1
