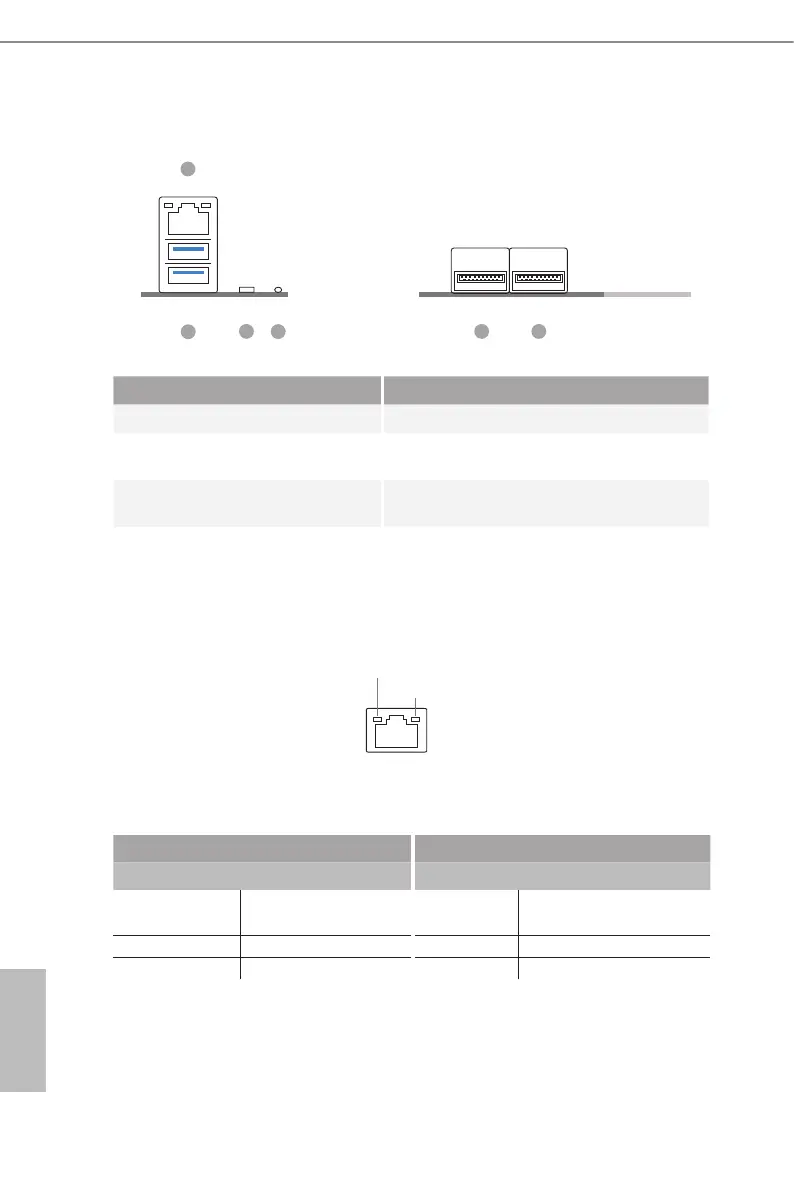

1.6 I/O Panel
4
3
5 6
2
1
No. Description No. Description
1 USB 3.2 Gen1 Ports (USB3_1_2) 4 UID LED (UID_LED1)
2 IPMI LAN Header (IPMI_LAN)* 5
25G SFP28 (Fiber) (LAN1, Shared NIC)**
(
GENOAD12M3-2Q, GENOAD12M3-2Q/H only)
3 UID Switch (UID1) 6
25G SFP28 (Fiber) (LAN2)**
(
GENOAD12M3-2Q, GENOAD12M3-2Q/H only)
LAN Port LED Indications
*ere is an LED on each side of IPMI LAN port. Please refer to the table below for the
LAN port LED indications.
LAN Port
ACT/LINK LED
SPEED LED
IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection or no
link
Blinking Yellow Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
