2.11 M.2 SSD Module Installation Guide
The Hyper M.2 Socket (M2_1/M2_2, Key M) supports type 2260/2280/22110 M.2 PCI
Express module up to Gen5 x4 (32GT/s x4).

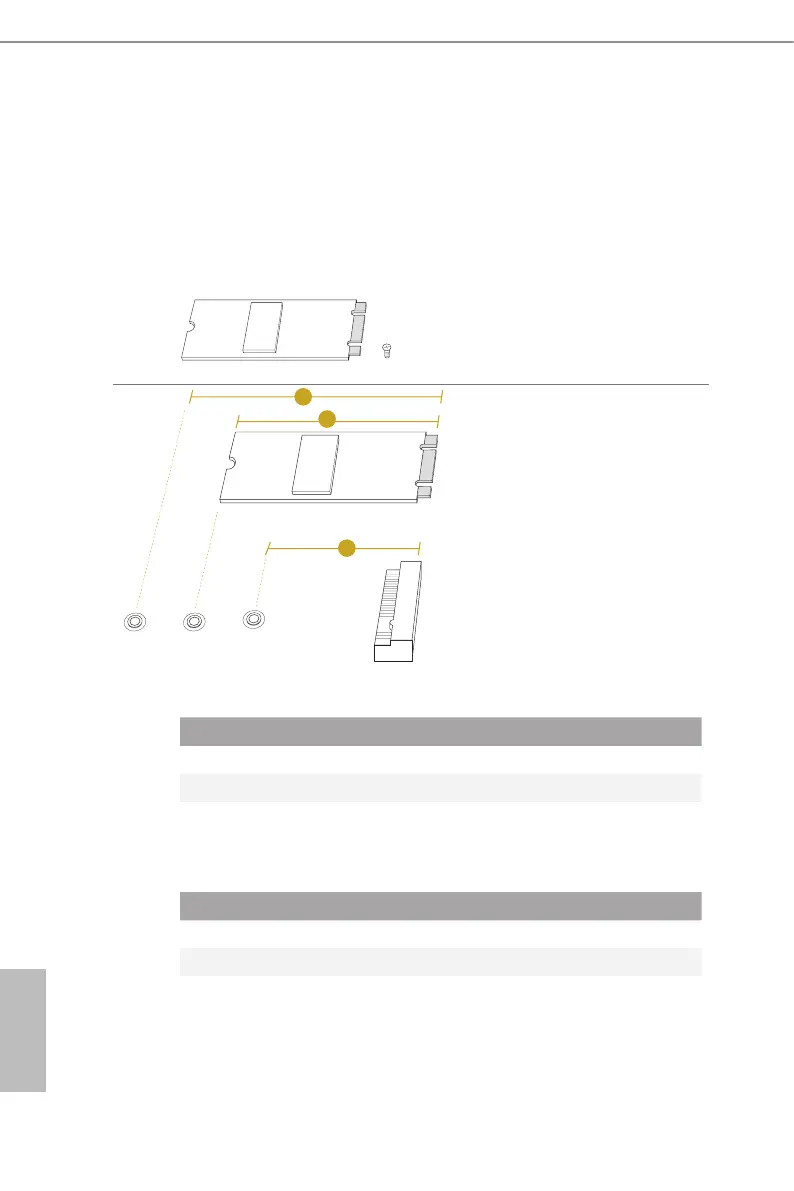

Installing the M.2 SSD Module
Step 1
Prepare a M.2 SSD module and the
screw.
2
3
BC
A
1
M2_1:
M2_2:
Step 2
Depending on the PCB type and
length of the M.2 SSD module, nd
the corresponding nut location to be
used.
No. 1 2 3
Nut Location A (NUT60_2) B (NUT80_2) C (NUT110_2)
PCB Length 6cm 8cm 11cm
Module Type Type 2260 Type 2280 Type 22110
No. 1 2 3
Nut Location A (NUT60_1) B (NUT80_1) C (NUT110_1)
PCB Length 6cm 8cm 11cm
Module Type Type 2260 Type 2280 Type 22110
