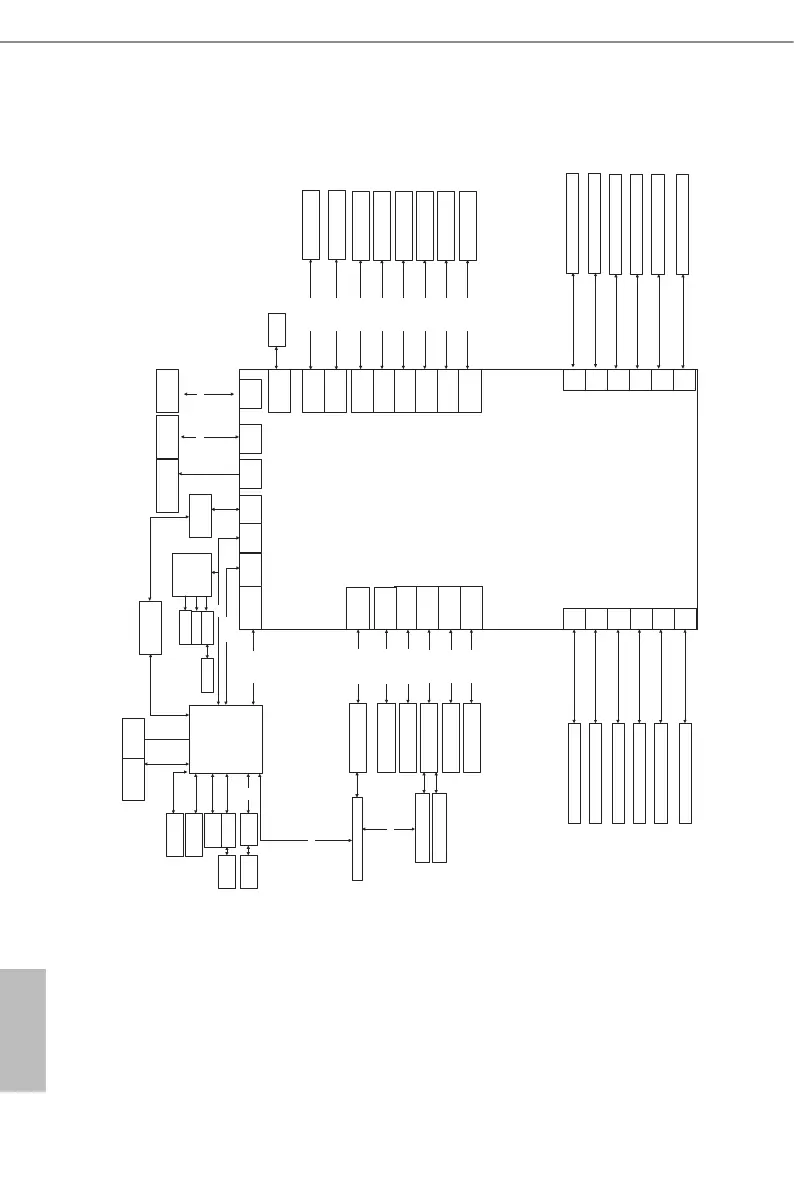

1.7 Block Diagram
AMD Family 19h 10h-1Fh Processor
CPU
GENOA SP5
Socket SP5 (SMLGA-6096)
1DPC support 12 DIMM with RDIMM
CHG CHH
CHI
CHJ
CHA
CHB CHC
CHD
1 x DDR5 RDIMM 1 x DDR5 RDIMM 1 x DDR5 RDIMM 1 x DDR5 RDIMM
1 x DDR5 RDIMM 1 x DDR5 RDIMM 1 x DDR5 RDIMM 1 x DDR5 RDIMM
PCIe Gen3 x1
P5
BMC AST2600
PCIe Gen2 x1
USB10_DP
USB2.0 x1
ESPI
ESPI
SIO
NCT6796D-S
SPI
TPM (SPI)
DDR4 DRAM
(512MB)
SPI FLASH
(64MB)
RTL8211F RJ45IPMI
VGA
COM1
USB3.0
5Gbps
USB3.0 Gen1 x2
Single BIOS ROM
(32MB)
6 Pin-FAN*8
NCSI
SGPIO
SGPIO Header x2
Speaker
80-LED
PCIe Gen5 x8
G2
NMI Header
VGA
Header
Buzzer
PCIe Gen5 x16
P3
PCIe Gen5 x8
SATA3 x8
G3
PCIe Gen5 x8
G1
PCIe Gen5 x8
G1
PCIe Gen5 x8
SATA3 x8
G3
PCIe Gen5 x8
G0
PCIe Gen5 x8
G0
TR1
HSBP
HSBP
Header
PCIe Gen5 x8
SATA3 x8
P0
PCIe Gen5 x4
SATA3 x4
P0
PCIe Gen5 x4
SATA3 x4
P0
PCIe Gen5 x16
P1
M2_1
PCIe Gen5 x4
SATA3.0 x4
PCIe Gen5 x16
P2
PCIE7 slot
PCIe Gen5 x16
CHE
CHF
CHK
CHL
1 x DDR5 RDIMM 1 x DDR5 RDIMM
1 x DDR5 RDIMM 1 x DDR5 RDIMM
USB3.0*2
(Type-A)
M2_2
PCIe Gen5 x4
SATA3.0 x4
BCM 57414 : 25Gb x2
PCIE6 slot
PCIe Gen5 x16
OCP3.0
PCIe Gen5 x16
MCIO_7 PCIe Gen5 x8 MCIO_8 PCIe Gen5 x8 MCIO_5 PCIe Gen5 x8 MCIO_6 PCIe Gen5 x8
PCIe Gen5 x8
G2
MCIO_3 PCIe Gen5 x8 MCIO_4 PCIe Gen5 x8
PCIe Gen5 x8
SATA3 x8
PCIe Gen5 x8
SATA3 x8
MCIO_2 MCIO_1
LAN1 LAN2
NCSI_SEL
NCSI
USB3.0
5Gbp s
USB3.0 Gen1 x2
USB3.0*2
(Header )
PCIe Gen5 x8
(GENOAD12M3-2Q, GENOAD12M3-2Q/H only)
(GENOAD12M3-2Q, GENOAD12M3-2Q/H only)
(GENOAD12M3-2Q, GENOAD12M3-2Q/H only)
