GENOAD12M3-2Q
GENOAD12M3-2Q/H
GENOAD12M3/T
24 25
English

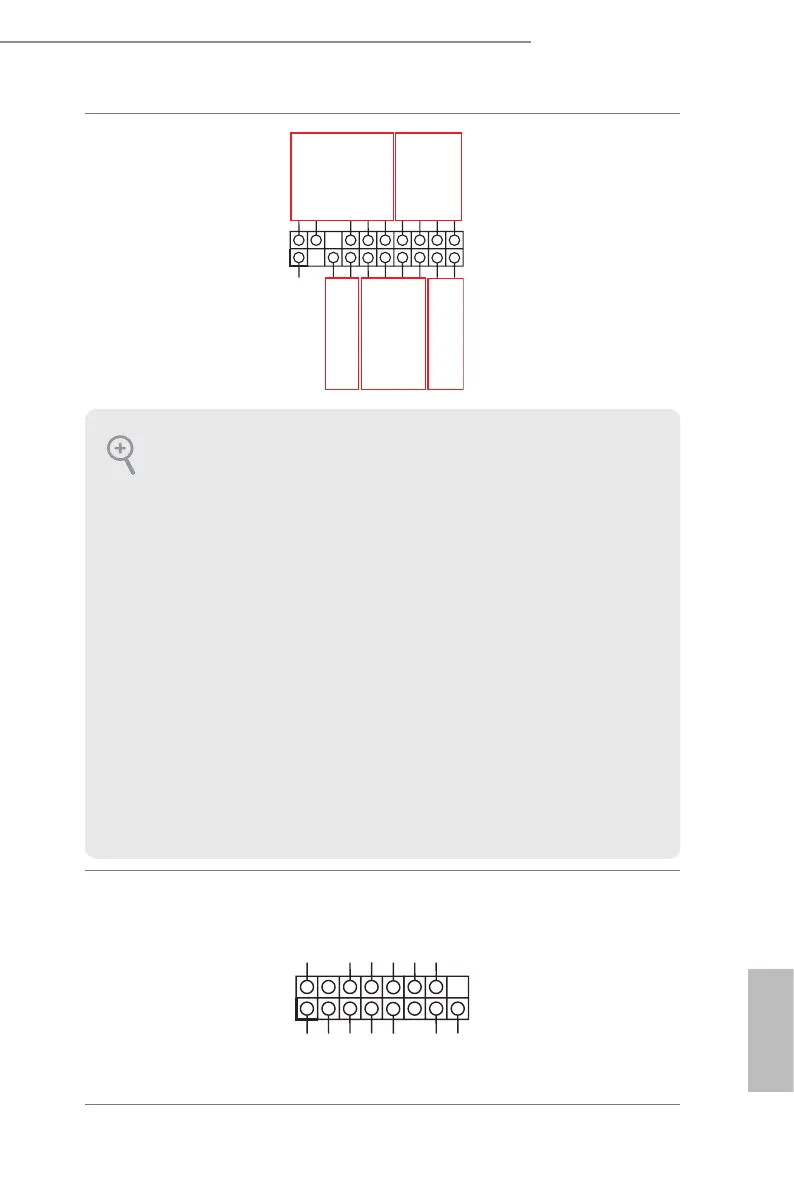

Auxiliary Panel Header
(18-pin AU X _PANEL1)
(see p.6, No. 25)
GND
BMC_SMBCLK1
BMC_Alert1_N
CASEOPEN#
1
SMB_SMBDATA1
+3VSB
P0_LED_0
LAN1_LINK_P
P1_LED_0
LAN2_LINK_P
+5VSB
GND
GND
LOCATORLED+
LOCATORLED-
LOCATORBTN#
System_Fault_LED_P
System_Fault_LED_N
CD
is header supports multiple
functions on the front panel,
including front panel SMB,
internet status indicator.
* e Internet status indicators
are for GENOAD12M3-2Q and
GENOAD12M3-2Q/H only.
Front VGA Header
(15-pin VGA1)
(see p.6, No. 2)
GND
Green
1
V_SYNC
Red
DDC_CLK
GND
+5V
H_SYNC
GND
GND
GND
Blue
Please connect either end
of VGA_2X8 cable to VGA
header.
A. Front panel SMBus connecting pin (6-1 pin FPSMB)
is header allows user to connect SMBus (System Management Bus) equipment. It can
be used for communication between peripheral equipment in the system, which has slower
transmission rates, and power management equipment.
B. Internet status indicator (2-pin LAN1_LED, LAN2_LED)
ese headers allow user to use the Gigabit internet indicator cable to connect to the LAN
status indicator. When this indicator ickers, it means that the internet is properly con-
nected.
C. Chassis intrusion pin (2-pin CHASSIS)
is header is provided for host computer chassis with chassis intrusion detection designs.
In addition, it must also work with external detection equipment, such as a chassis intru-
sion detection sensor or a microswitch. When this function is activated, if any chassis
component movement occurs, the sensor will immediately detect it and send a signal to this
header, and the system will then record this chassis intrusion event. e default setting is
set to the CASEOPEN and GND pin; this function is o.
D. Locator LED (4-pin LOCATOR)
is header is for the locator switch and LED on the front panel.
E. System Fault LED (2-pin System Fault)
is header is for the Fault LED on the system.
To Next Page
