Assa Abloy Corbin Russwin Access 3 - Page 4

Technical Manual
4

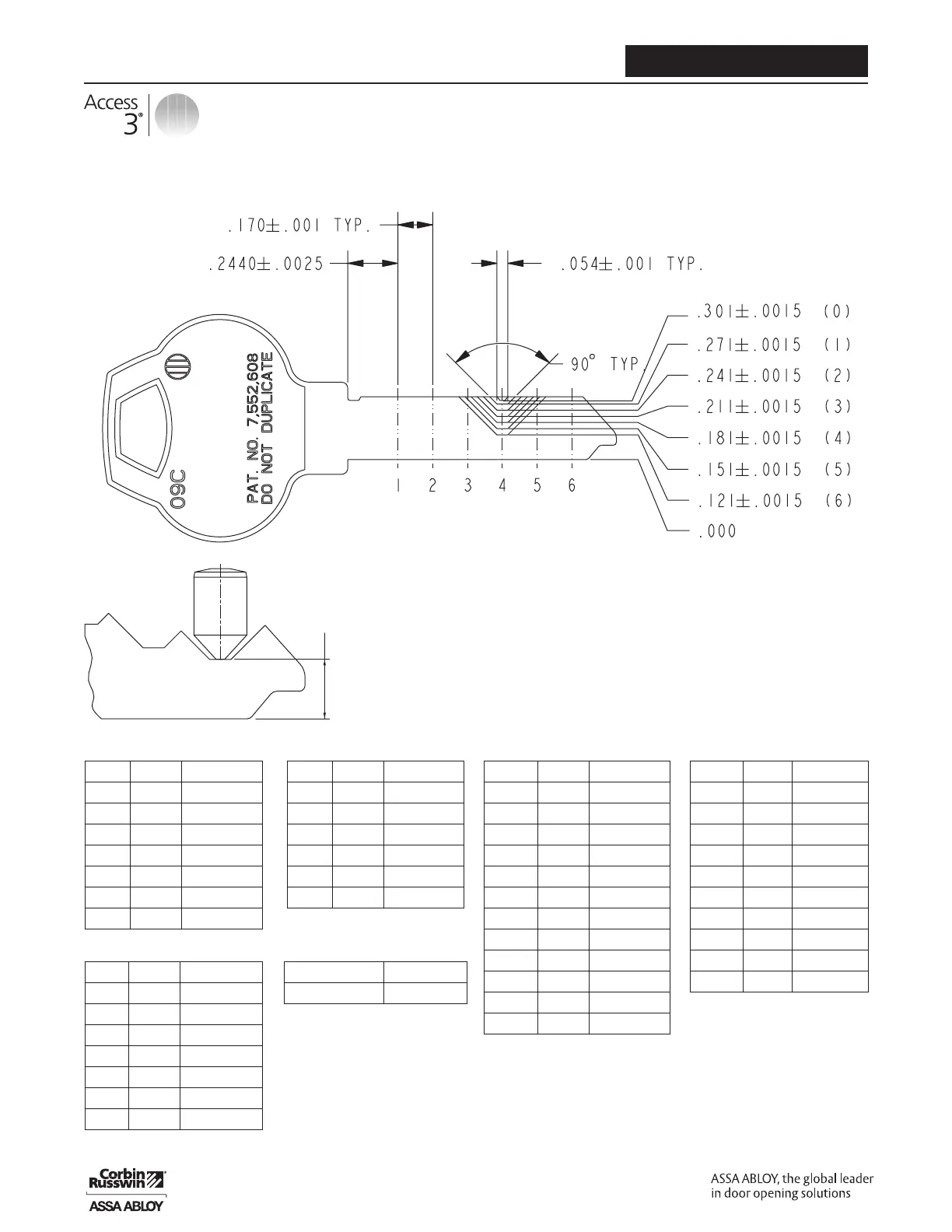

AP Key Cuts
AP cuts from Bow to Tip
MACS-4
Top Pin (TP)
Size # Length Part No.
Top #1 0.030 763F012030
Top #2 0.060 763F012060
Top #3 0.090 763F012090
Top #4 0.120 763F012120
Top #5 0.150 763F012150
Top #6 0.180 763F012180
Top #7 0.210 763F012210
Top #8 0.240 763F012240
Top #9 0.270 763F012270
Top #10 0.300 763F012300
Build Up Pins (BU)
Size # Length Part No.
BU #1 0.030 763F012030
BU #2 0.060 763F012060
BU #3 0.090 763F012090
BU #4 0.120 763F012120
BU #5 0.150 763F012150
BU #6 N/A N/A
BU #7 0.210 763F012210
BU #8 0.240 763F012240
BU #9 0.270 763F012270
BU #10 0.300 763F012300
BU #11 0.330 763F012330
BU #12 0.360 763F012360
Size # Length Part No.
0 .201 763F002213
1 .231 763F002243
2 .261 763F002273
3 .291 763F002303
4 .321 763F002333
5 .351 763F002363
6 .381 763F002393
Bottom Pins (BP)
Size # Length Part No.
1 .030 763F012030
2 .060 763F012060
3 .090 763F012090
4 .120 763F012120
5 .150 763F012150
6 .180 763F012180
Master Pins (MP)
Size # Length Part No.
BR #4 0.120 763F027120
BR #5 0.150 763F027150
BR#6 0.180 763F027180
BR#7 0.210 763F027210
BR#8 0.240 763F027240
BR#9 0.270 763F027270
BR#10 0.300 763F027300
Top Pin - Bump Resistant
Description Part No.
CMK 763F072
CMK Wafer
Depth Spec.
AP Key
Bottom Pin
