Assa Abloy Corbin Russwin Access 3 - Page 5

Technical Manual
5

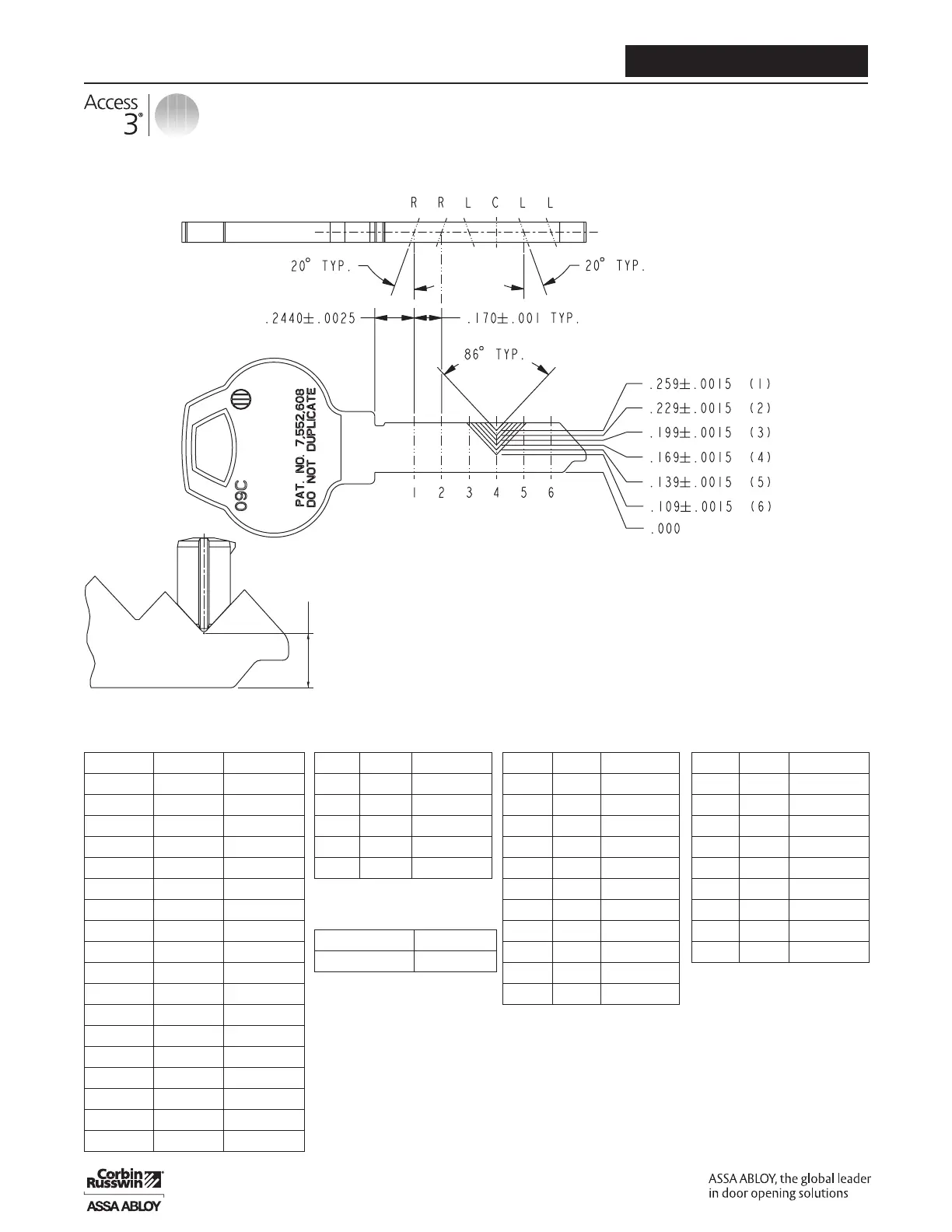

AS & AHS Key Cuts
AS & AHS cuts from Bow to Tip
MACS - 4
Bottom Pin (BP)
Size # Length Part No.
BP #1-C 0.231 763F052243
BP #1-L 0.231 763F042243
BP #1-R 0.231 763F062243
BP #2-C 0.261 763F052273
BP #2-L 0.261 763F042273
BP #2-R 0.261 763F062273
BP #3-C 0.291 763F052303
BP #3-L 0.291 763F042303
BP #3-R 0.291 763F062303
BP #4-C 0.321 763F052333
BP #4-L 0.321 763F042333
BP #4-R 0.321 763F062333
BP #5-C 0.351 763F052363
BP #5-L 0.351 763F042363
BP #5-R 0.351 763F062363
BP #6-C 0.381 763F052393
BP #6-L 0.381 763F042393
BP #6-R 0.381 763F062393
Top Pin (TP)
Size # Length Part No.
Top #1 0.030 763F012030
Top #2 0.060 763F012060
Top #3 0.090 763F012090
Top #4 0.120 763F032120
Top #5 0.150 763F037150
Top #6 0.180 763F037180
Top #7 0.210 763F032210
Top #8 0.240 763F032240
Top #9 0.270 763F032270
Build Up Pins (BU)
Size # Length Part No.
BU #1 0.030 763F012030
BU #2 0.060 763F012060
BU #3 0.090 763F012090
BU #4 0.120 763F012120
BU #5 0.150 763F012150
BU #6 N/A N/A
BU #7 0.210 763F012210
BU #8 0.240 763F012240
BU #9 0.270 763F012270
BU #10 0.300 763F012300
BU #11 0.330 763F012330
Size # Length Part No.
1 .030 763F012030
2 .060 763F012060
3 .090 763F012090
4 .120 763F012120
5 .150 763F012150
Master Pins (MP)
Description Part No.
CMK 763F072
CMK Wafer
Depth Spec
.
AS & AHS Key
Bottom Pin
Dimensions shown are to theoretical intersection
