Harmony Series H1 Mortise Lock
A7877F • 800-810-WIRE (9473) • www.sargentlock.com
8

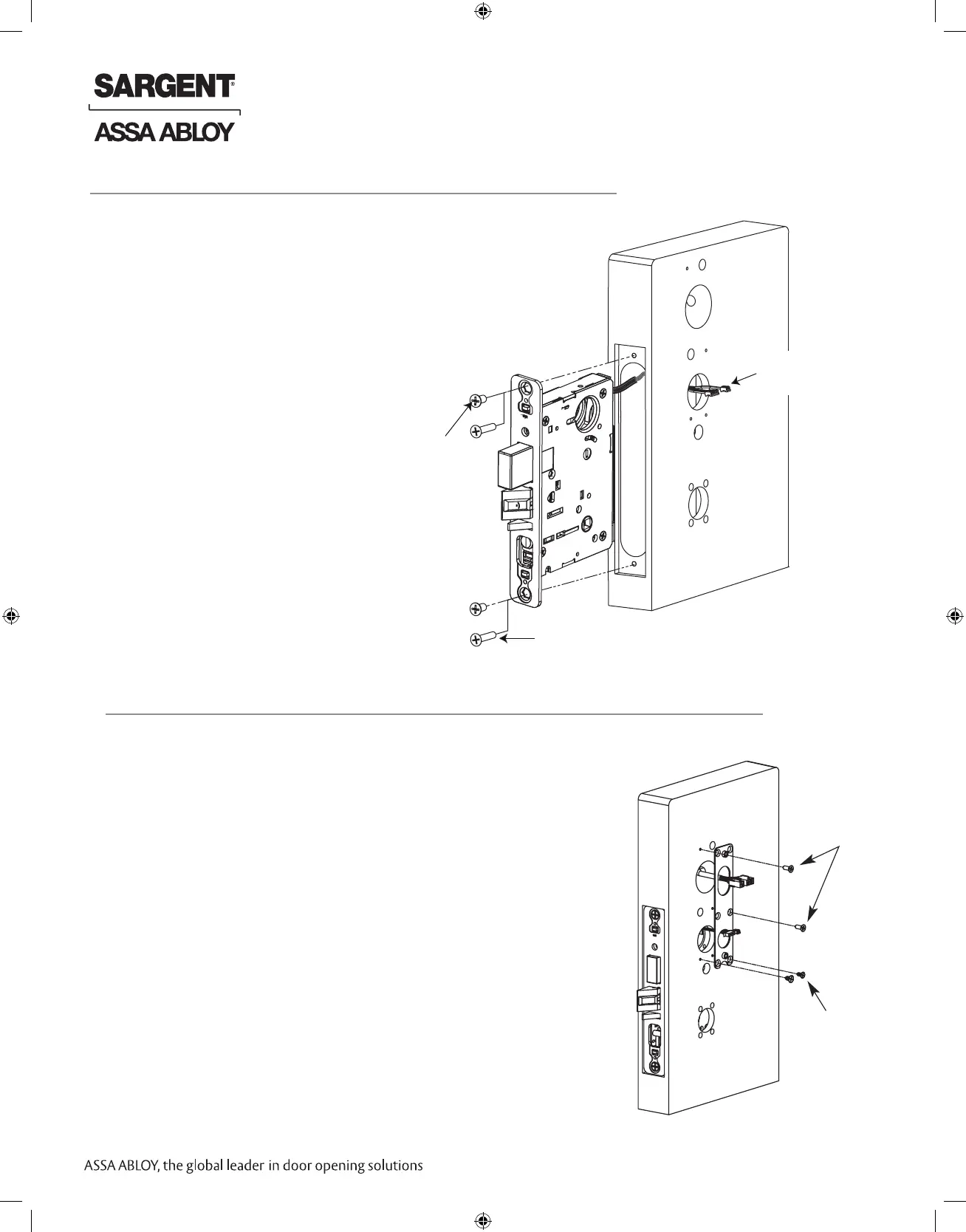

1. Wires and connectors go into the mortised area and out of the
inside cylinder hole.
2. Insert mortise lock body into mortise door preparation.
3. Carefully feed wires from mortise lock through the non-cylinder
side hole of the door preparation.
4. Install appropriate hardware lock body screws.
NOTE: Do not tighten screws completely at this time.
Cylinder should be installed prior to tightening.
Inside of Door
(2)#12 x 1-1/4” Long Flat Head Wood
Screws (Wood Doors)
Fig. 4A
(2) #12-24 x 1/2” Long Flat
Head Philips Screws (Metal Doors)
Feed connectors
and wires through
non-cylinder side.
3 Install Lock body
NOTE: Feed mortise connectors through the corresponding hole on the mounting plate.
1. Attach the mounting plate using (2) 8-32 x 3/8" Phillips flat head
undercut combo screws in the upper left and middle right
positions of the mounting plate and (2) 8-32 x 3/8" Phillips flat head
screws in the bottom positions (Fig. 5A).
4 Outside Escutcheon and Mounting Plate Installation
Fig. 5A
Inside of Door
To Next Page
