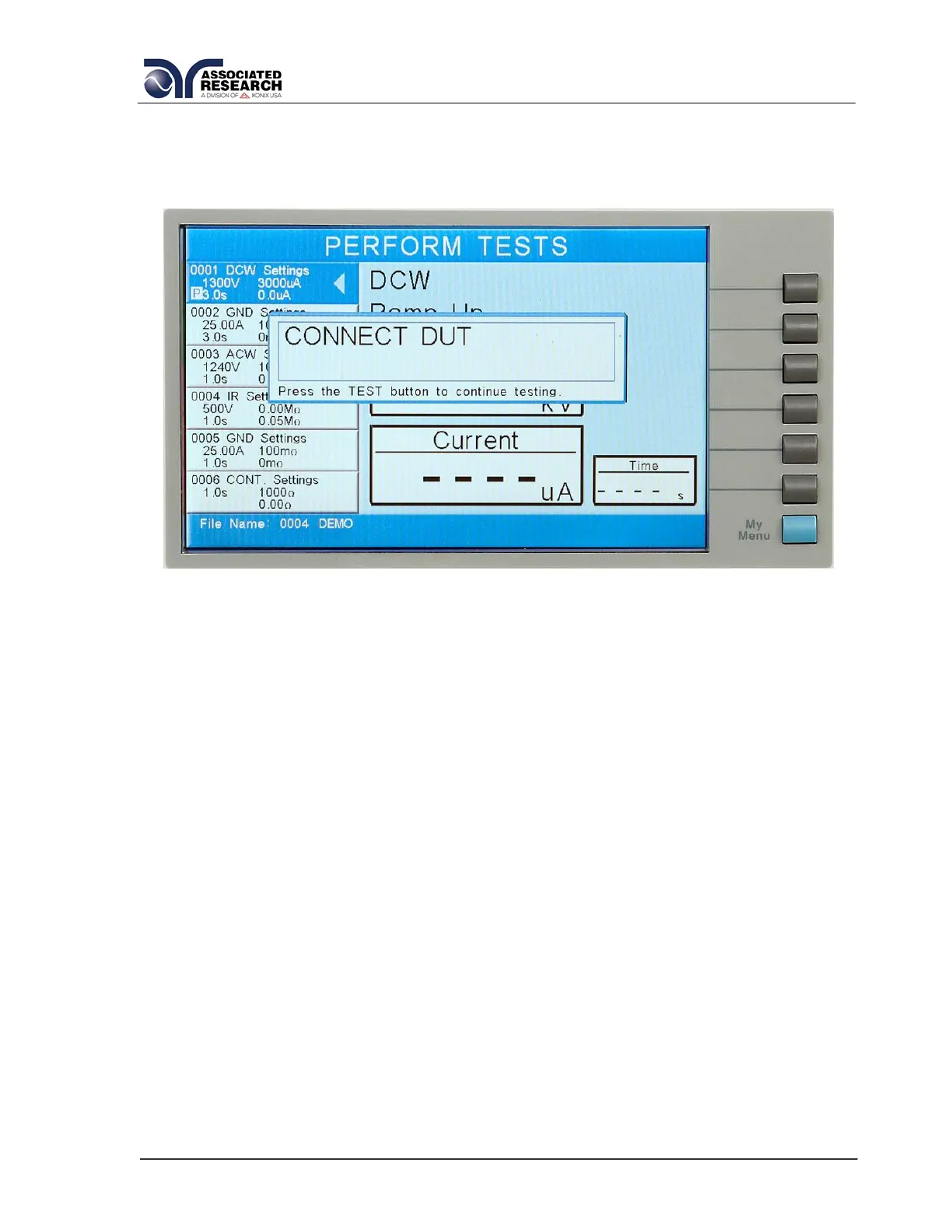

5. If a Prompt is embedded within a step, the test will pause at that step and
display the Prompt as a pop-up message. An example of a prompt will appear
as follows:
6. In order to clear the Prompt and continue the test, push the TEST button. The
highlighted area of the screen remains on the test that is being performed until
it is finished. At the same time on the right half of the screen will be the
appropriate metering display for the type of test that is being performed (refer to
section 5.4. Perform Tests Metering). When the step is complete the
highlighted area will sequence to the next step and the new metering display
will appear (unless there is a prompt embedded within the step). When the
highlighted area moves to the next step, the previous step area will now display
the results of the test just performed.
7. At the end of the test sequence, the right side of the screen will display a
flashing PASS if all the tests have completed successfully or a flashing FAIL if
any of the tests did not complete successfully. If a test fails, the right side of
the screen will indicate the step that failed and which parameter of the step
failed.
