141

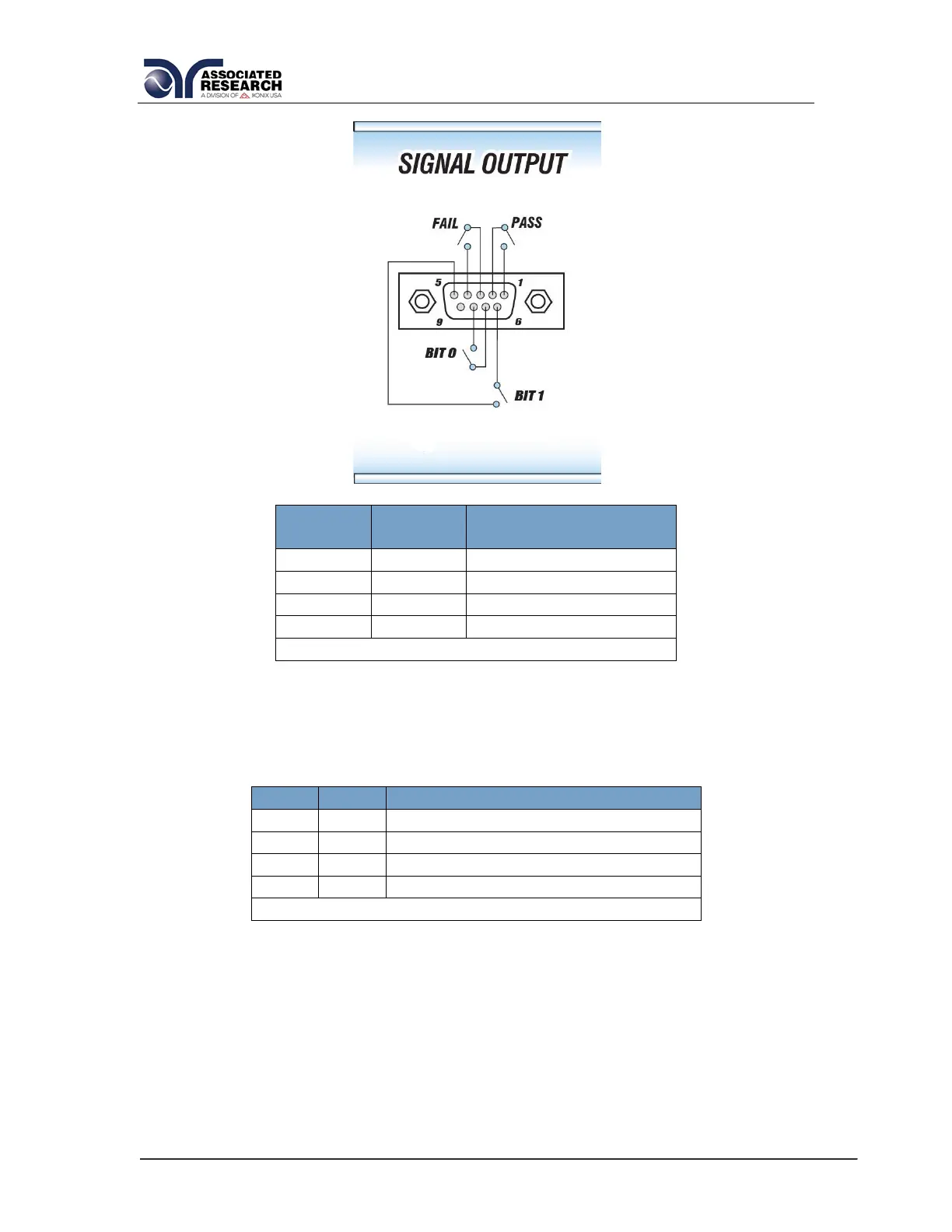

BIT 1
BIT 0
TEST VOLTAGE
SETTING
0
0
Not used
0
1
M1
1
0
M2
1
1
M3
0 = OPEN 1 = CLOSED
Because the relay that normally provides the processing signal has been
reconfigured for voltage control, the Fail and Pass signals have been
reconfigured to provide Pass, Fail, and Processing signals. The different states of
the Fail and Pass signals are described in the truth table below.
For questions related to the standard configuration of the PLC remote, please
refer to section 6. Connection of Remote I/O.
The following Test Parameter Editing GPIB commands may be used to control
the memory send selection.
FAIL
PASS
CONDITION
0
0
After RESET is pressed
0
1
Pass
1
0
Fail
1
1
Processing
0 = OPEN 1 = CLOSED
