Astraada DRV-24 frequency inverters Communication protocol
110

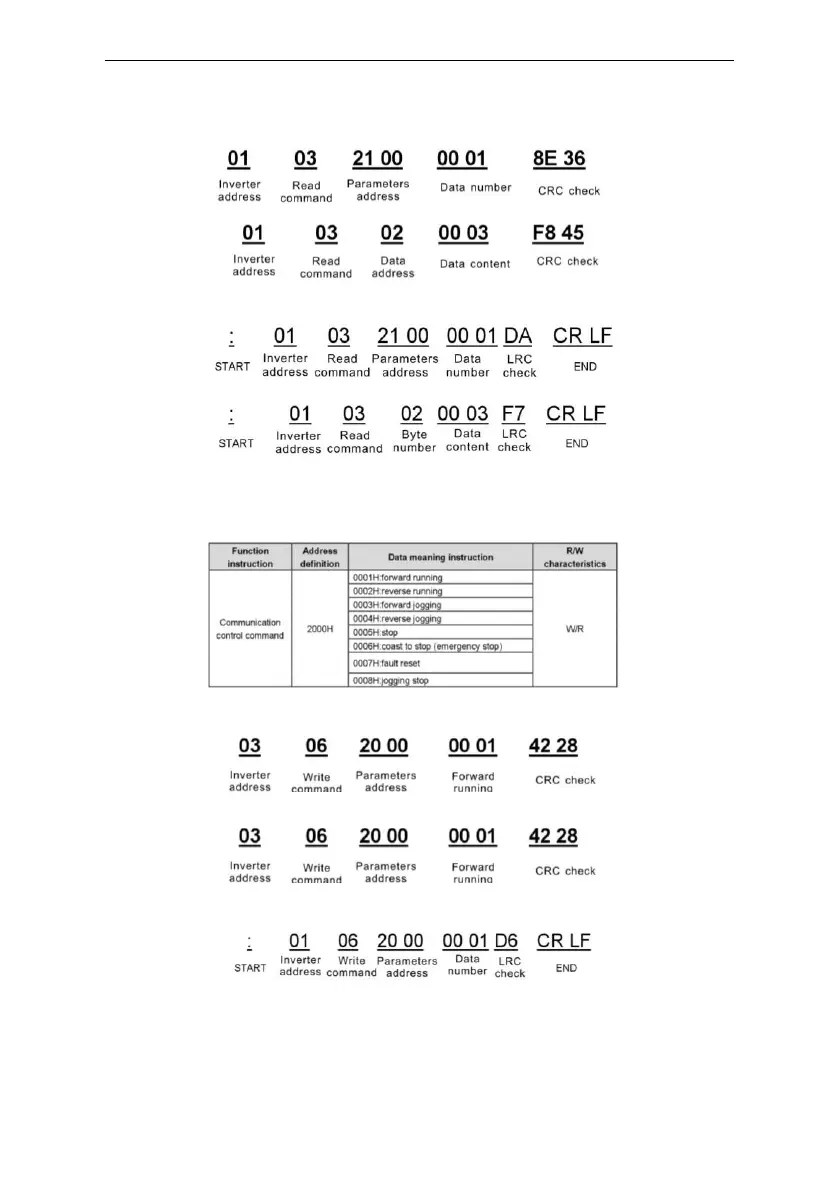

If the response message is as below:
ASCII mode:
The command sent to the inverter:
If the response message is as below:
The data content is 0003H. From the table 1, the inverter stops.
7.5.2 Example of writing command 06H
Example 1: make the inverter with the address of 03H to run forward. See table 1, the address of
“communication control command” is 2000H and forward running is 0001. See the table below.
RTU mode:
The command sent by the master:
If the operation is successful, the response may be as below (the same with the command sent by
the master):
ASCII mode:
The command sent to the inverter:
If the response message is as below:
