Astraada DRV-24 User Manual

Astraada DRV-24 frequency inverters Communication protocol
112
Function
instruction
Address
definition
Data meaning instruction
R/W
characteristics
corresponds to100.0% )

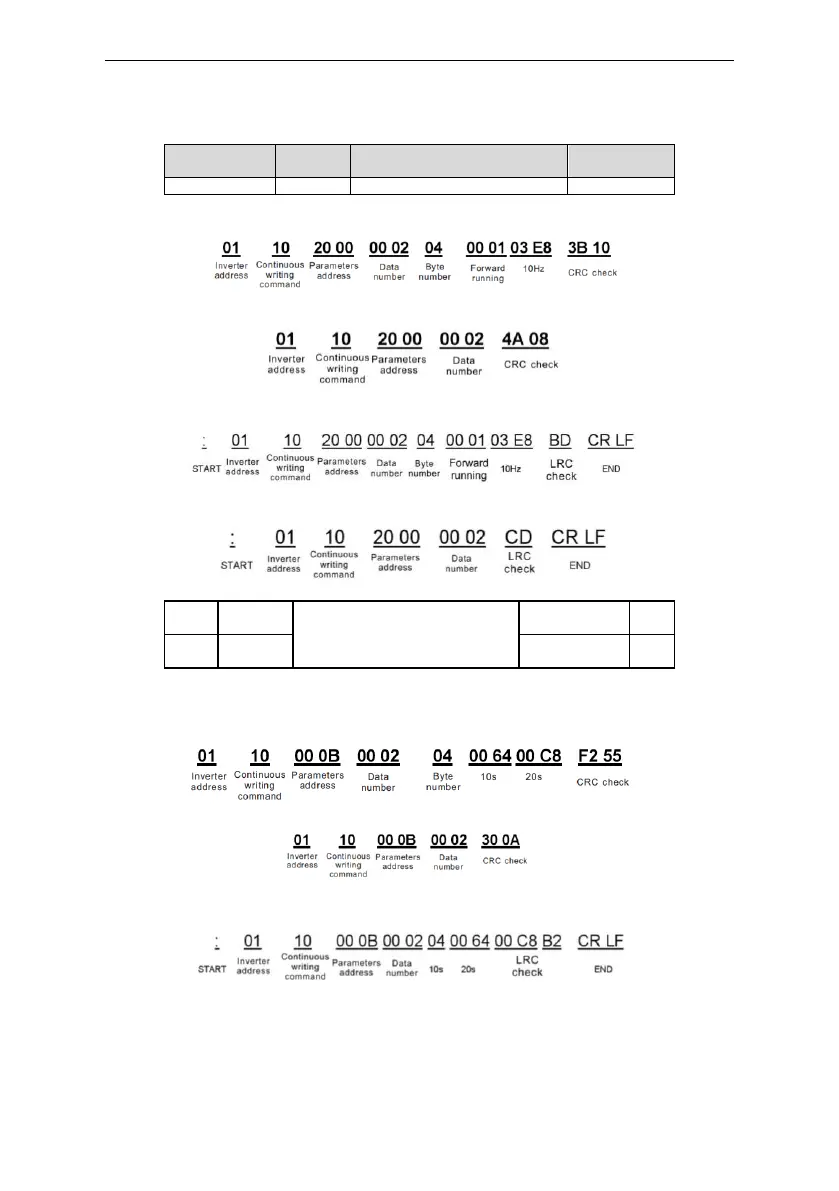

RTU mode:
The command sent to the inverter:
If the response message is as below:
ASCII mode:
The command sent to the inverter:
If the response message is as below:
Example 2: set the ACC time of 01H inverter as 10s and the DEC time as 20s
P00.11
ACC time
1
Setting range of P00.11 and
P00.12:
0.0~3600.0s
Depend on
model
○
P00.12
DEC time
1
Depend on
model
○
The corresponding address of P00.11 is 000B, the ACC time of 10s corresponds to 0064H, and the
DEC time of 20s corresponds to 00C8H.
RTU mode:
The command sent to the inverter:
If the response message is as below:
ASCII mode:
The command sent to the inverter:
If the response message is as below:
