Astraada DRV-24 frequency inverters Function Parameters
64
Detailed instruction of parameters
Setting range of P08.25:P08.26~65535
Setting range of P08.26:0~P08.25
Pre-set running time of the inverter. When the
accumulative running time achieves the set
time, the multi-function digital output
terminals will output the signal of “running
time arrival”.
Setting range:0~65535min
The time of the fault reset: set the fault reset
time by selecting this function. If the reset time
exceeds this set value, the inverter will stop for
the fault and wait to be repaired.
The interval time of the fault reset: The interval
between the time when the fault occurs and
the time when the reset action occurs.
Setting range of P08.28:0~10
Setting range of P08.29:0.1~100.0s
Interval
time of
automatic
fault reset
Frequency
decreasing
ratio in drop
control
The output frequency of the inverter changes
as the load. And it is mainly used to balance the
power when several inverters drive one load.
Setting range: -50.00Hz~50.00Hz
FDT1
electrical
level
detection
value

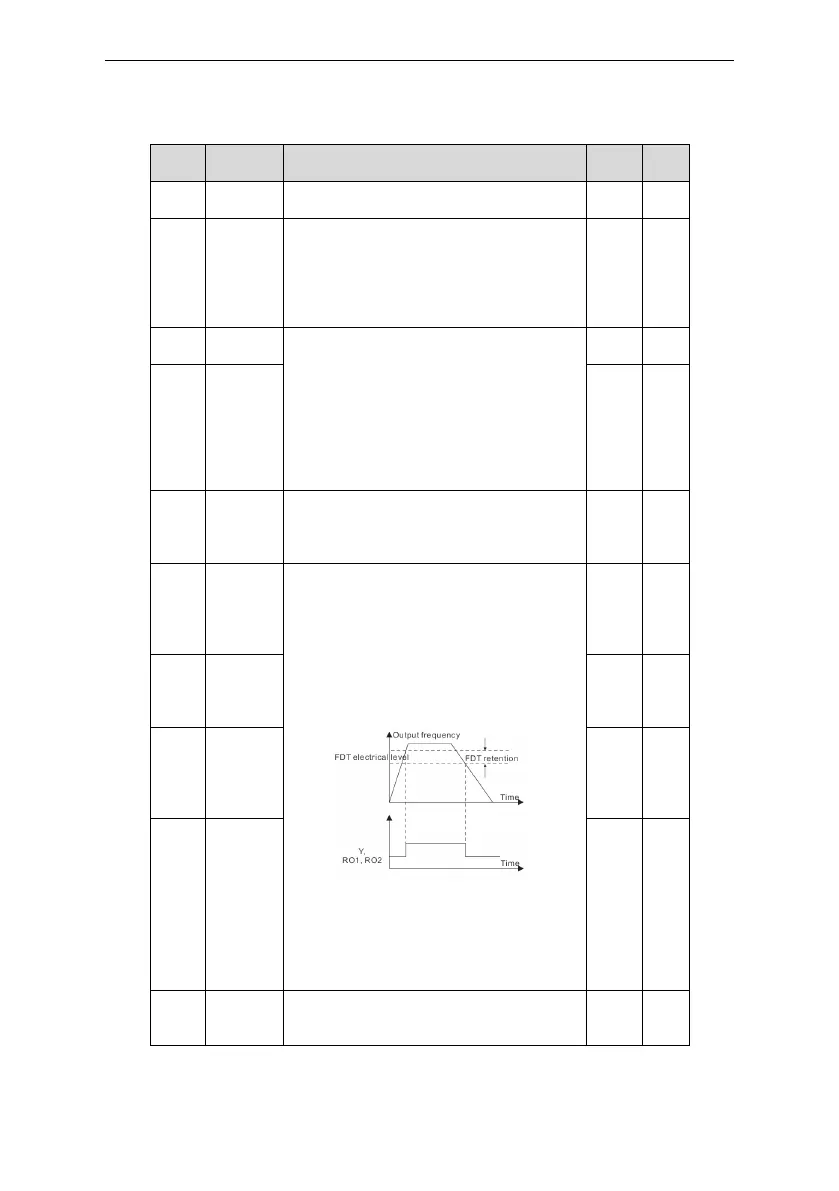

When the output frequency exceeds the
corresponding frequency of FDT electrical level,
the multi-function digital output terminals will
output the signal of “frequency level detect
FDT” until the output frequency decreases to a
value lower than (FDT electrical level—FDT
retention detection value) the corresponding
frequency, the signal is invalid. Below is the
waveform diagram:
Setting range of P08.32: 0.00Hz~P00.03
(the Max. frequency)
Setting range of P08.33 and P08.35:
0.0~100.0%
Setting range of P08.34: 0.00Hz~P00.03
(the Max. frequency)
FDT1
retention
detection
value
FDT2
electrical
level
detection
value
FDT2
retention
detection
value
Frequency
arrival
detection
When the output frequency is among the
below or above range of the set frequency, the
multi-function digital output terminal will
