P08.15 is set as 0, the traverse is 0 with no
function.

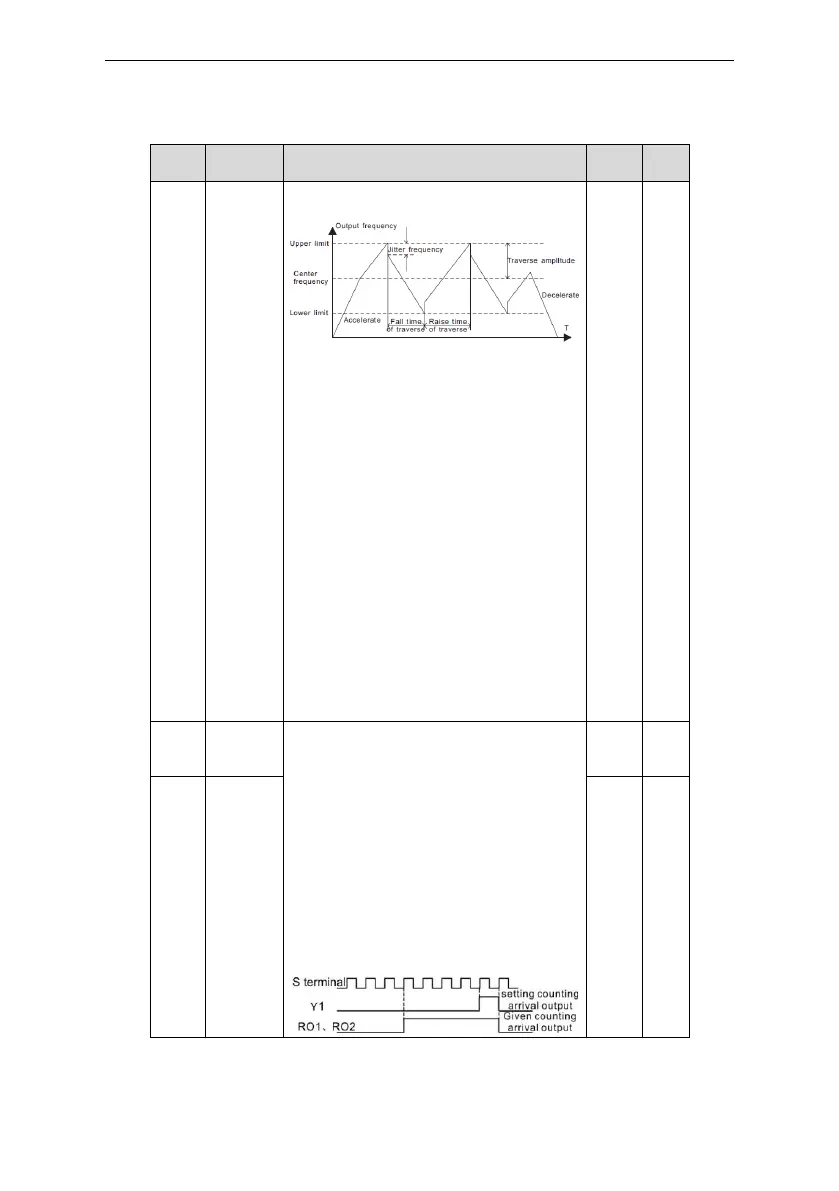

Traverse range: The traverse running is limited
by upper and low frequency.
The traverse range relative to the center
frequency: traverse range AW＝center
frequency×traverse range P08.15.
Sudden jumping frequency＝traverse range
AW×sudden jumping frequency range P08.16.
When run at the traverse frequency, the value
which is relative to the sudden jumping
frequency.
The raising time of the traverse frequency: The
time from the lowest point to the highest one.
The declining time of the traverse frequency:
The time from the highest point to the lowest
one.
The setting range of P08.15: 0.0~100.0%
(relative to the set frequency)
The setting range of P08.16: 0.0~50.0%
(relative to the traverse range)
The setting range of P08.17: 0.1~3600.0s
The setting range of P08.18: 0.1~3600.0s
The counter works by the input pulse signals of
the HDI terminals.
When the counter achieves a fixed number, the
multi-function output terminals will output the
signal of “fixed counting number arrival” and
the counter go on working; when the counter
achieves a setting number, the multi-function
output terminals will output the signal of
“setting counting number arrival”, the counter
will clear all numbers and stop to recount
before the next pulse.
The setting counting value P08.26 should be no
more than the setting counting value P08.25.
The function is illustrated as below:
