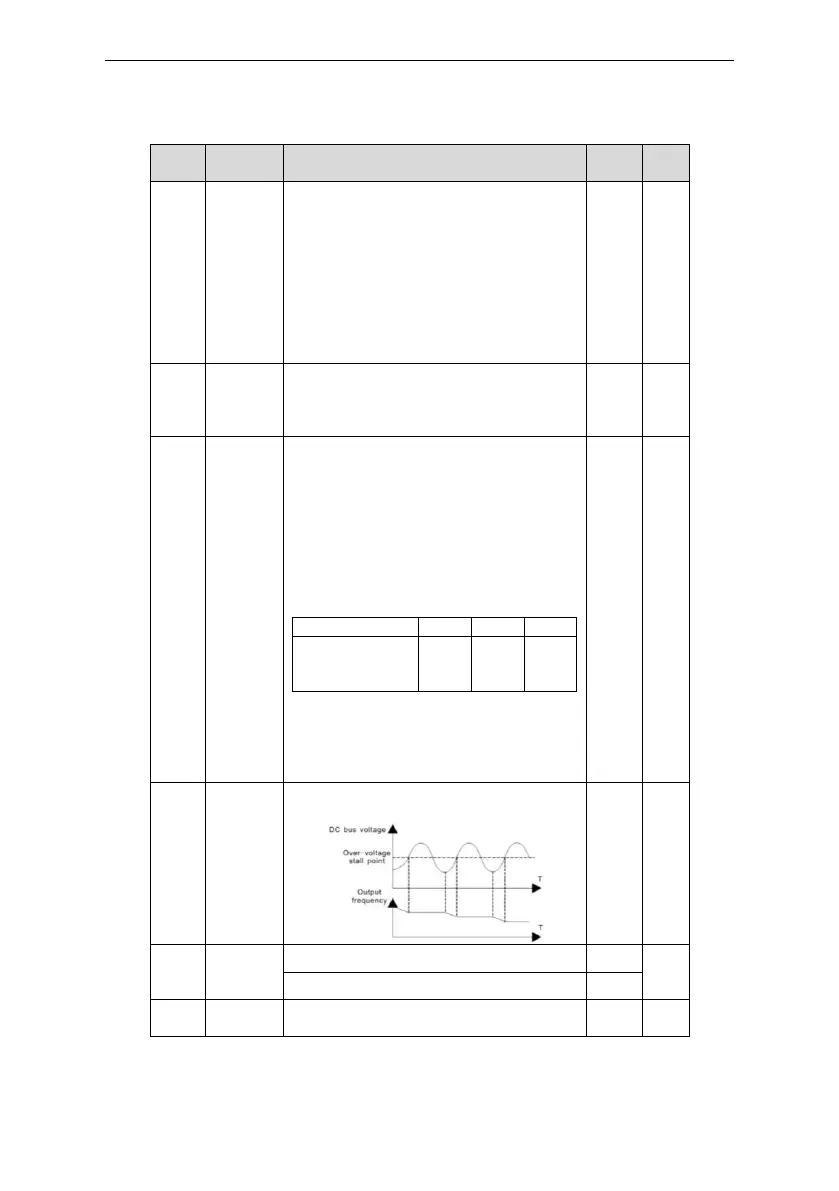

Astraada DRV-24 frequency inverters Function Parameters
75
Functio
n code
Name
Detailed instruction of parameters
Defaul
t value
Modify
P11.00
Phase loss
protection
0x00~0x11
LED ones:
0: Input phase loss software protection disable
1: Input phase loss software protection enable
LED tens:
0: Output phase loss protection disable
1: Output phase loss protection enable
LED hundreds:
0: Input phase loss hardware protection disable
1: Input phase loss hardware protection enable
0x10
○
P11.01
Frequency-
decreasing
at sudden
power loss
0: Enabled
1: Disabled
0
○
P11.02
Frequency
decreasing
ratio at
sudden
power loss
Setting range: 0.00Hz/s~P00.03 (the Max.
frequency)
After the power loss of the grid, the bus
voltage drops to the sudden
frequency-decreasing point, the inverter begin
to decrease the running frequency at P11.02,
to make the inverter generate power again.
The returning power can maintain the bus
voltage to ensure a rated running of the
inverter until the recovery of power.
Voltage degree
220V
380V
660V
Frequency-decrea
sing point at
sudden power loss
260V
460V
800V
Note: 1. Adjust the parameter properly to
avoid the stopping caused by inverter
protection during the switching of the grid.
2. Prohibit the input phase loss protection to
enable this function.
10.00
Hz/s
○
P11.03
Overvoltage
stall
protection
0:Disabled
1:Enabled
1
○
P11.04
Overvoltage
stall voltage
protection
120~150%(standard bus voltage)(380V)
136%
○
120~150%(standard bus voltage)(220V)
120%
P11.05
Current
limit action
The actual increasing ratio is less than the ratio
of output frequency because of the big load
0x01
◎
