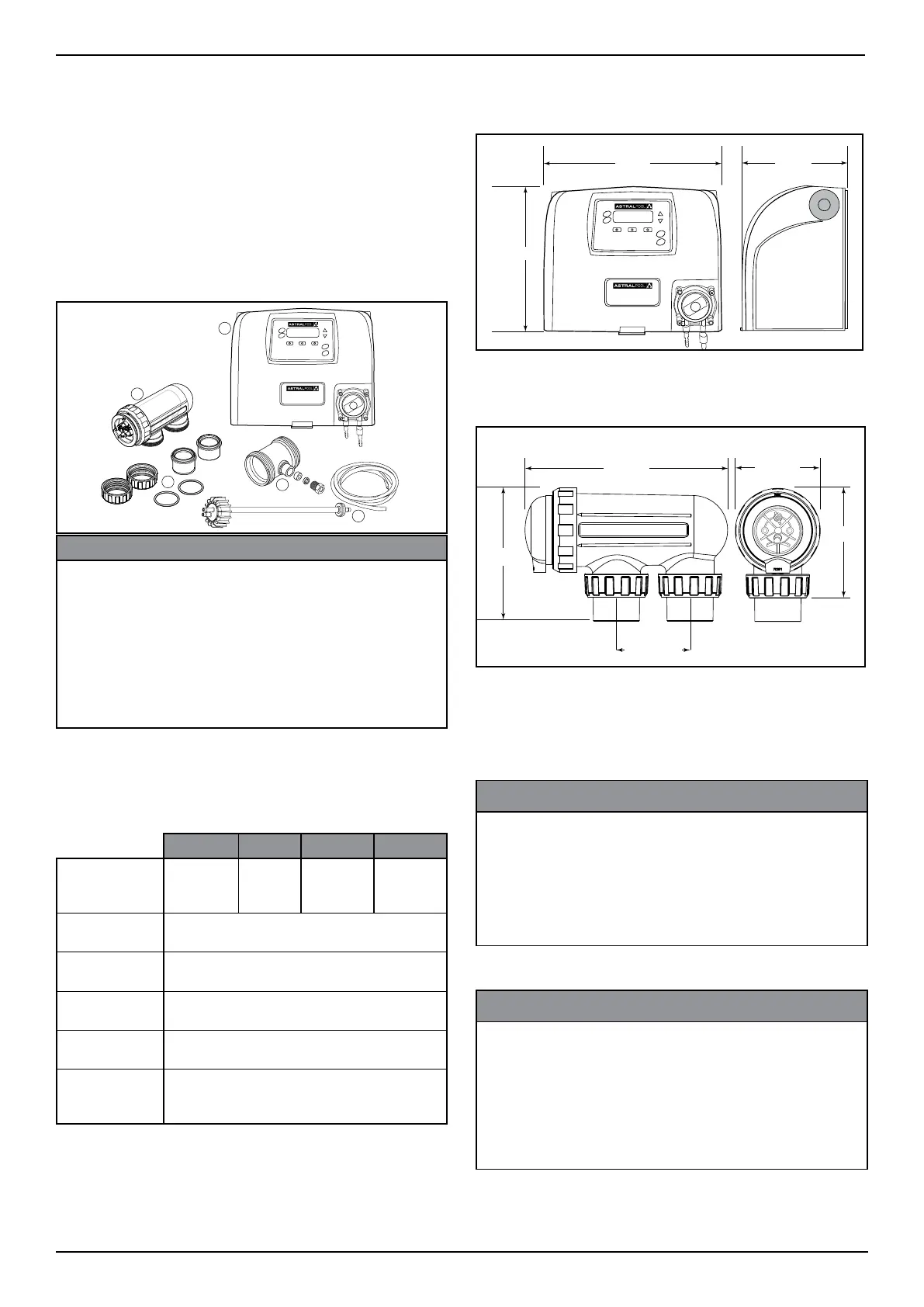

Section 2. System Overview
2.1 Contents
Before starting, check that you have the correct
parts as indicated in Table 1. If any parts are
missing or incorrect, please call your local
distributor or technical support at 1300 186 875 for
assistance.
2.2 Viron eQ Salt Chlorinator System
Timer
Clock
Pool
Mode
Spa
Mode
Viron eQuilibrium
a
d
e
f
g
EQ18/EQ25/EQ35/EQ45 Salt Chlorinator
a. eQ Controller
b. Wall Mount Bracket (not shown)
c. Wall Mount Screws (x2) (not shown)
d. Electrolytic Cell and Electrodes
e. Unions, 50mm Glue on Adapters, O-rings (x2)
f. 50mm Injection Mixing Cell
g. PVC Tube Acid Drum Connection/Venting Kit
Table 1. Viron eQ Salt Chlorinator System Contents
2.3 Specifications
2.3.1 Viron eQ Salt Chlorinator System
EQ18 EQ25 EQ35 EQ45
Nominal
chlorine
production
18 g/h 25 g/h 35 g/h 45 g/h
Required salt
level
4000 ppm
Power supply
voltage
240 VAC - 50 Hz
Protection
index
IP43
Flow through
the cell
80 - 300 Lpm*
Operating
water
temperature
10°C - 40°C
*If over 300LPM a bypass manifold will need to be
installed).
Table 2. eQ Salt Chlorinator System Specifications
2.4 Dimensions
2.4.1 Controller
35 cm
20 cm
29 cm
Timer
Clock
Pool
Mode
Spa
Mode
Viron eQuilibrium
Figure 1. Controller Dimensions
2.4.2 Cell
29 cm 12.5 cm
10.76 cm
17 cm
19.45 cm
Figure 2. Electrolytic Cell Dimensions
2.5 Materials and Tools
2.5.1 Controller
Tools Needed for Installation
• Power Drill
• 7 mm Drill Bit - Hammer Drill Bit
(only necessary to drill into brick or concrete)
• Pencil or Marking Pen
• Pozidriv Screwdriver
2.5.2 Cell
Tools Needed for Installation
• PVC Cutter
• PVC Cement
• Pencil or Marking Pen
• Check Valve
• 50 mm PVC Pipe (40mm optional needs reducers )
