Viron eQ Salt Chlorinator With Bluetooth | Installation and Operation Manual
Page 8
Section 4. Install Controller
The controller should be located at or near the
equipment pad, at least 3.5 m or more away
from the inside wall of the pool/spa, 1.5 m off the
ground, and within 1.5 m of the cell. All national,
state, and local codes are applicable.
4.1 Mount the Bracket
1. Determine the controller location.
2. Use the enclosed bracket to mark the
mounting surface through the screw holes.
3. Drill surface with 7 mm bit.
4. Install the included wall anchors.
5. Hang bracket using the included screws.
6. Hang the controller on the wall bracket and
slide down to secure in place.
Marker

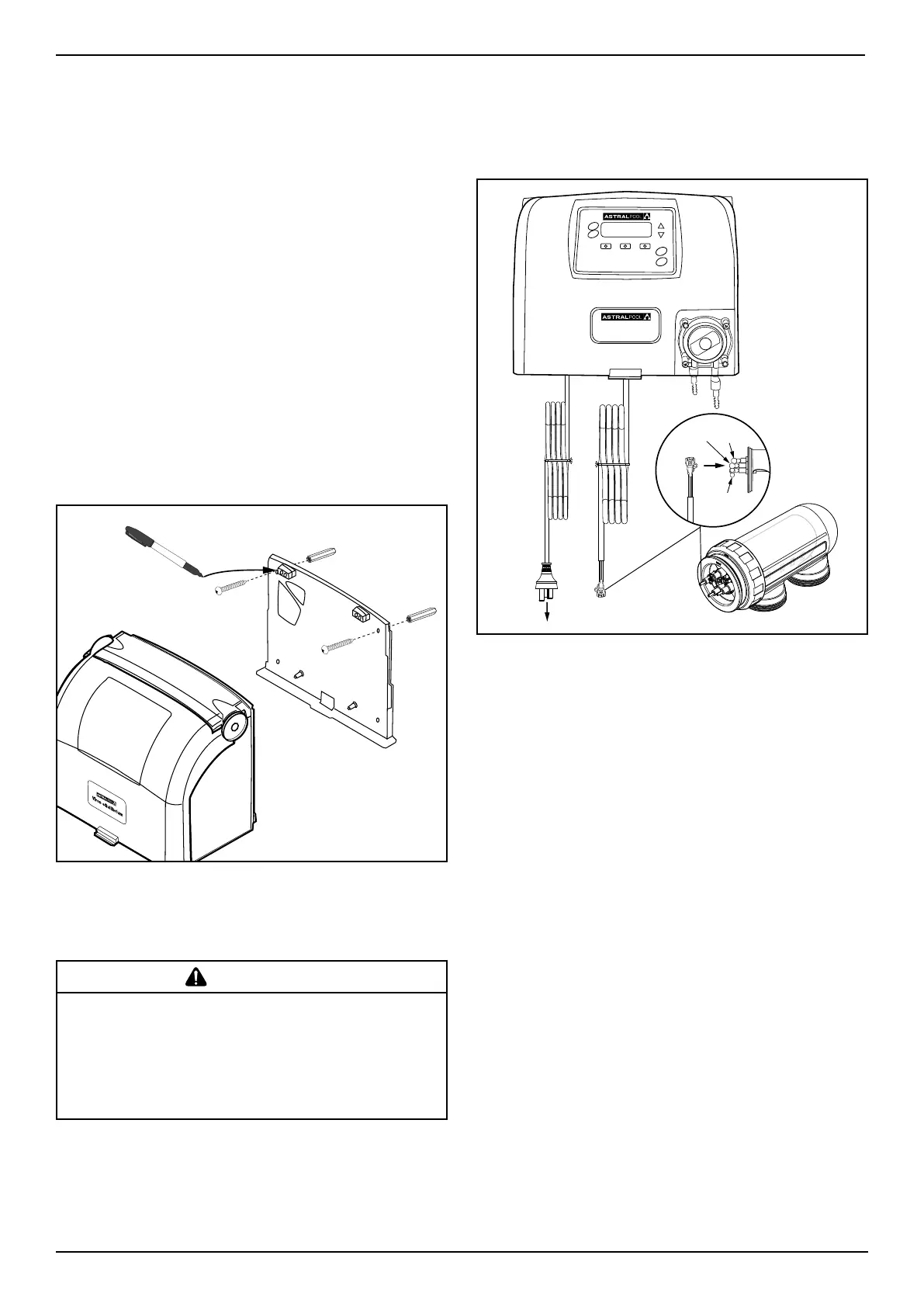

Figure 5. Viron eQ Salt Chlorinator Mount
4.2 Electrical Connections
WARNING
FOR YOUR SAFETY: This product must be serviced by a
professional pool/spa service technician as described on the front
cover of this manual. The procedures in this manual must be
followed exactly. Failure to follow warning notices and instructions
may result in property damage, serious injury, or death. Improper
installation and/or operation will void the warranty.
The Viron eQ Salt Chlorinator must be permanently
powered by connection to a 30 mA residential
circuit breaker.
A non-replaceable backup power source is
incorporated to maintain time-setting memory in
the event of a short, infrequent power interruption.
4.2.1 Controller and Chlorinator Cell Wiring
Timer
Clock
Pool
Mode
Spa
Mode
Viron eQuilibrium
Chlorinator
Cell
Cable
Power
Cord
Blue
Red
(2)
Green
Figure 6. Chlorinator Cell Cable Connections
1. Connect the Chlorinator Cell Cable to the
appropriate ports on the cell.
2. Connect the Viron eQ Salt Chlorinator to the
power source.
3. Connect the pH sensor into “pH” location at
the underside of the Viron eQ Salt Chlorinator.
Then remove the cap from pH sensor and
screw firmly into the plumbed sensor chamber.
DO NOT OVERTIGHTEN.
4. Connect the filter pump 3-pin connector to the
Viron EQ Salt Chlorinator.
To Next Page
