Chapter 2: Hardware information

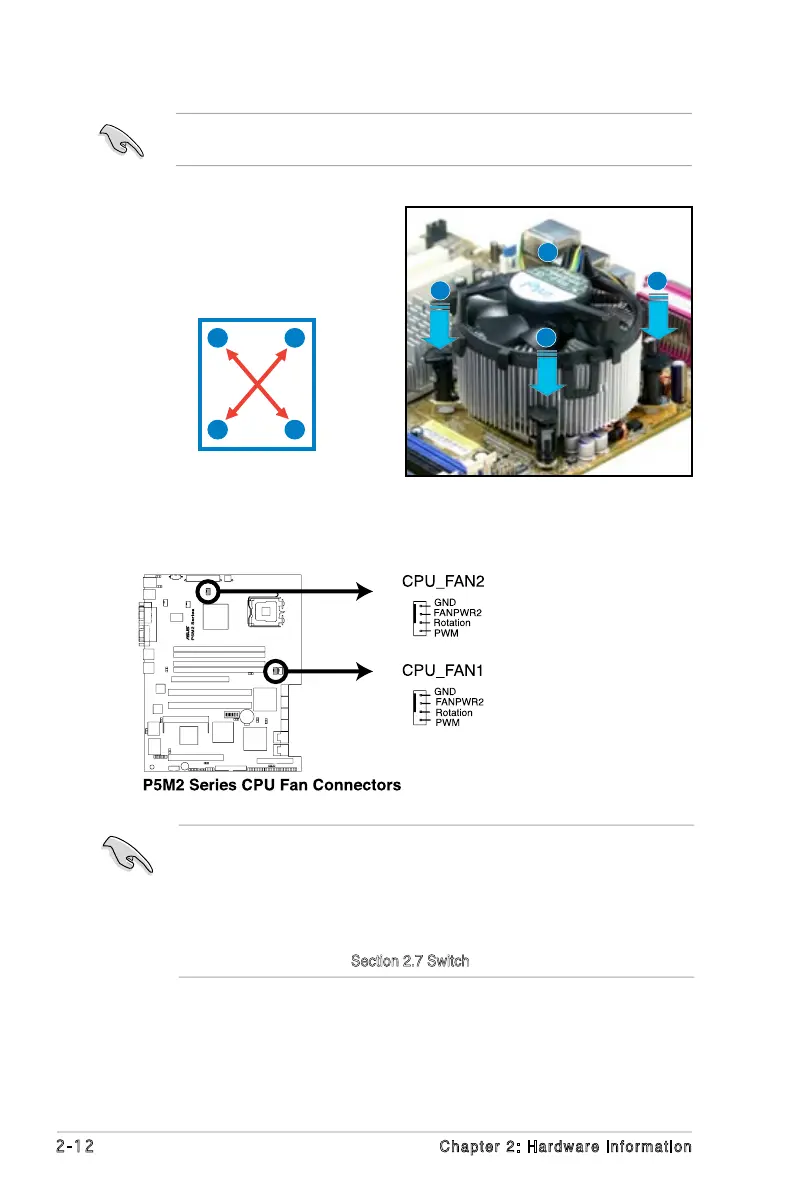

3. Connect the CPU fan cable to the connector on the motherboard labeled
CPU_FAN1/CPU_FAN2.
2. Push down two fasteners at a time in
a diagonal sequence to secure the
heatsink and fan assembly in place.
B
B
A
A
A
B
B
A
•
Do not forget to connect the CPU fan connector! Hardware monitoring
errors can occur if you fail to plug this connector.
• If there is only one CPU fan cable, connect it to the connector labeled
CPU_FAN1.
•
Before installing the CPU heatsink, make sure that the DIP switch is
properly set. Refer to Section 2.7 Switch for more information.
Make sure to orient each fastener with the narrow end of the groove pointing
outward. (The photo shows the groove shaded for emphasis.)
