Chapter 2: Hardware information

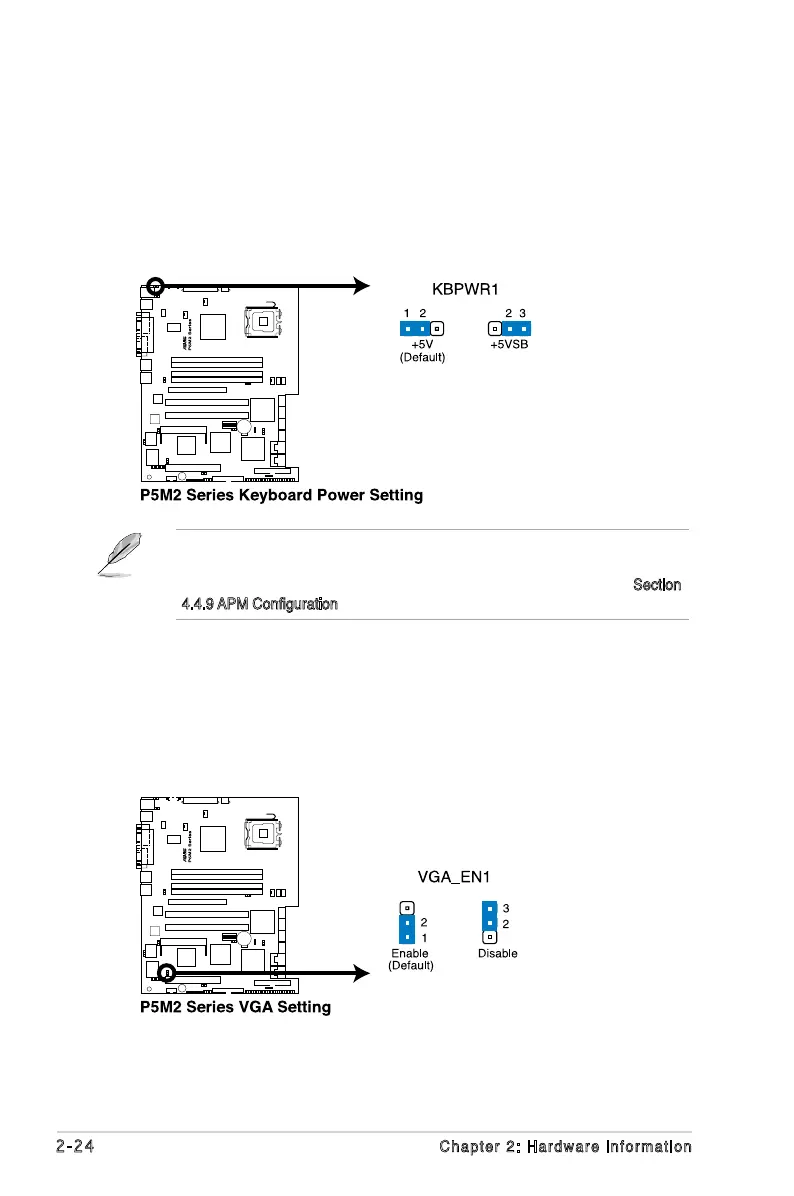

3. Key boa rd/ Mou se pow er (3- pin KB PWR 1)
This jumper allows you to enable or disable the keyboard/mouse wake-up
feature. Set this jumper to pins 2-3 (+5VSB) to wake up the computer when
you press a key on the keyboard (the default is the Space Bar) or use the
mouse. This feature requires an ATX power supply that can supply at least 1A
on the +5VSB lead, and a corresponding setting in the BIOS.
4.
VGA con tro lle r s ett ing (3 -pi n V GA_ EN1 )
These jumpers allow you to enable or disable the onboard ATI
®
ES1000 PCI
VGA controller. Set to pins 1-2 to activate the VGA feature.
If you want to power the system on by PS/2 keyboard or mouse, set the jumper
KSPWR1 to pin2-3(+5VSB) and enable the option of “Power on By PS/2
Keyboard” or “Power On By PS/2 Mouse” in the BIOS setting. Refer to Section
4.4.9 APM Conguration.
