2-28
Chapter 2: Hardware information
2.8 Connectors

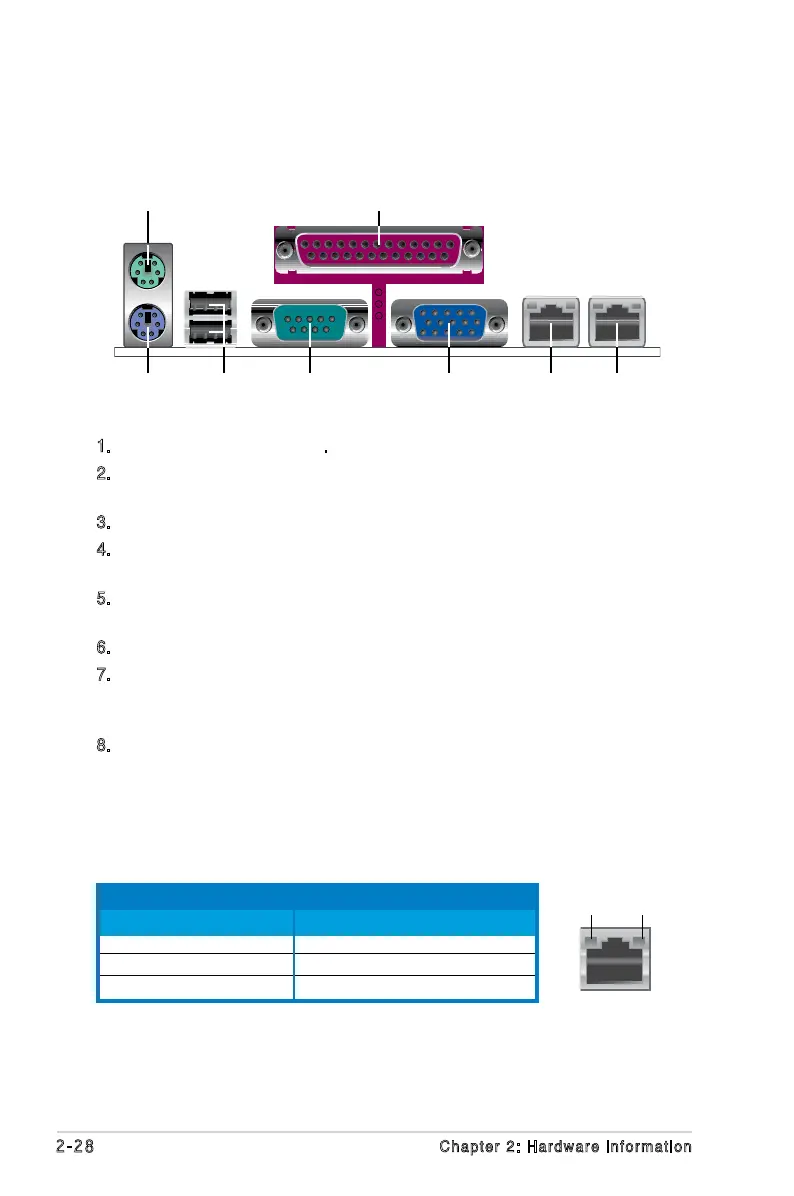

2.8.1 Rear panel connectors
AC T/ LIN K L ED S PEE D LED
St at us De scr ip tio n Sta tus De sc rip ti o n
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LA N p ort LE D i ndi cat ion s
LA N por t
SP EE D
LE D
AC T/ LIN K
LE D
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. PS/2 keyboard port (purple). This port is for a PS/2 keyboard.
4. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports
are available for connecting USB 2.0 devices.
5. Serial (COM1) port. This 9-pin communication port is for pointing devices or
other serial devices.
6. VGA port. This port is for a VGA monitor or other VGA-compatible devices.
7. Gigabit LAN1 (RJ-45) port. This ports allow Gigabit connection to a Local
Area Network (LAN) through a network hub. Refer to the table below for the
LAN port LED indications.
8. Gigabit LAN2 (RJ-45) port. This ports allow Gigabit connection to a Local
Area Network (LAN) through a network hub. Refer to the table below for the
LAN port LED indications.
