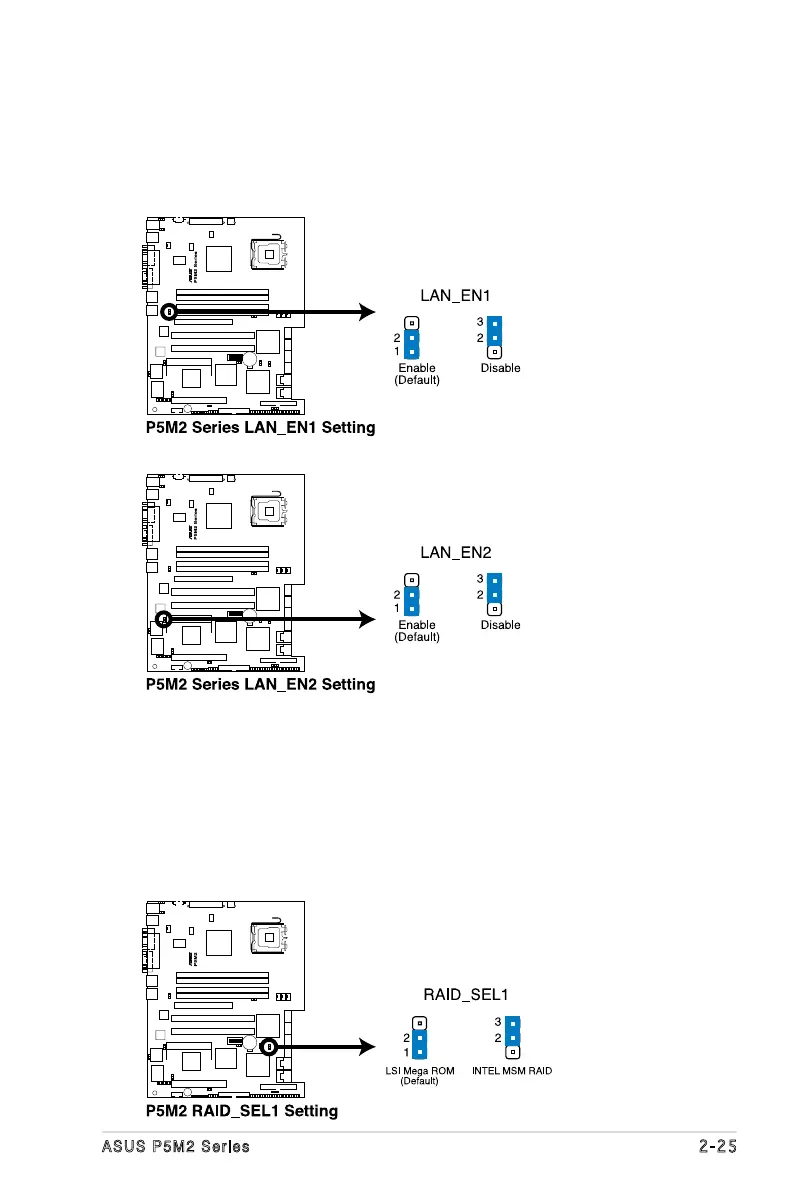

5. Gig abi t L AN con tro lle r s ett ing (3 -pi n L AN_ EN1 , L AN_ EN2 )
These jumpers allow you to enable or disable the onboard Broadcom
®
BCM5721 Gigabit LAN1 or LAN2 controller. Set to pins 1-2 to activate the
Gigabit LAN controller.
6.
Int el
®
82 801 GR (IC H7R ) S ATA RAI D s ele cti on
(3- pin RA ID_ SEL 1) (Fo r P 5M2 mo del on ly)
This jumper allows you to select the RAID conguration utility to use when you
create disk arrays. Place the jumper caps over pins 1-2 if you want to use the LSI
Logic Embedded SATA RAID Setup Utility (default); otherwise, place the
jumper caps to pins 2-3 to use the Intel
®
Matrix Storage Manager.
