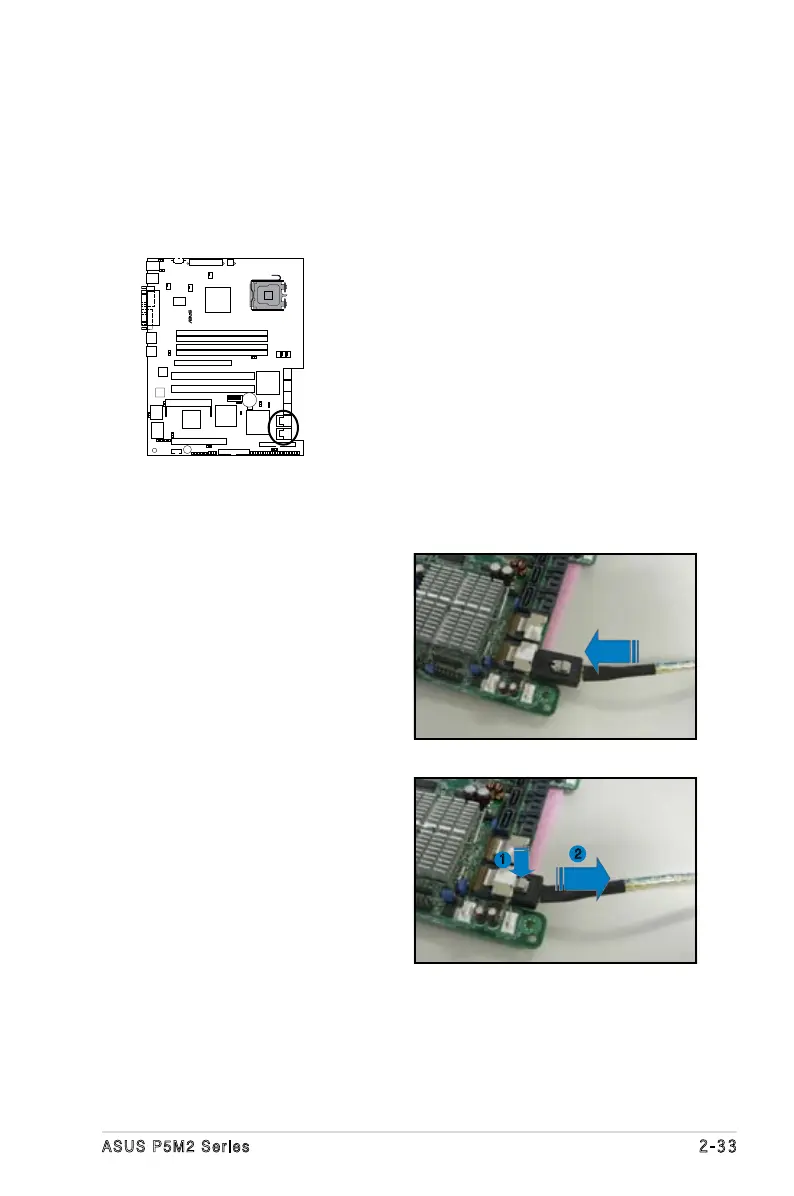

8. Min i-S AS con nec tor s
(Fo r P5M 2/S AS mo del only )
This motherboard comes with two Serial Attached SCSI (SAS) connectors,
the next-generation storage technology that supports both Serial Attached
SCSI and Serial ATA. Each connector supports up to four (4) devices.
To connect the mini-SAS cable:
Plug in the mini-SAS cable to the
mini-SAS connector until the cable
lock snaps in place.
To disconnect the mini-SAS cable:
1. With your thumb, push down the
cable lock to release.
2. While still keeping your thumb’s grip
on the cable lock, carefully pull away
the cable from the connector.
1
2
P5M2/SAS
®
P5M2/SAS MINI SAS connectors
