1.6 Internal features

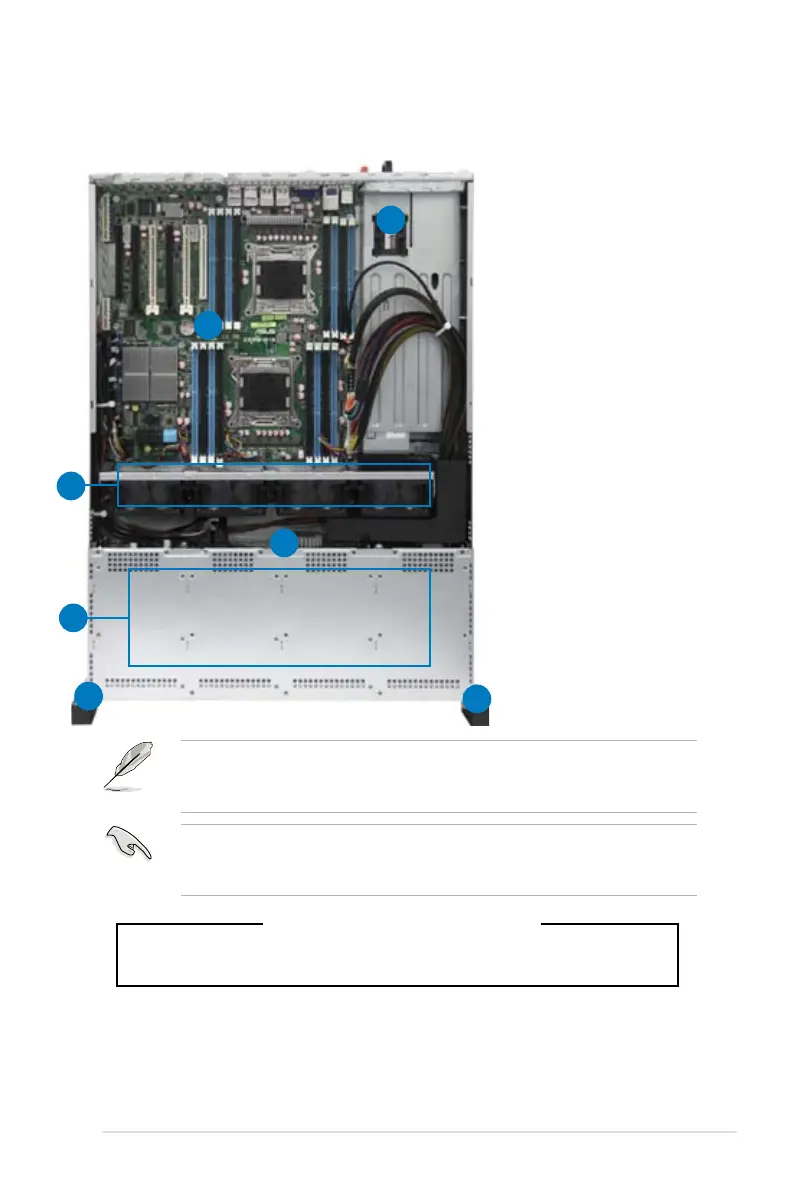

The barebone server includes the basic components as shown.
The barebone server does not include a oppy disk drive. Connect a USB oppy
disk drive to any of the USB ports on the front or rear panel if you need to use a
oppy disk.
*WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
1. Power supply and power
fan
2. ASUS Z9PE-D16 Server
Board
3. System fans
4. SATA/SAS backplane
(hidden)
5. Hot-swap HDD tray 1–
12 (SAS and SATA)
6. Front USB I/O Board
(USB-R20A)
7. Front LED Board (FPB-
R20A)
A protection lm is pre-attached to the front cover before shipping. Please
remove the protection lm before turning on the system for proper heat
dissipation.
