Asus RS720-E7/RS12-E - Serial General Purpose Input;Output Connectors; Serial Port Connectors (10-1 Pin COM1;2)

ASUS RS720-E7/RS12; RS720-E7/RS12-E 4-11

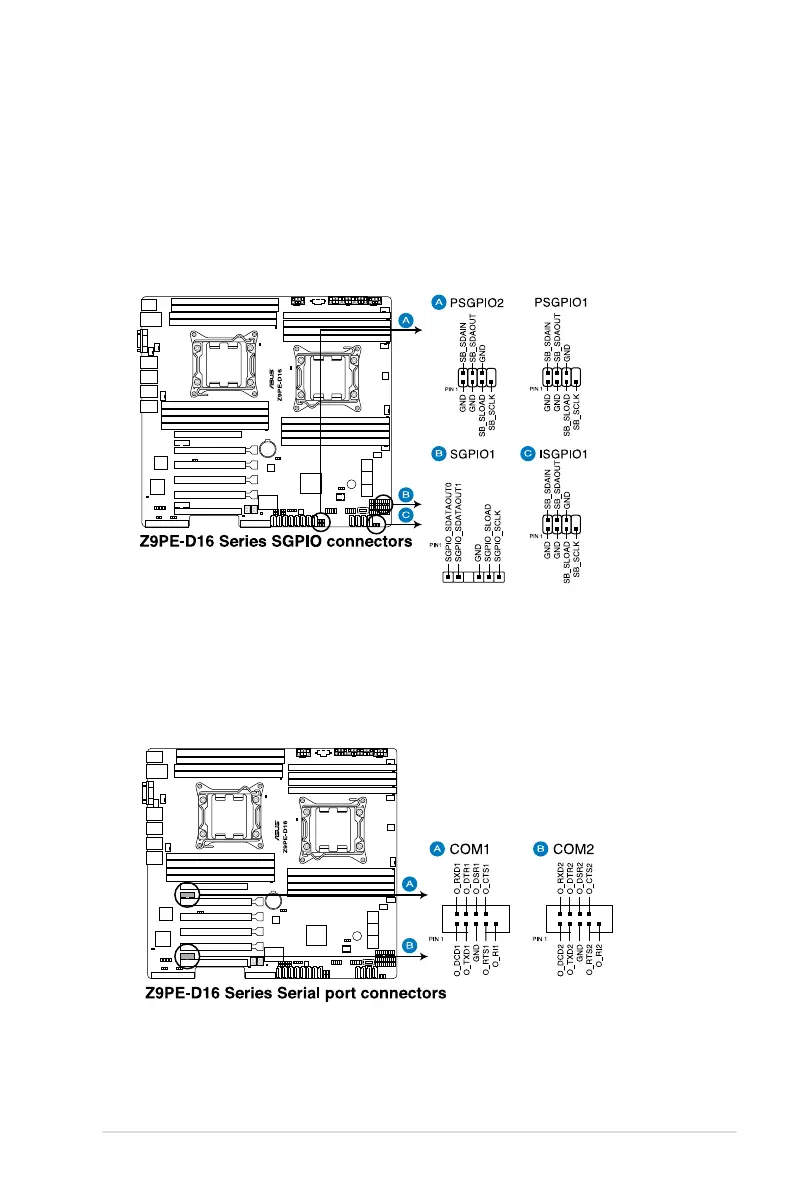

7. Serial General Purpose Input/Output connectors
(8-1 pin PSGPIO 1/2, ISGPIO1, SGPIO1)
The SGPIO 1 connectors are used for the Intel Rapid Storage Technology
Enterprise SGPIO interface that controls the LED pattern generation, device
information and general purpose data.
The PSGPIO 1/2 connectors are used for PIKE card.
8. Serial port connectors (10-1 pin COM1/COM2)
These connectors are for the serial (COM) ports. Connect the serial port
module cable to one of these connectors, then install the module to a slot
opening at the back of the system chassis.
