Asus RS720-E7/RS12-E - LSI Megaraid or Intel Rste Selection Jumper (3-Pin RAID_SEL1); ME Firmware Force Recovery Setting (3-Pin ME_RCVR1)

4-6 Chapter 4: Motherboard information

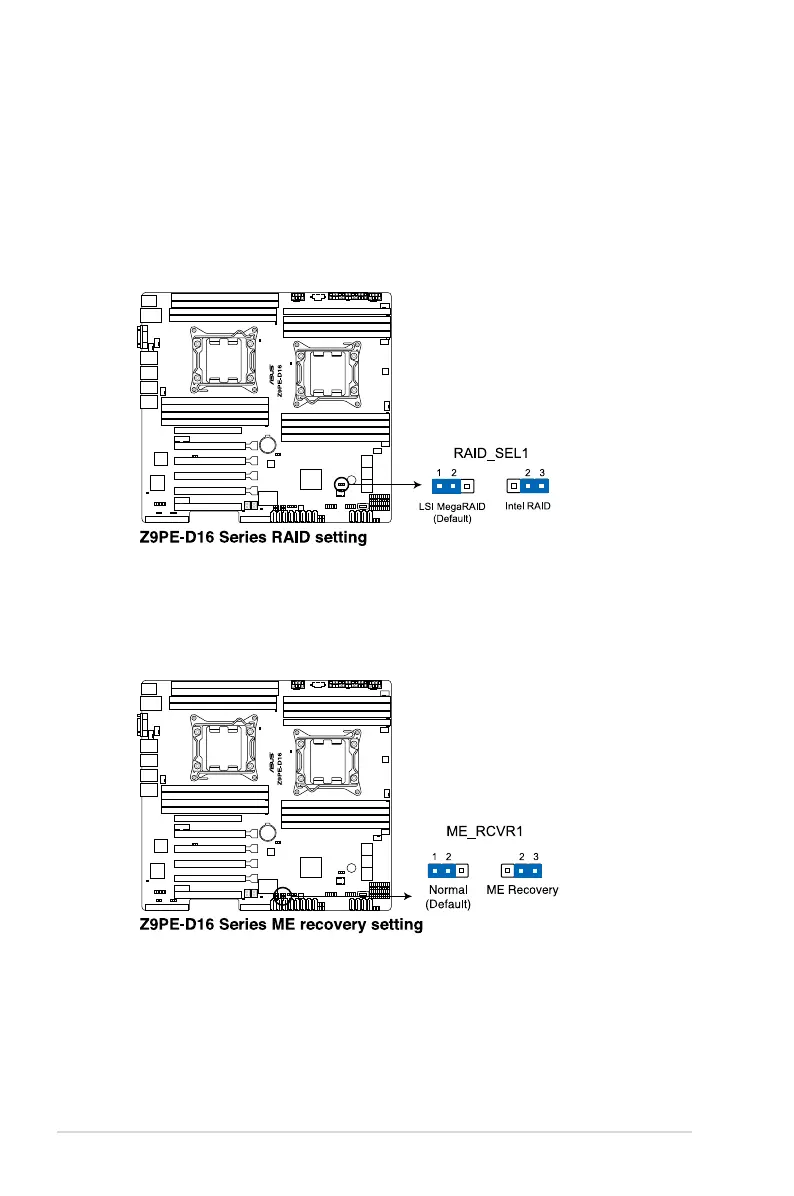

4. LSIMegaRAIDorIntelRSTeselectionjumper(3-pinRAID_SEL1)
This jumper allows you to select the PCH SATA RAID mode to use LSI
MegaRAID software or Intel® Rapid Storage Technology enterprise 3.0 RAID.
Place the jumper caps over pins 1–2 if you want to use the LSI MegaRAID
software RAID Utility (default); otherwise, place the jumper caps to pins 2–3
to use the Intel
®
Rapid Storage Technology Enterprise Option ROM Utility.
5. MErmwareforcerecoverysetting(3-pinME_RCVR1)
This jumper allows you to force Intel Management Engine (ME) boot from
recovery mode when ME become corrupted.
