2-5ASUS RS720-E7/RS12; RS720-E7/RS12-E
I
H

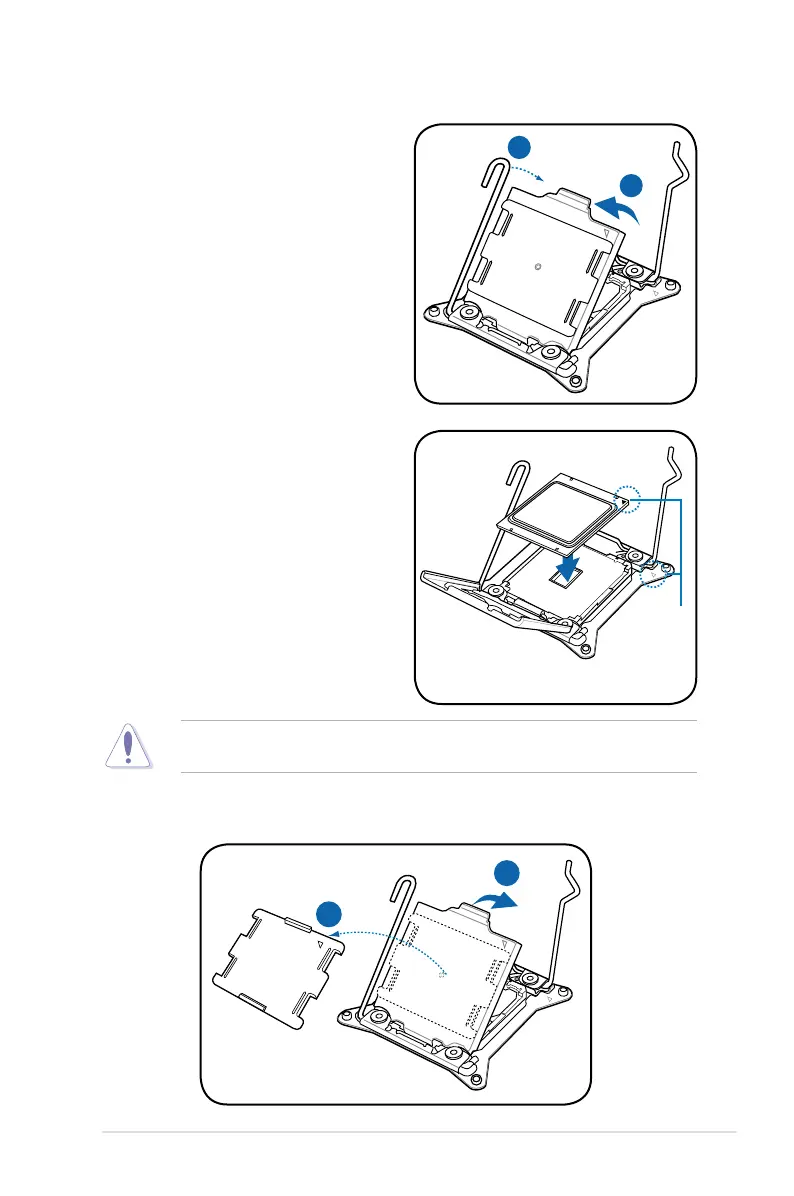

7. Remove the PnP cap (H) from the CPU socket and then close the load plate (I).
G
F
5. Push the left load lever (F) to lift the
load plate (G).
The CPU ts in only one correct orientation. DO NOT force the CPU into the
socket to prevent bending the connectors on the socket and damaging the CPU!
Triangle
mark
6. Position the CPU over the socket,
ensuring that the triangle mark is on
the top-right corner of the socket.
