2-25ASUS RS720-E7/RS12; RS720-E7/RS12-E
5. Insert the LAN cable plug
to the DM_LAN 1 port
(dedicated LAN) or LAN
port 1 (shared LAN) for
server management.
DM_LAN 1
LAN port 1

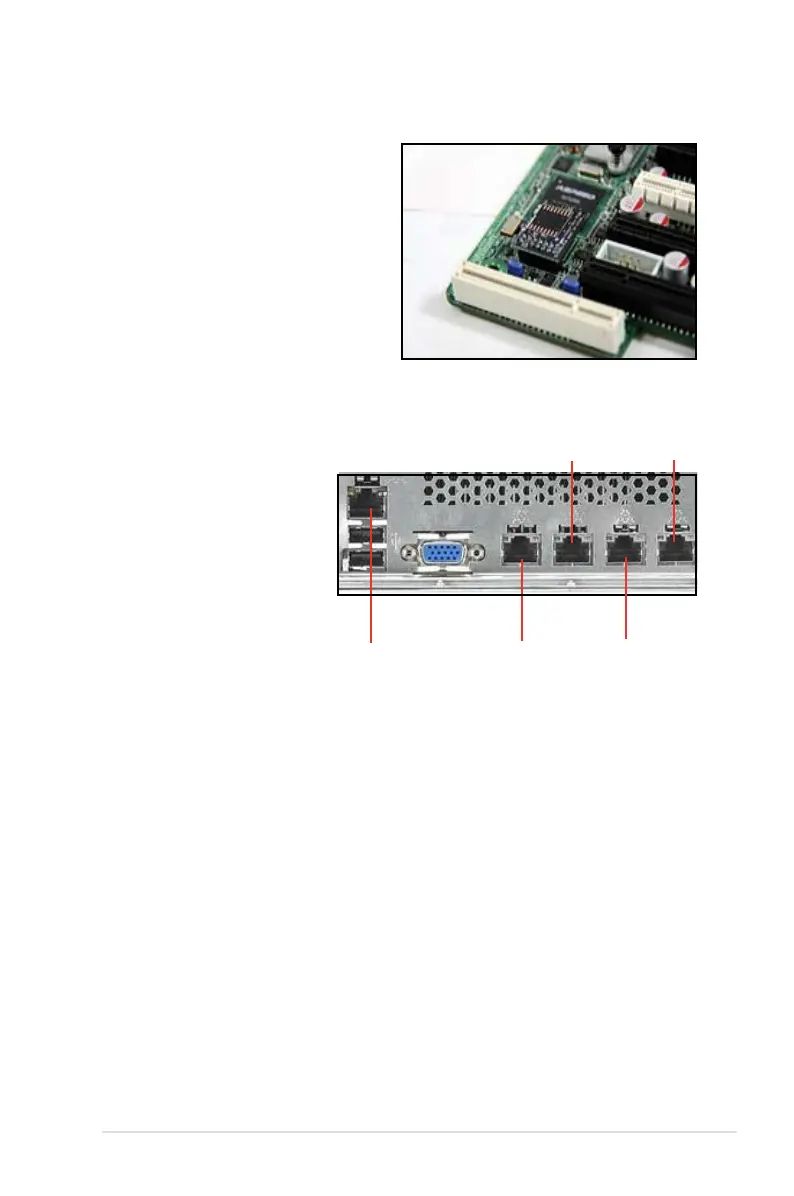

4. When installed, the board appears
as shown.
LAN port 2
LAN port 3
LAN port 4
