2-19
ASUS TS100-E10-PI4

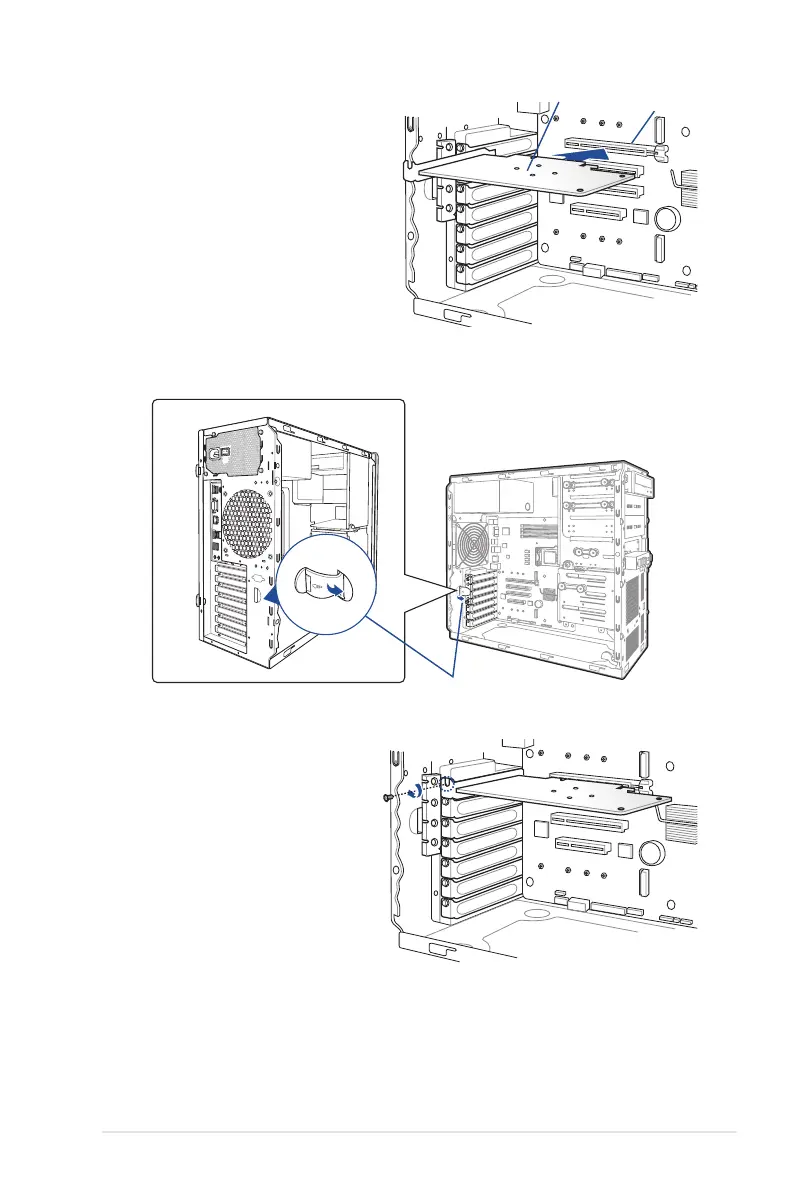

4. Alignandinserttheexpansioncardinto
thePCI-Eslot.
5. LiftthePCI-Elatchinwardsuntilitclicksintoplacesecuringtheexpansioncardtothe
chassis.
6. (Optional)Replacethescrewofthe
metalbracket.
PCI-E slot
Expansion card
PCI-E latch
