2.7.2 Installing ASUS PIKE RAID card

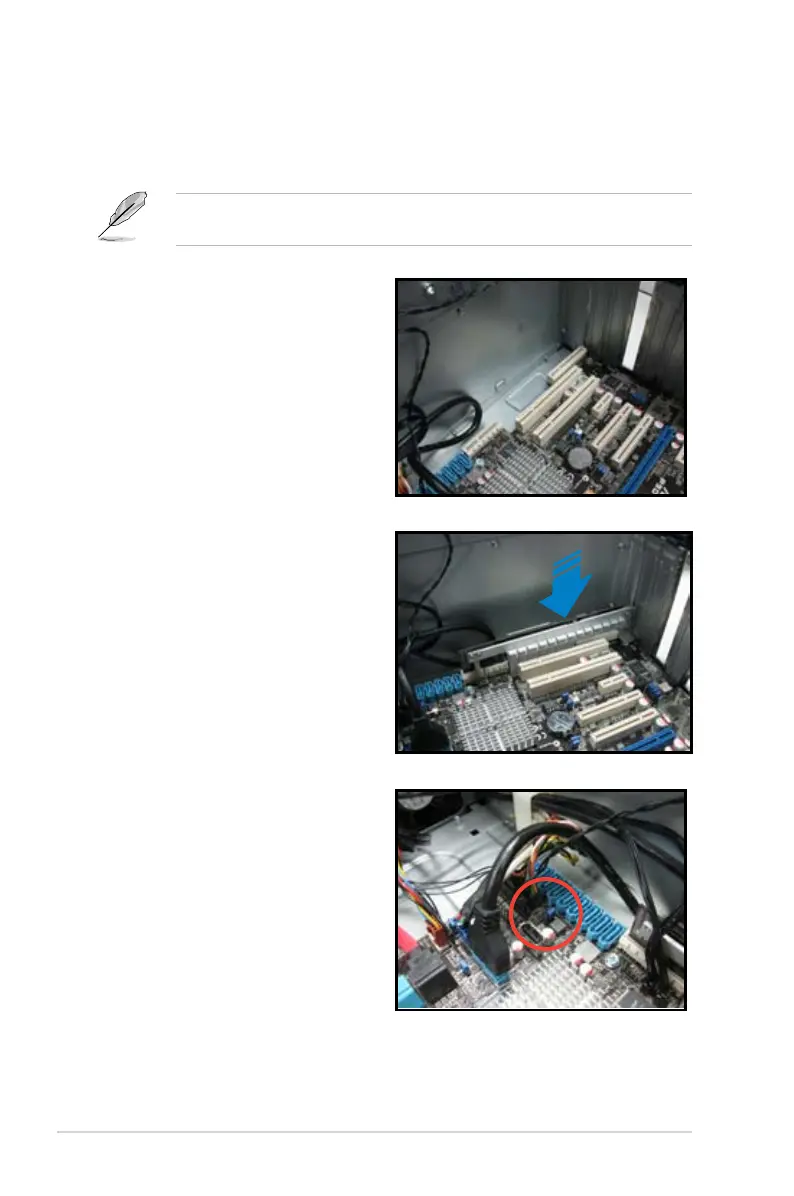

Follow the steps below to install an optional ASUS RAID card on your motherboard.
Move the
SGPIO_SEL1
jumper on the SATA/SAS backplane to 2–3 when
installing the PIKE RAID card.
1. Locate the PIKE RAID card slot on
the motherboard.
2. Align the golden contact points of
the RAID card with the PIKE RAID
card slot. Insert the RAID card into
the slot until it is completely seated
on the slot.
3. Connect the SAS cable to the SAS
connectors on the motherboard.
