Chapter 4: Motherboard information4-12

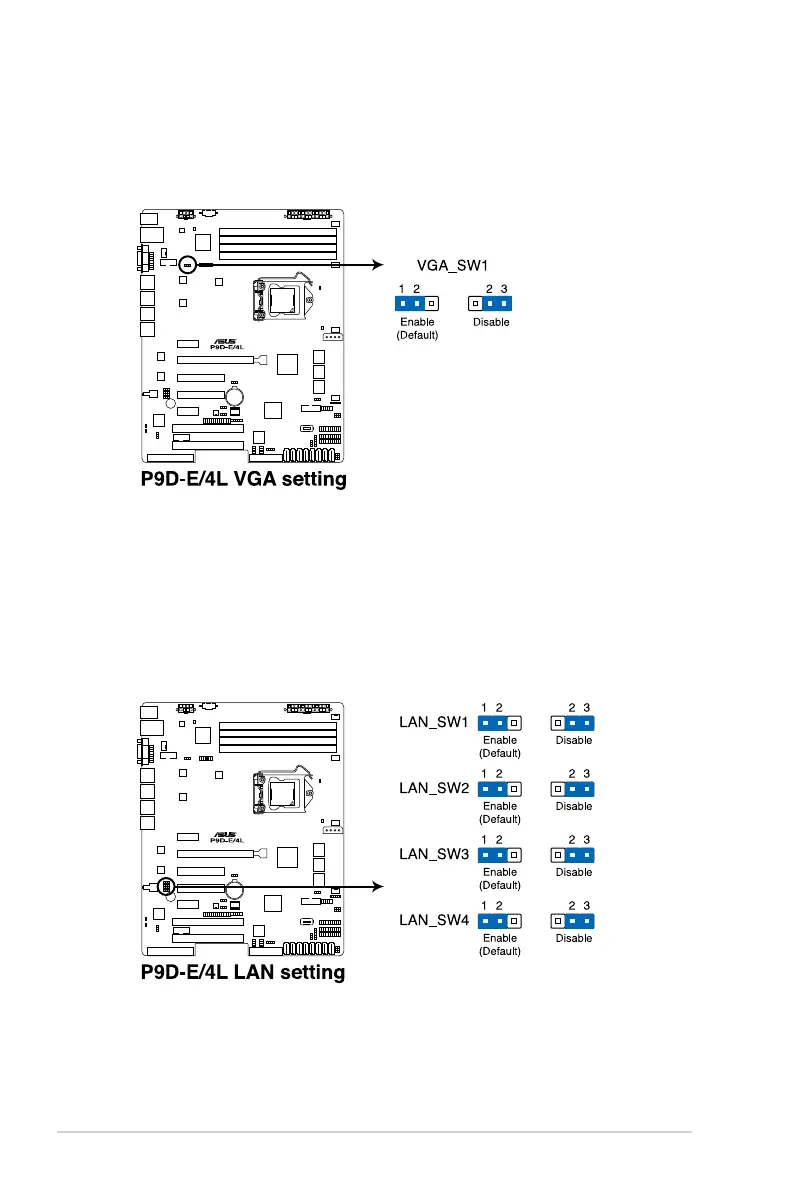

2. VGA controller setting (3-pin VGA_SW1)
This jumper allows you to enable or disable the onboard VGA controller. Set to
pins 1–2 to activate the VGA feature.
3. LAN controller setting (3-pin LAN_SW1, LAN_SW2, LAN_SW3, LAN_
SW4)
These jumpers allow you to enable or disable the onboard Intel
®
I210AT Gigabit
LAN controllers. Set to pins 1-2 to activate the Gigabit LAN feature.
