5. OSD Operation
31
F6: SET

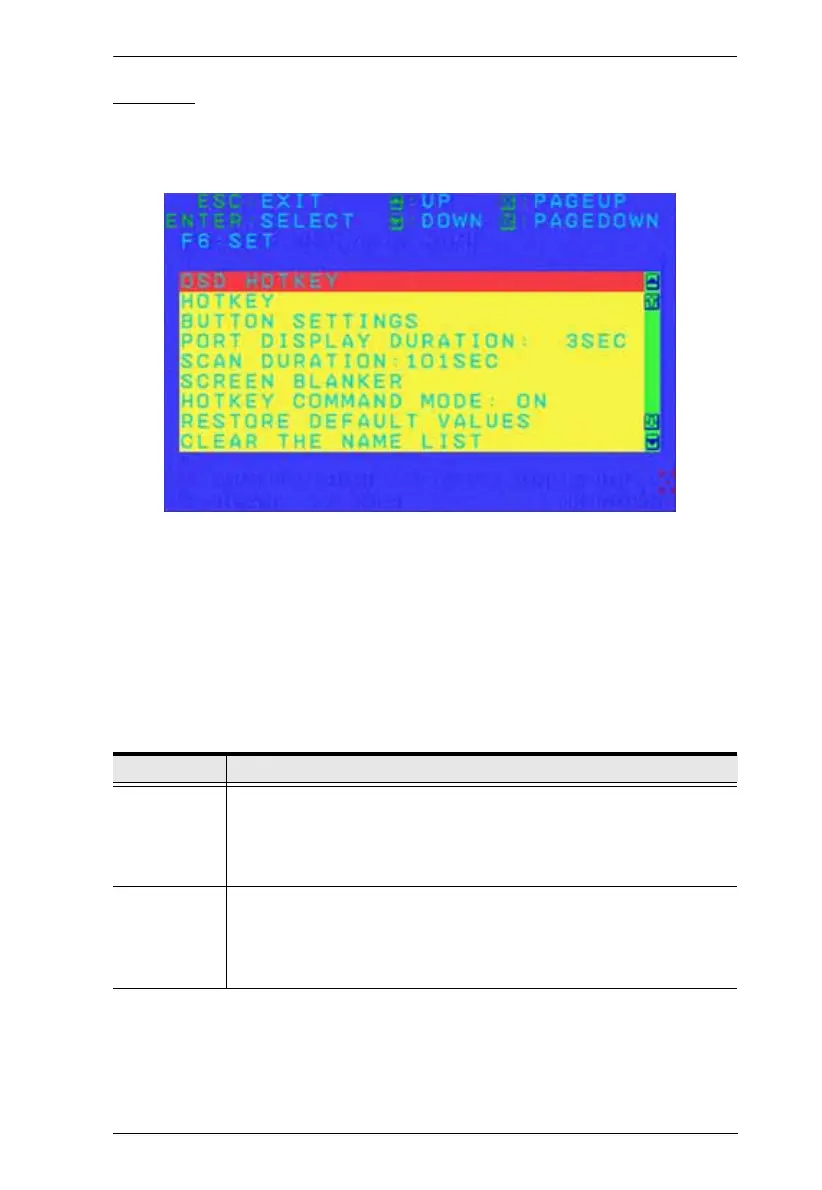

This function allows you to set up your working environment. When you press
[F6] or click on the F6 field, a screen similar to the one below appears:
To change a setting:
1. Double click it; or move the Highlight Bar to it, and press [Enter].
2. After you select an item, a submenu with further choices appears. (Press
[Esc] to return to the previous menu level). To make a selection, either
double click it; or move the Highlight Bar to it, and press [Enter]. An icon
appears before the selected choice to indicate which one it is. The settings
are explained in the following table:
(Continues on next page.)
Setting Function
OSD
HOTKEY
Selects which Hotkey activates the OSD function:
[Scroll Lock] [Scroll Lock] or [Ctrl] [Ctrl].
Since the Ctrl key combination may conflict with programs running on
the computers, the default is the Scroll Lock combination.
HOTKEY Selects which Hotkey activates the Hotkey function (for keyboard port
operation. See Chapter 4: Keyboard Port Operation):
[Num Lock] + [-] or [Ctrl] + [F12]
[Num Lock] + [-] is the default setting.
