ATEN CS1734B User Manual

37
Chapter 7
The Firmware Upgrade Utility
The Windows-based Firmware Upgrade Utility (FWUpgrade.exe) provides a
smooth, automated process for upgrading the KVM switch’s firmware.
The Utility comes as part of a Firmware Upgrade Package that is specific for
each device. New firmware upgrade packages are posted on our web site as
new firmware revisions become available.
http://www.aten.com
Before you Begin
1. From a computer that is not part of the KVM installation go to our Internet
support site and choose the model name of your device (CS1732
B /
CS1734
B) to get a list of available Firmware Upgrade Packages.
2. Choose the Firmware Upgrade Package you want to install (usually the
most recent), and download it to your computer.

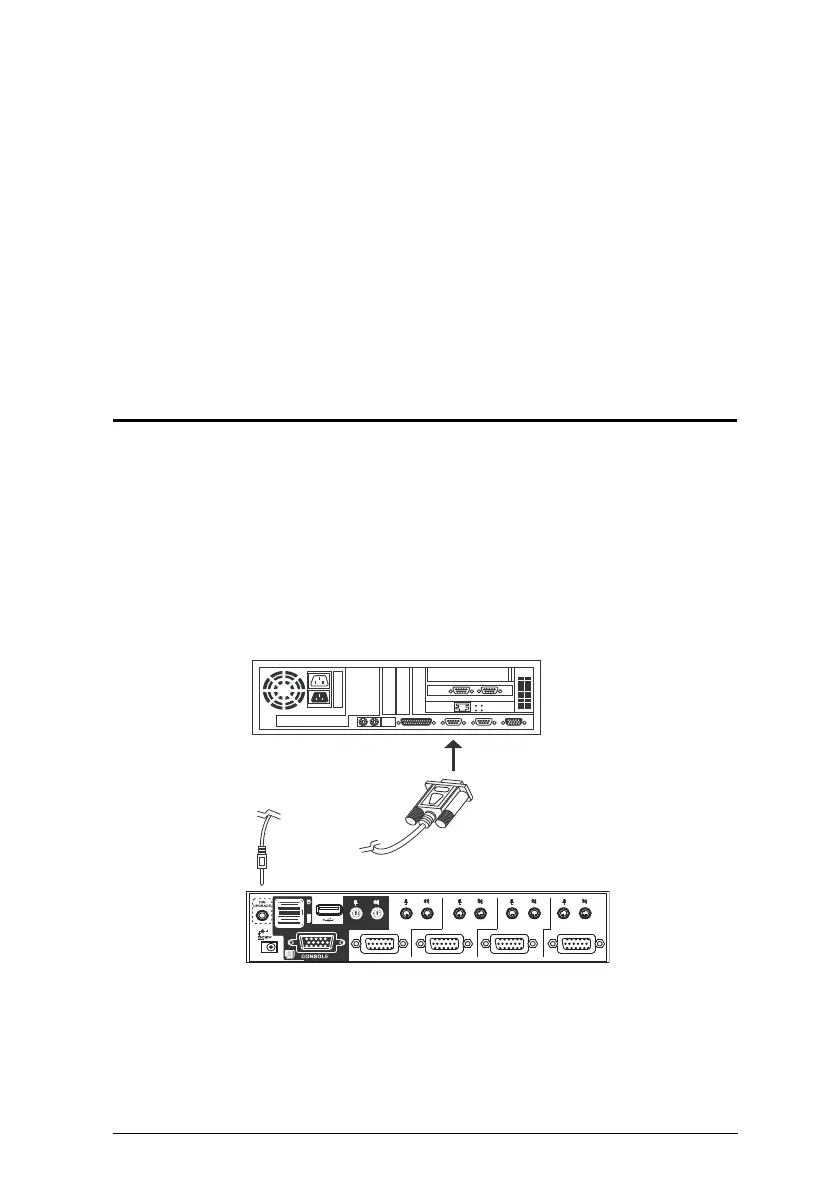

3. Use the Firmware Upgrade Cable provided to connect a COM port on
your computer to the Firmware Upgrade Port of your switch.
4. Shut down the computers on your CS1732
B / CS1734B installation.
5. Invoke Firmware Upgrade Mode (see FIRMWARE UPGRADE, page 33).
The front panel LEDs flash together to indicate Firmware Upgrade Mode
is in effect.
USB 2.0
CPU 4
CPU 1
CPU 2
CPU 3

ATEN CS1734B Specifications

General

HD type	2K Ultra HD
Scan interval	1, 3, 4, 5, 8, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 99, 100, 240, 250, 255 s
Video bandwidth	60 Hz
Maximum resolution	2048 x 1536 pixels
Firmware upgradeable	Yes
Headphone outputs	5
USB connector type	USB Type-A
Number of computers controlled	4
Product color	Black, Grey
LED indicators	Activity, USB
Housing material	Metal
Wired remote switch	No
Power source	DC
Output voltage	5.3 V
Power consumption (typical)	3.4 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 80 %
Harmonized System (HS) code	85176200

Weight and Dimensions

Depth	88 mm
Width	210 mm
Height	55.5 mm
Weight	780 g
