Atlantic Alfea Evolution 5 - Page 9

1.4 Description
13
1
2
12 1110
9
8
7
6
5
3
13
1
2
12 1110
9
8
7
6
5
4
3
13
1
2
12 1110
9
8
7
6
5
4
3

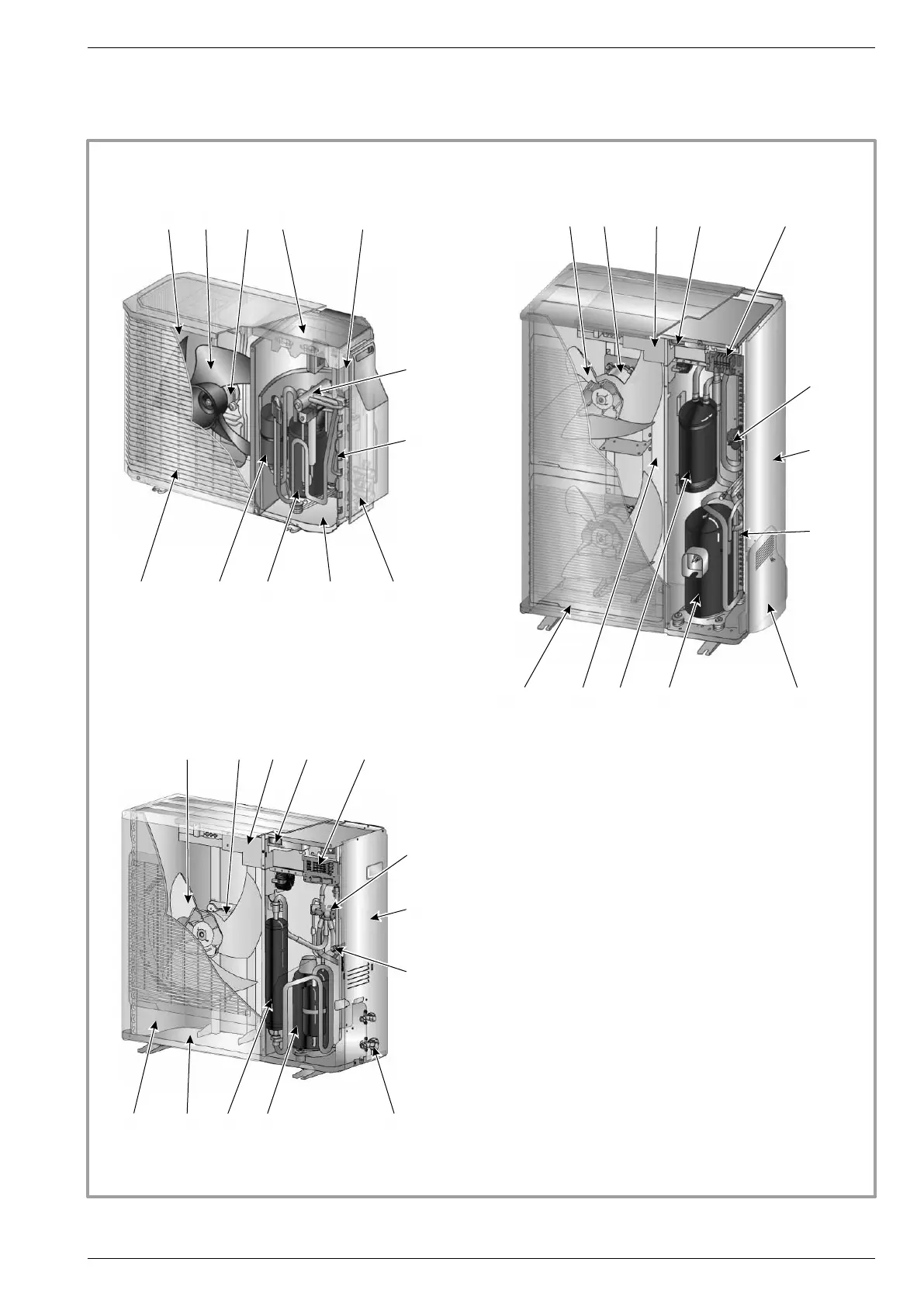

Legend:
1 - Low-noise, high-output propeller fan.
2 - Electric variable speed "inverter" motor.
3 - "Inverter" control module.
4 - Vacuum start (pump down) and control light
5 - Connection terminal blocks
(power and interconnection).
6 - Refrigerant accumulator bottle.
7 - Cycle reversing valve.
8 - Anti-corrosion treated bodywork.
9 - Electronic expansion valve.
10 - Noise and temperature insulated "inverter"
compressor with liquid injection port.
11 - Refrigeration connection valves
(ared connectors) with protective caps.
12 - Holding tank with condensate drain hole.
13 - High-performance exchange surface evaporator;
anti-corrosion treated hydrophilic aluminium ns
and grooved copper tubes.
" Model Evolution 5, Evolution 6, Evolution 8 " Model Evolution 13, Evolution 16
" Model Evolution 10
gure 7 - Outdoor unit components
Installation and operation manual "1397 - EN" - 9 -
Heat pump split single service alféa Evolution
