Atlantic CHAUFFEO - Fitting the Water Heater; Vertical Wall-Mounted Water Heater

EN
37
EN

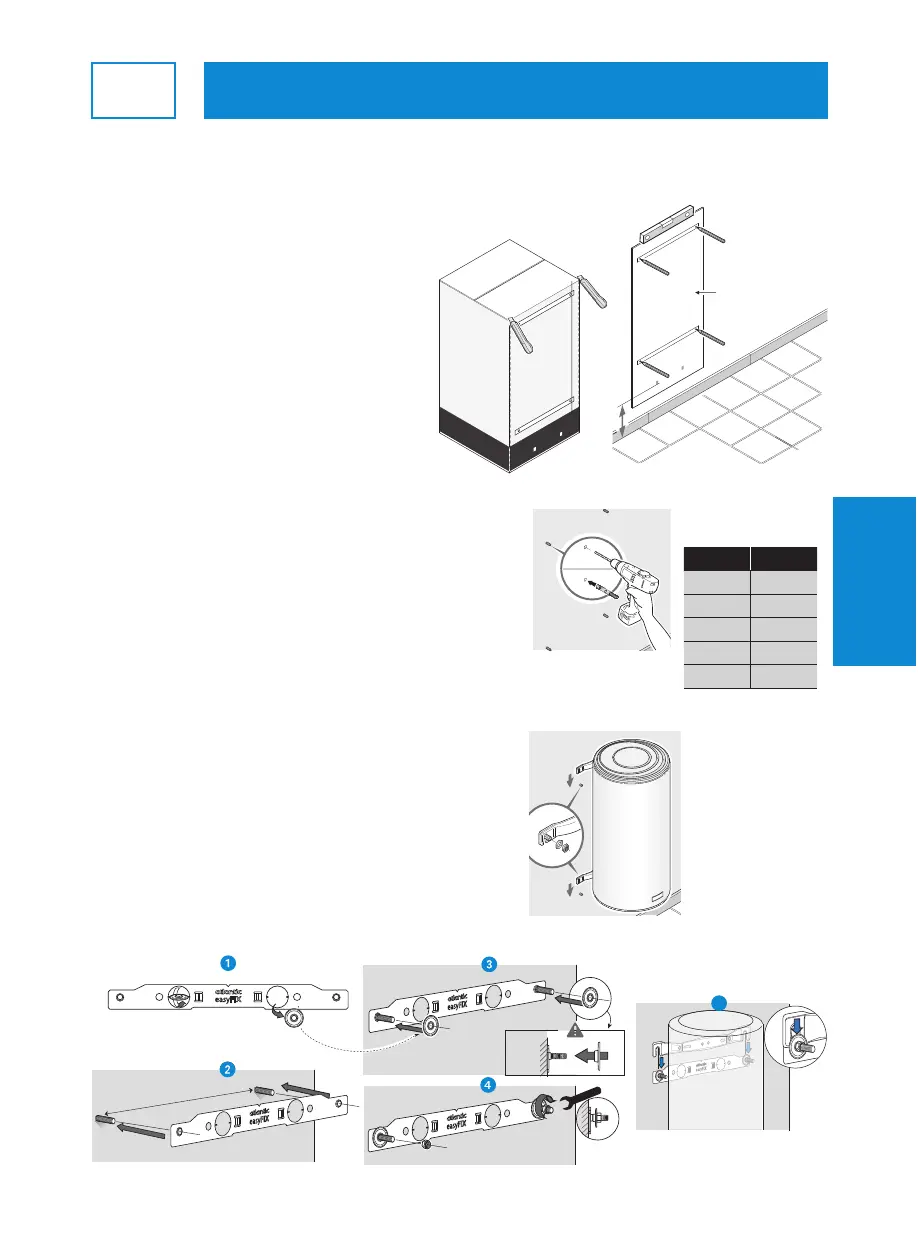

3. How to install my water heater?
3.1 Vertical wall-mounted water heater
u Cut the template printed on the cardboard
and use it to make the markings
v Drill then plug using (Ø) 10 mm mini
mum diameter mountings suitable for your wall
(plasterboard, concrete, brick).
Warning: your wall must be able to bear the weight
of the full water heater.
If it cannot, use a tripod (see section dedicated to tting
on a tripod) .
w Once your water heater or easyFIX is in place, x it on
rmly
on
Installation
template
Gabarit de pose
45 cm
minimum
(Sur carton d'emballage)
Gabarit de pose
45 cm
minimum
(Sur cartond'emballage)
Poids indicatif
du chauffe-eau
rempli
Capacité Poids
50 L 75 kg
75 L 100 kg
100 L 150 kg
150 L 200 kg
200 L 250 kg
Gabarit de pose
45 cm
minimum
(Sur carton d'emballage)
Gabarit de pose
45 cm
minimum
(Sur cartond'emballage)
Approximate weight
of full water heater
Capacity Weight
50 L 75 kg
75 L 100 kg
100 L 150 kg
150 L 200 kg
200 L 250 kg
Gabarit de pose
45 cm
minimum
(Sur car ton d'emballage)
Gabarit de pose
45 cm
minimum
(Sur cartond'emballage)
Poids indicatif
du chauffe-eau
rempli
Capacité Poids
50 L 75 kg
75 L 100 kg
100 L 150 kg
150 L 200 kg
200 L 250 kg
Installation Manual: Fitting the water heater
With easyFIX for Steatite vertical wall-mounted models 75 L to 200 L.
Without easyFIX
OK
440 mm
M10
5
Tightening torque : 29Nm max.
