2. Where to install my water heater?
2.1 Precautions
 •Chooseaplaceofinstallationwhosetemperatureisalwaysbetween4°Cand35°C.
 •The waterheatermustbepositionedascloseas possibletothemajordraw-offpoints (bathroom,
kitchen, etc.)
 •Ifitispositionedoutsidethelivingarea(cellar,garage),thepipesandthesafetyunits(safetyunit,
pressure limiter) must be insulated.
 •Make provision in the room for ventilation to prevent condensation and corrosion of the water
heater paint.
 •Ensure that the supporting element (wall or ceiling) is sufciently resistant to accommodate
the weight of the water heater full of water (see table p. 37).
 •Makeprovisionforaspaceof40cmfortheperiodicmaintenanceoftheheaterelement.
 •In the case of installation above living rooms (suspended ceilings,
attics, etc.), it is ESSENTIAL to make provision for a water collection
tank connected to the drain under the water heater (shower type
tank for example).

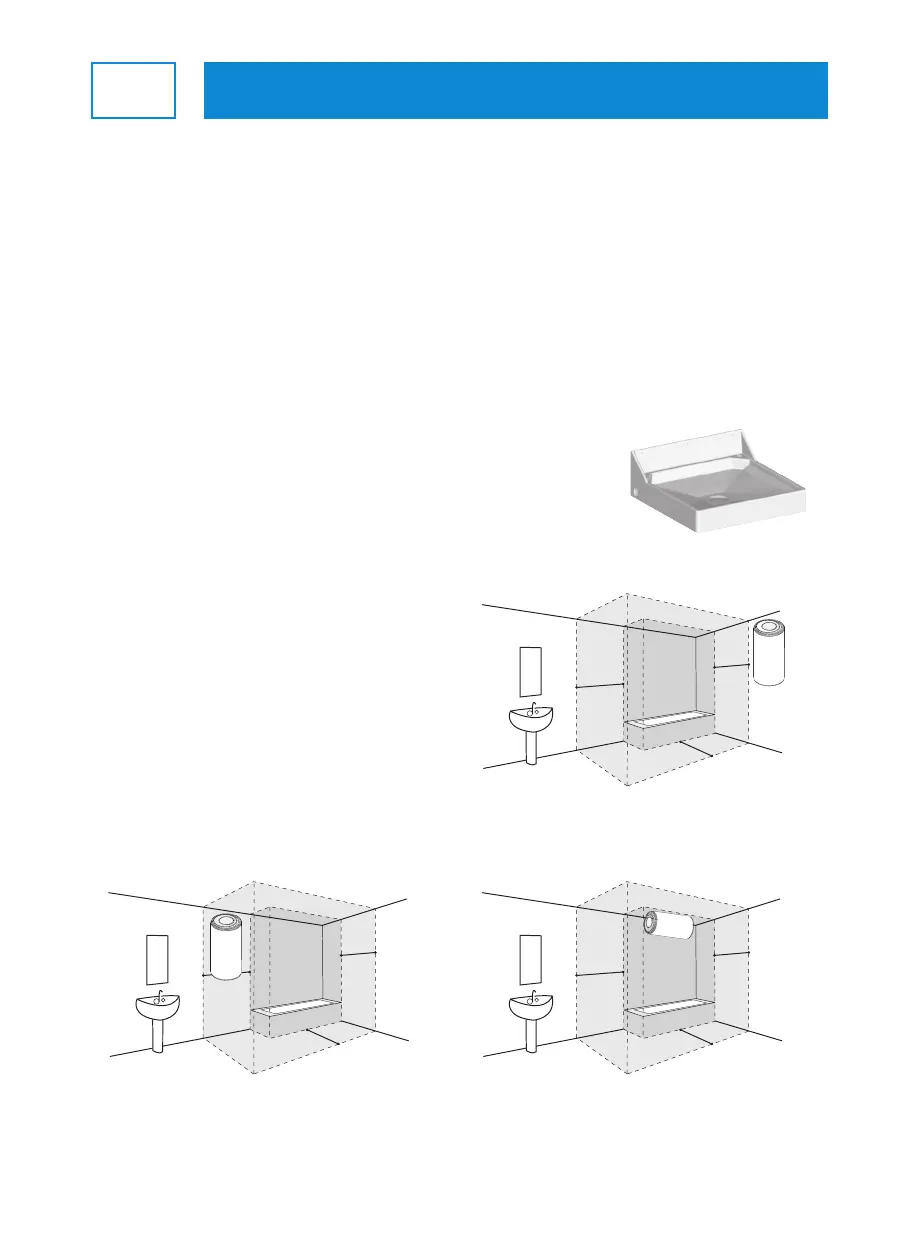

2.2 Specic installation in the bathroom
•Installationoutsidetheseareas(NFC15-100orstandardsinforceinthecountry).
If bathroom dimensions do not allow the water heater to be positioned outside these areas :
0,60 m
0,60 m
0,60 m
Area
1
Area
2
0,60 m
0,60 m
0,60 m
Area
1
Area
2
0,60 m
0,60 m
0,60 m
Area
1
Area
2
Possible in Area 2
Possible in Area 1 if:
- the water heater is horizontal and positioned
as high as possible
- the pipes are made from conductive material
- the water heater is protected by a circuit
breaker residual differential current (30m A)
connected
