Atlantic CHAUFFEO - Horizontal Water Heater (HM) Connected Underneath

EN
50

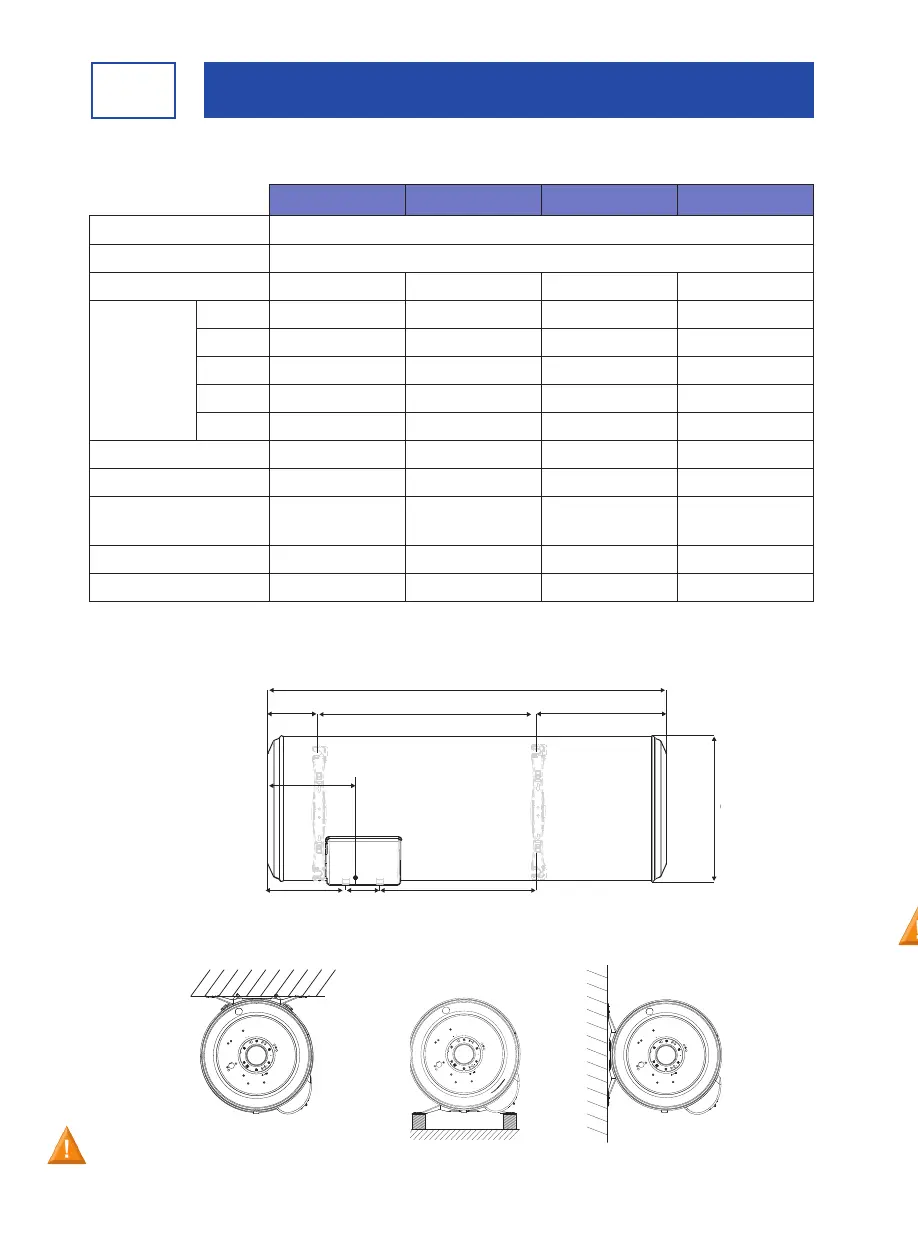

Technical specications
I.3 Horizontal water heater (HW) with underside connection
75 litres 100 litres 150 litres 200 litres
Voltage (V) 230 V single-phase
Resistance Shielded
Power (W) 1,200 1,200 1,650 2,200
Dimensions
(mm)
Ø 530 530 530 530
H 680 840 1,140 1,460
A 370 500 800 800
B 120 150 150 470
C 145 275 575 575
Real heating time** 4 h 07 min 4 h 57 min 4 h 53 min 5 h 24 min
Qpr (Maintenance consumption) *** 1.29 1.34 1.75 1.98
V40 (Amount of hot
water at 40°C)
144 183 253 341
Weight when empty (kg) 28 32 39 48
Weight when full (kg) 103 132 189 248
Various mounting options:
If mounting to the ceiling, it is essential to use the specically designed surround kit
(optional accessory, refer to its specic instructions).
*Real heating time for heating from 15° to 65°C
**Maintenance consumption in kWh for 24 hours for water at 65°C (ambiance 20°C)
Diagrammatic representation
A
H
Ø
(190)
B
315
(290) 125
C
È
È
Hot water outlet
Cold water inlet
È
È
È
È
È
È
