Atlantic CHAUFFEO - Horizontal Wall-Mounted Water Heater - Side Connection

EN
39
EN
3.4 Horizontal wall-mounted water heater- Side connection
Installation Manual: Fitting the water heater

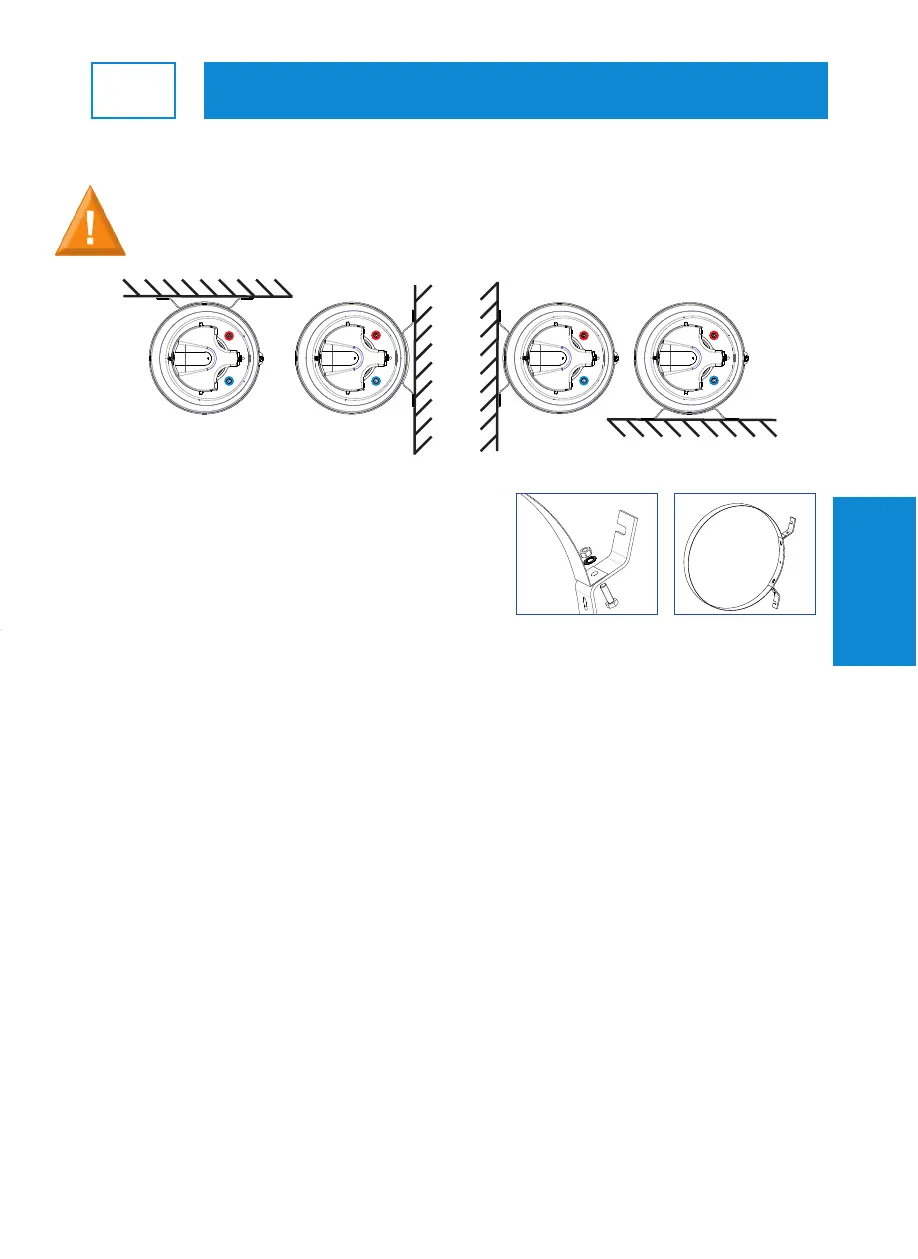

Mounting procedure:
- Assemble the belts and brackets using the nuts and bolts
in the package without tightening them (gs. 1 and 2)
- Fit the brackets with their belt on the support (wall,
ceiling, oor), then tighten
- Position the water heater using one of the 4 mounting
options.
- Complete the mounting procedure by tightening
the belt nuts on the bracket
x 2
gure 1 gure 2
CEILING
FLOOR
WALL
Essential:
Align the pick-ups vertically with the hot water outlet (red) above the cold water (blue).
