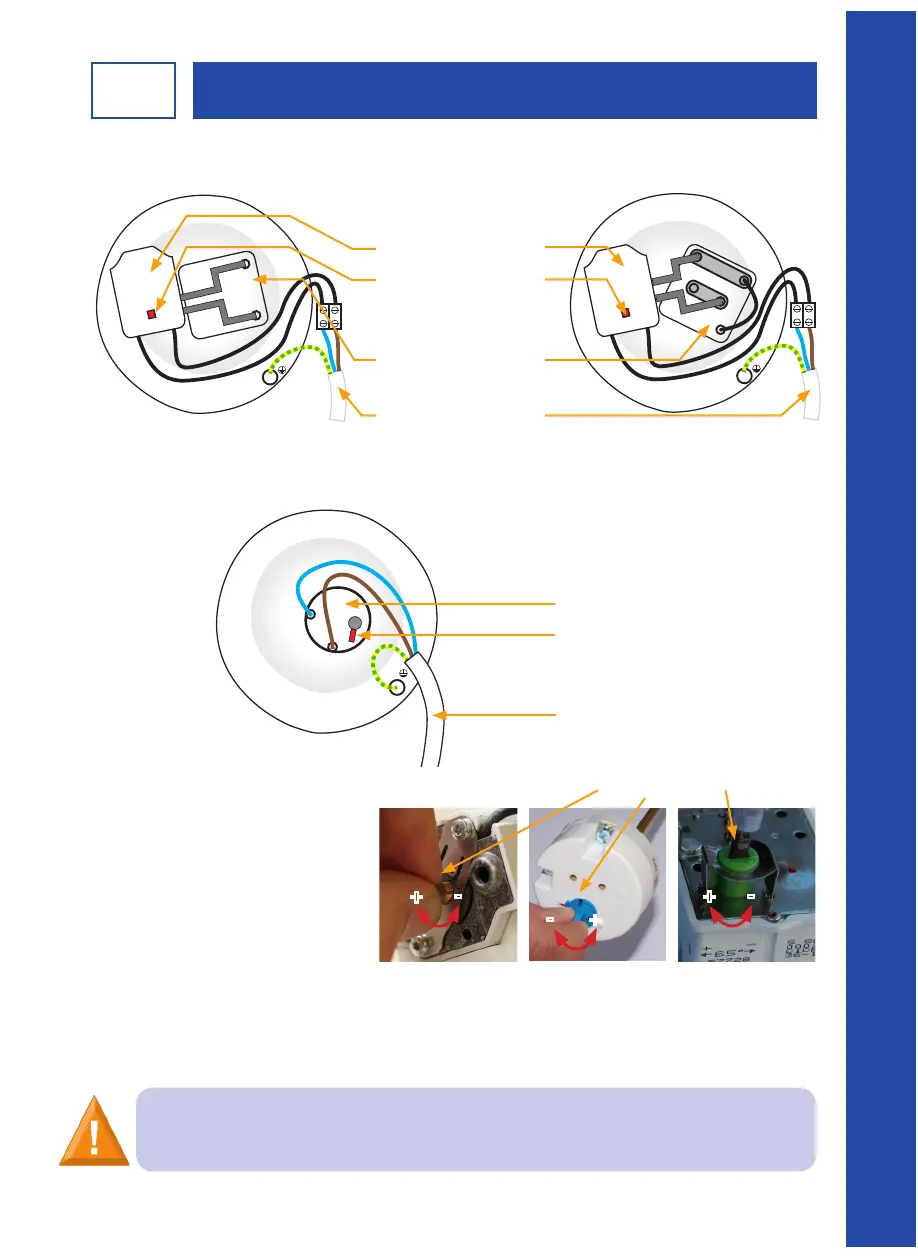

Your water heater: Wiring diagrams
II.4 Steatite stable model components
II.5 Shielded horizontal model components
III. Specic installation procedures
Adjusting the temperature
The factory temperature setting is 65° C.
The temperature may be lowered
by turning the wheel.
IV. Specic maintenance conditions
Parts that can be replaced
•Thermostat •Heaterelement
•Cover •Seal
•Heaterbody(onlyforSteatitewaterheaters)
Potentiometer
+ -
+-
+ -
The seal must be replaced if the heater body is replaced or opened.
Any replacement operation must be performed by a qualied person using
the manufacturer’s original parts.
Thermostat
Power supply cable
Thermal safety mechanism
Heater element
Power supply cable
Thermostat
Thermal safety
mechanism
200 L 250 and 300 L
