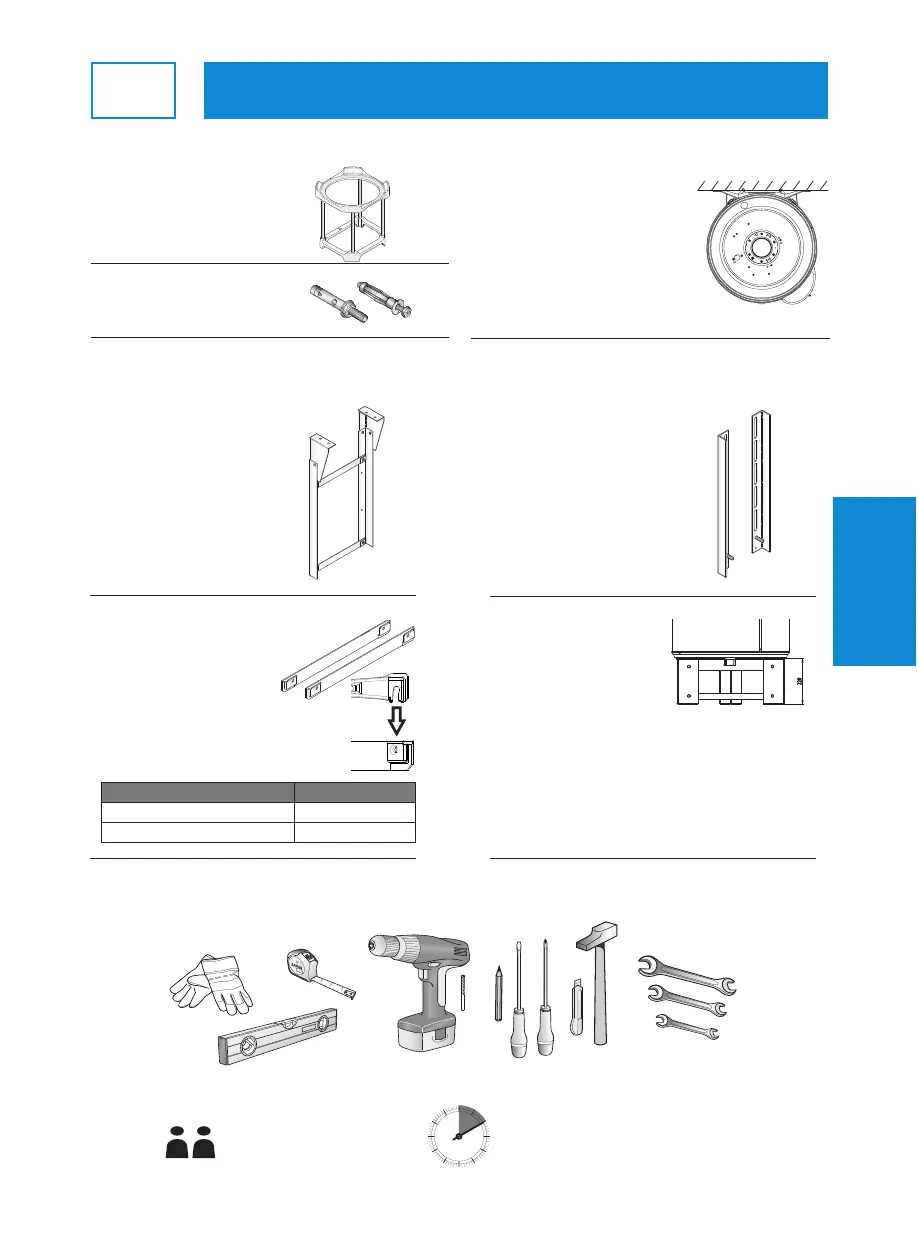

1.2.2. Optional accessories
1.3. Tooling required
1.4. Labour
2 people required
for assembly
1
2
2 hours
È
Capacity Number of plates
50 to 100 litres 1
150 to 200 litres 2
Ceiling attachment
console
Ideal for mounting vertical
wall-mounted water heaters
to the ceiling, when the wall
is not load bearing.
Frees up space under
the water heater.
Quick mounting
plates
Ideal for cramped places like
a cupboard, where there is
no access for tightening to
the wall.
Reduced tting time.
Universal mounting
brackets
Ideal for re-using
your old water heater’s
mountings with
no additional holes
Reduced tting time
Riser
Ideal for avoiding draining
modications on vertical
water heaters
on a base
Installation Manual: Installation
NOTICE ASSEMBLAGE REHAUSSE
Fournitures:
- 3 entretoises ref. : 112-10-018
- 3 pieds ref. : 112-10-024
- 3 entretoises ref. : 112-10-019
- 12 vis H M8x20 ref. : 112-40-017
- 12 écrous H M8 à embases crantées ref. : 112-40-008
Pour chauffe-eau vertical sur socle (VS)
capacité 150 à 300 litres
Code commercial: 009092
Montage conseillé
Entretoises :
ailes vers l'extérieur
Vis H M8x20
112-10-025D
Pour tous renseignements ou coordonnées,
veuillez consulter la notice du chauffe-eau.
Renseignements techniques - Garanties - Pièces Détachées :
Service clients / SAT C
BP 65 - 85002 La Roche sur Yon Cedex
International : consulter votre installateur
A
LL
Surround kit for horizontal
wall-mounted versions -
Underside connection
Mandatory for mounting
on the ceiling.
Can be used to replace the
mountings of an older appliance.
Enables the appliance to be slid a
few centimetres during installation
Tripod
For vertical wall-mounted models.
Mandatory for walls not able to
hold the weight for water heaters
greater than 100 L.
Mounting system
(Ø 10 mm min.)
(Depending on support)
Wall outlet cable
Sealing tape
or other
Pressure reducer
Mandatory if the water pressure
in your house is greater than 5 bar
(0.5 MPa). It must be installed at
the meter outlet (see page 41)
