38
Specic case:

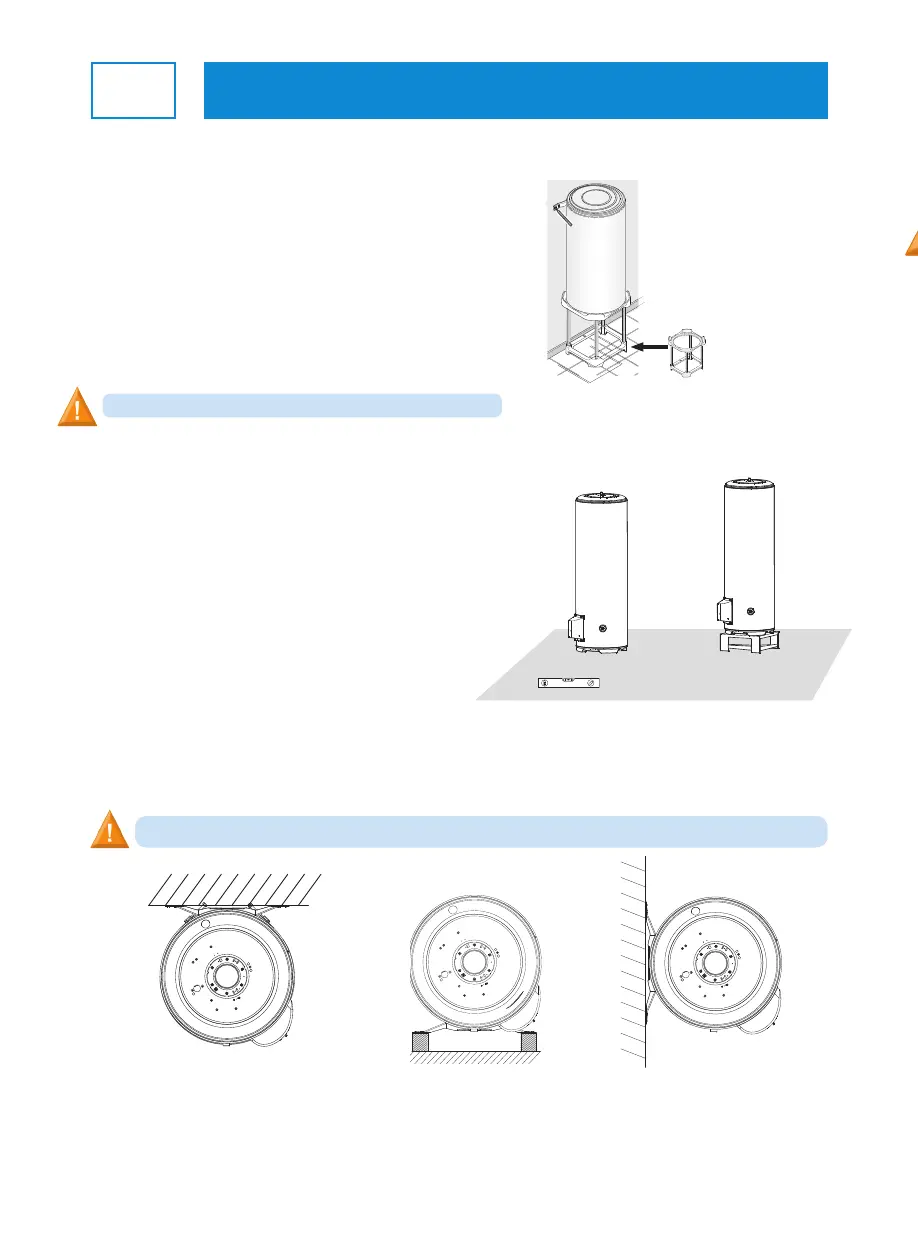

Fitting a vertical wall-mounted water heater
on a tripod
The use of a tripod is mandatory when tting a water tank with
a capacity greater than 100 L on a non load-bearing wall (cannot
support the weight of the full tank).
First t the water heater on its tripod in order to mark
the mounting points.
Carry out the drilling.
Put the water heater back in place.
3.2 Vertical water heater on base
Fitting a vertical water heater on a base (g. u)
does not require mounting.
Make sure you t it on a at surface.
You can use a riser (g. v) to facilitate routing of the pipes.
3.3 Horizontal wall-mounted water heater - Underside connection
A horizontal water heater can be tted to the wall, ceiling or oor.
Leave a free space of 400 mm underneath the cover in case the heater element in case the heater element
needs to be replaced.
Installation Manual: Fitting the water heater
The cold water inlet and the hot water outlet must always be at the bottom.
È
È
È
È
È
È
v
u
A
R
R-
M
U
R
BA
C
K-
WALL
A
RR-M
U
R
BA
C
K
-WA
LL
AR
R
-
M
UR
B
A
C
K
-
W
ALL
ARR-M
U
R
B
ACK
-
WA
LL
Mount the upper bracket.
