EN
34
Hot water
outlet
Cold water
inlet
Siphon
Dielect.
connect.
Temp. limiter
Phase
Earth
Neutral
Cold water
Hot water
È
È
Electrical distribution
board
16 A circuit breaker,
day/night switch
and 30 mA differential
Tap in a bathroom
for example
CAUTION
If your pipes are not made from
copper (PER, multi-layer, etc.), it is
MANDATORY to t a copper pipe
with a minimum length of 50 cm
(DTU.60.1) and/or a temperature
limiter at your tank’s hot water tank.
(see p. 40)
INSTALLATION PRECAUTIONS:
• Temperature at the installation point
should be between 4°C and 35°C
• Position the water heater as close as
possible to the water supply rooms
• If the water heater is installed above a
living area,
install a water retention tank

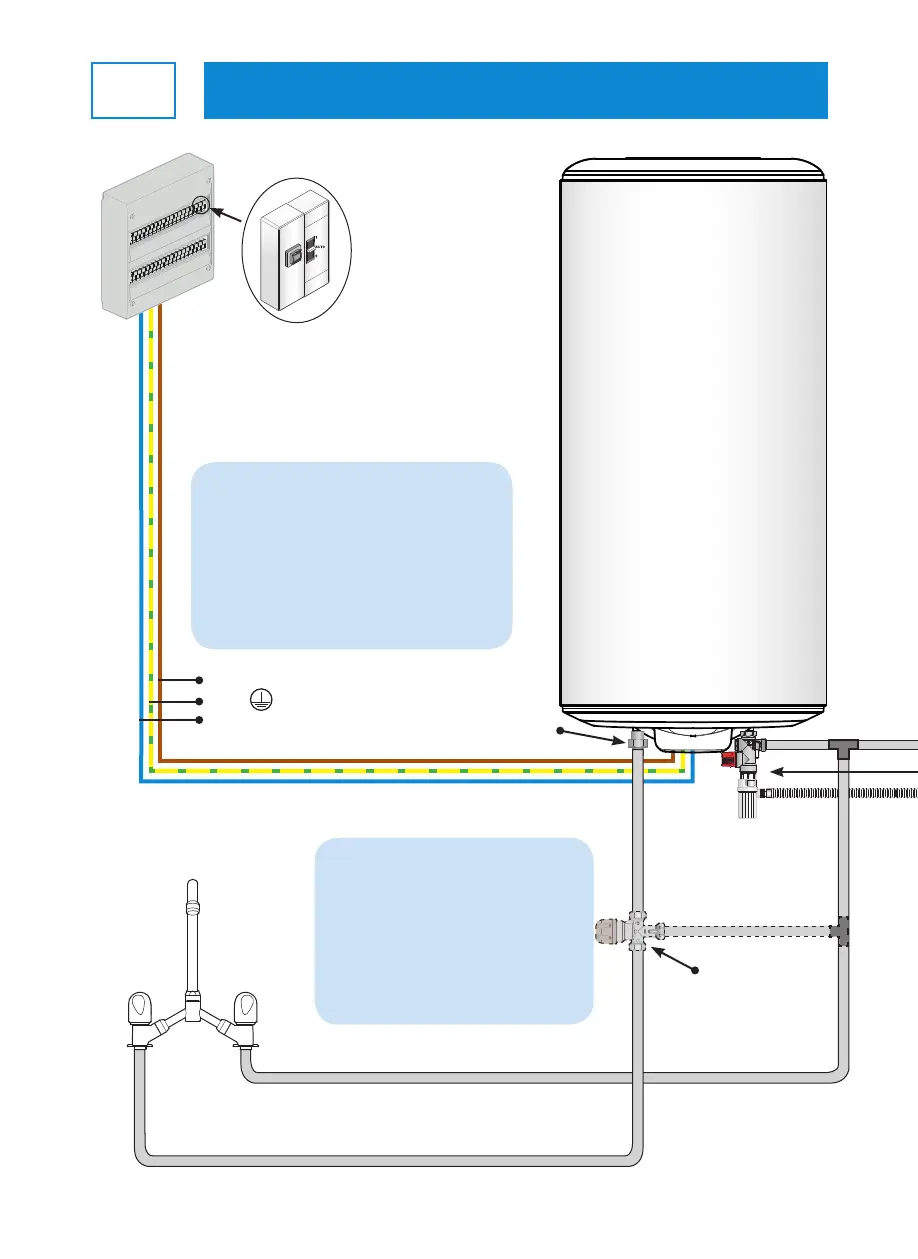

Installation Manual: Overall assembly diagram
