Atlantic CHAUFFEO - Water Heater Water Connections; Conventional Connection; Connection with a Temperature Limiter

EN
40

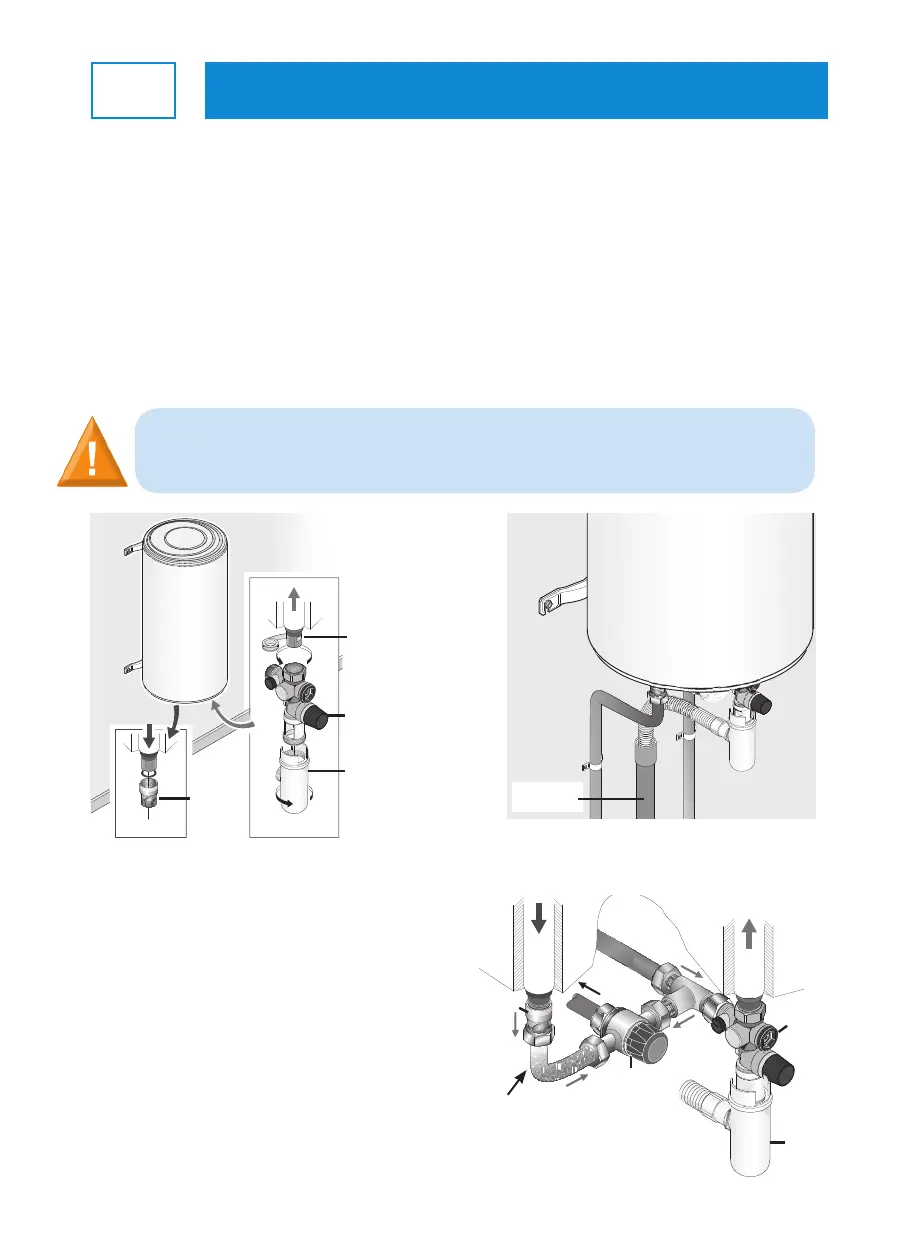

4. Water heater water connections
The water heater must be connected in accordance with the standards and regulations
in the country in which it is installed (for France: DTU Plumbing 60-1).
4.1 Conventional connection
u Connect the NEW safety unit to the cold water inlet (blue) on your water heater.
v Place the siphon under the safety unit and connect its drain pipe to the drain.
w Tighten the dielectric connection onto the hot water outlet (red) on your water heater.
x Tighten your pipes on your water heater.
4.2 Connection with a temperature limiter
Waste water
drainage
Temp.
limiter
Dielectric
connection
Siphon
Unit
safety
MANDATORY
ESSENTIAL
Cold water
Hot water
Mixed water
New and renovated
(decree of 30/11/2005)
For pipes made from PER
Hot water connection Cold water connection
Dielectric
connection
NEW
safety unit
Teon to be
applied in
the direction
of screwing
MANDATORY MANDATORY
Siphon
u
v
w
WARNING
Your pipes must be rigid (copper) or exible (standardised braided stainless steel hoses)
and able to withstand 100°C and 10 bar (1 MPa). Otherwise, use a temperature limiter.
Installation Manual: Water heater water connections
Must withstand
100° C and 10 bar
If your pipes are made from synthetic materials
(plastic or PER for example), it is essential to t
a temperature limiter (or thermostatic regulator).
The limiter must never be connected directly
to the water heater.
The temperature limiter enables the risks
of burning to be limited.
