Atlantic CHAUFFEO - Horizontal Water Heater (HM) Side Connection

EN
51

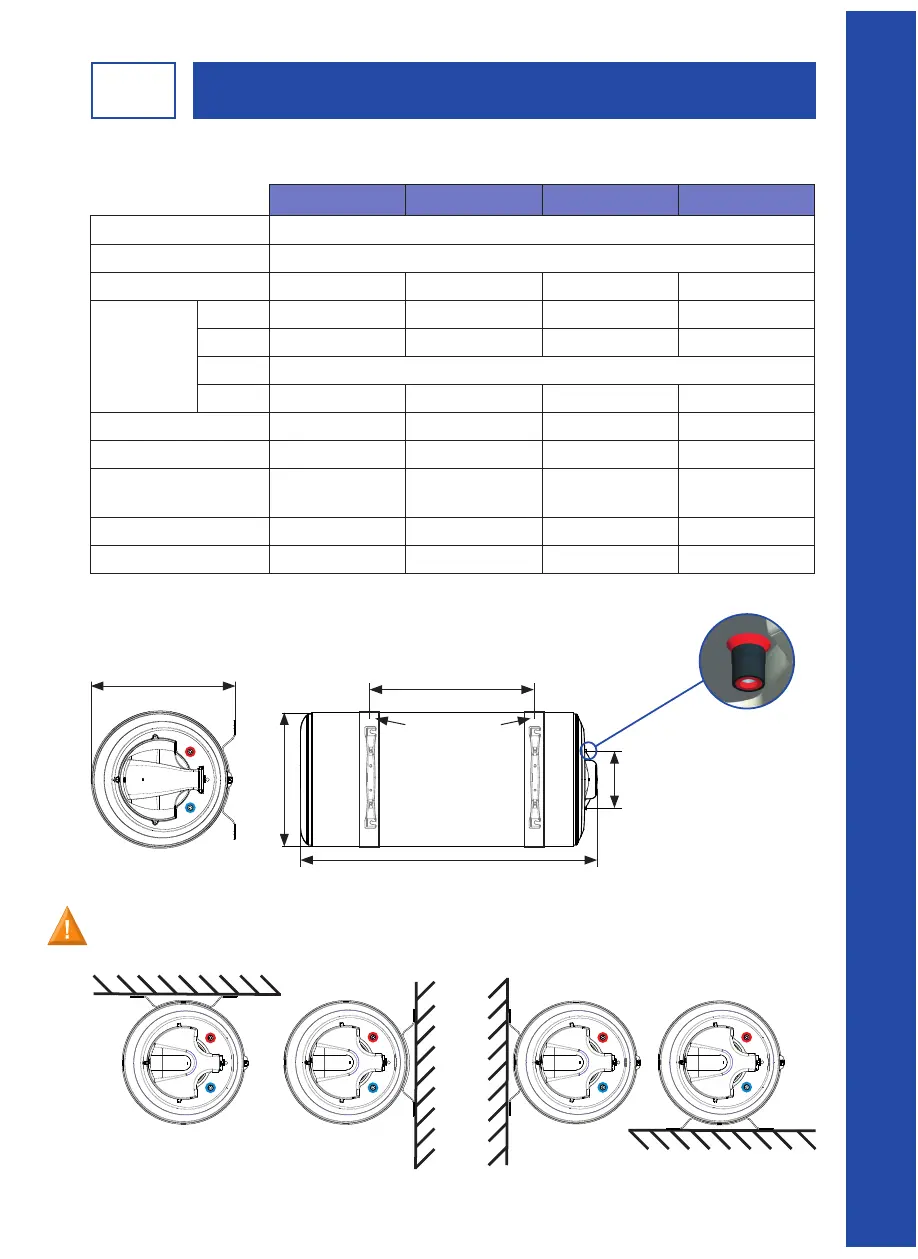

Technical specications
I.4 Horizontal water heater (HW) side connection
75 litres 100 litres 150 litres 200 litres
Voltage (V) 230 V single-phase
Resistance Shielded
Power (W) 2,000 2,000 2,000 2,000
Dimensions
(mm)
Ø 505 570 570 570
H 740 745 1,000 1,255
B Variable
C 530 590 590 590
Real heating time** 2 h 36 min 3 h 27 min 4 h 41 min 6 h 28 min
Qpr (Maintenance consumption) *** 1.34 1.54 1.89 2.15
V40 (Amount of hot
water at 40°C)
150 190 279 367
Weight when empty (kg) 27 32 41 51
Weight when full (kg) 102 132 191 251
Mounting belts
*Real heating time for heating from 15° to 65°C
**Maintenance consumption in kWh for 24 hours for water at 65°C (ambiance 20°C)
Hot water outlet
Cold water inlet
È
È
H
C
Ø
230
B
Various mounting options:
Align the take-offs vertically with the hot water outlet (red) above the cold water (blue).
CEILING
FLOOR
WALL
