Atlas Copco BLM 3750 - Associate Transducers to Channels

External Transducers Setup BLM 3750 User Guide
44 (78) 9836 3078 01 Edition 2.0
The number of Channels and Cells available depend from your bench configuration. For a standard JSB
3750 the 4 transducers (the first 4 cells), associated to the first 4 channels, are reserved for the bench
transducers; Cells from 5 to 16 and Channels 6 to 8 are available for external transducers (Channel 5 is
normally not used, and reserved for benches with 5 transducers. In old benches, it is available as additional
external transducer XDUC 5).
In this External Transducers Setup menu, it is possible to setup the external channels. Having many Cells
available allows to store several different external transducers. For instance, in a standard JSB 3750 bench
you can define 11 external transducers, assigning each one to a different Cell. The Channel associated to
the Cell defines to which external connector of the bench you must connect the transducer for the test.

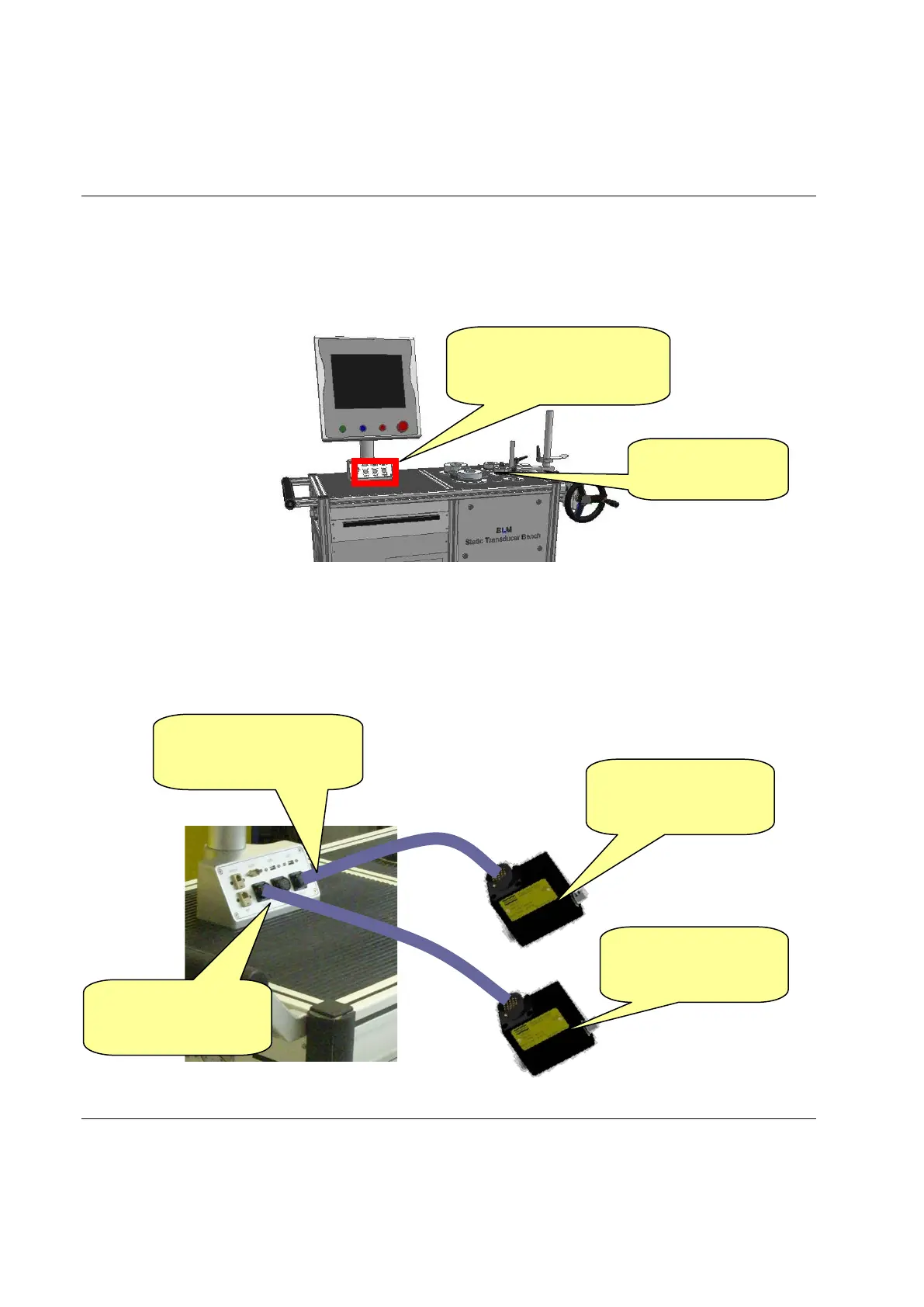

Here is an example:
Internal channels,
Channel 1 to 4
External channels 6, 7 and
8, marked as XDUC 6,
XDUC 7 and XDUC 8
IRTT-B 75 Nm.
Define transducer
parameters in Cell 6
IRTT-B 25 Nm.
Define transducer
parameters in Cell 5
Associate Cell 6 to
Channel 8 (connector
XDUC 8)
Associate Cell 5 to
Channel 6 (connector
XDUC 6)
