Atlas Copco EBL Drive - Timing Chart

EBL RE-Drive and EBL RE Module EN EBL Drives and Controllers
20
© Atlas Copco Industrial Technique AB - 9836 5849 01
Symptoms Confirmation
The unit does not power up even after replacing the
fuse with a spare.
Contact the supplier.
The screwdriver will not function. Make sure the unit is not set in factory default mode
(system setting mode 00).

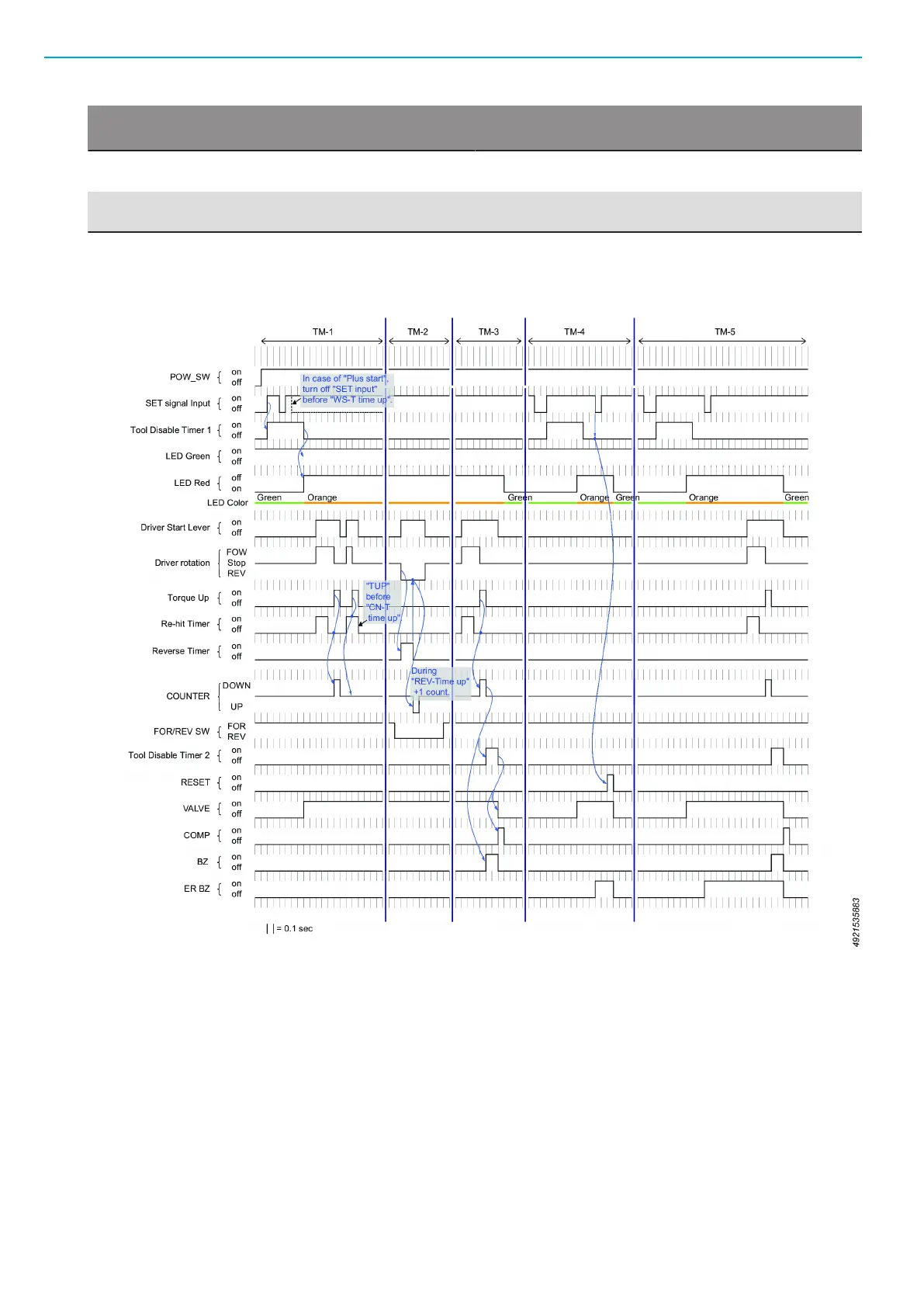

Timing chart
Blue arrows shows the relationship between the signals.
