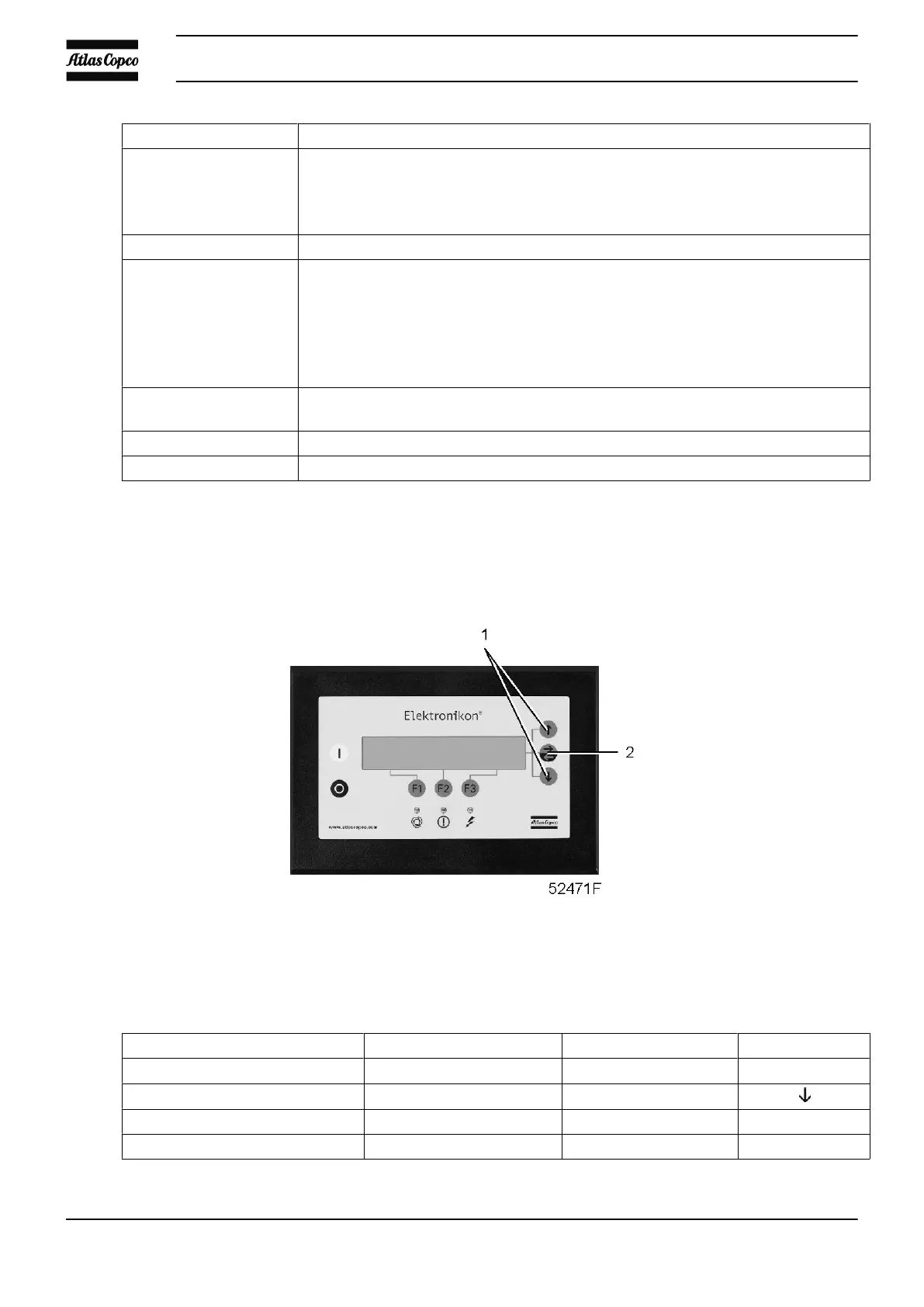

Program Function
“Counters” Calls up:
•
running hours
•
regulator (module) hours
•
number of motor starts
“Test” Display test.
“Modify Parameters” Modifying the settings for:
•
Parameters (e.g. loading and unloading pressures)
•
Protections (e.g. temperature shut-down level)
•
Service plans (timers for service plans)
•
Clock functions (automatic compressor start/stop/pressure band commands)
•
Configuration (time, date, display language,...)
“Service” Calls up service plans and resets the timers after carrying out the service actions in
a service plan.
“Saved Data" Calls up the saved data: last shut-down, last emergency stop data.
“Unload”/”Load” Loads and unloads the compressor manually.
3.7 Calling up menus
Description
Control panel
When the voltage is switched on, the Main screen is shown automatically.
Example of Main screen of GA 90 up to GA 500
“Compressor Outlet” 7.5 bar
.
“Automatically Loaded”
“Menu” “Unload”
F1 F2 F3
