Reference Name
A Air inlet temperature in ˚C
B Condensation temperature in ˚C
C Effective working pressure in bar
D Relative air humidity in %
5.4 During operation
Warning
The operator must apply all relevant Safety precautions.
The operator should immediately stop the machine in case of oil leaks internally in the
machine as wel as externally and consult a competent technician to resolve the cause.
The machine should not be restarted before the problem has been remedied

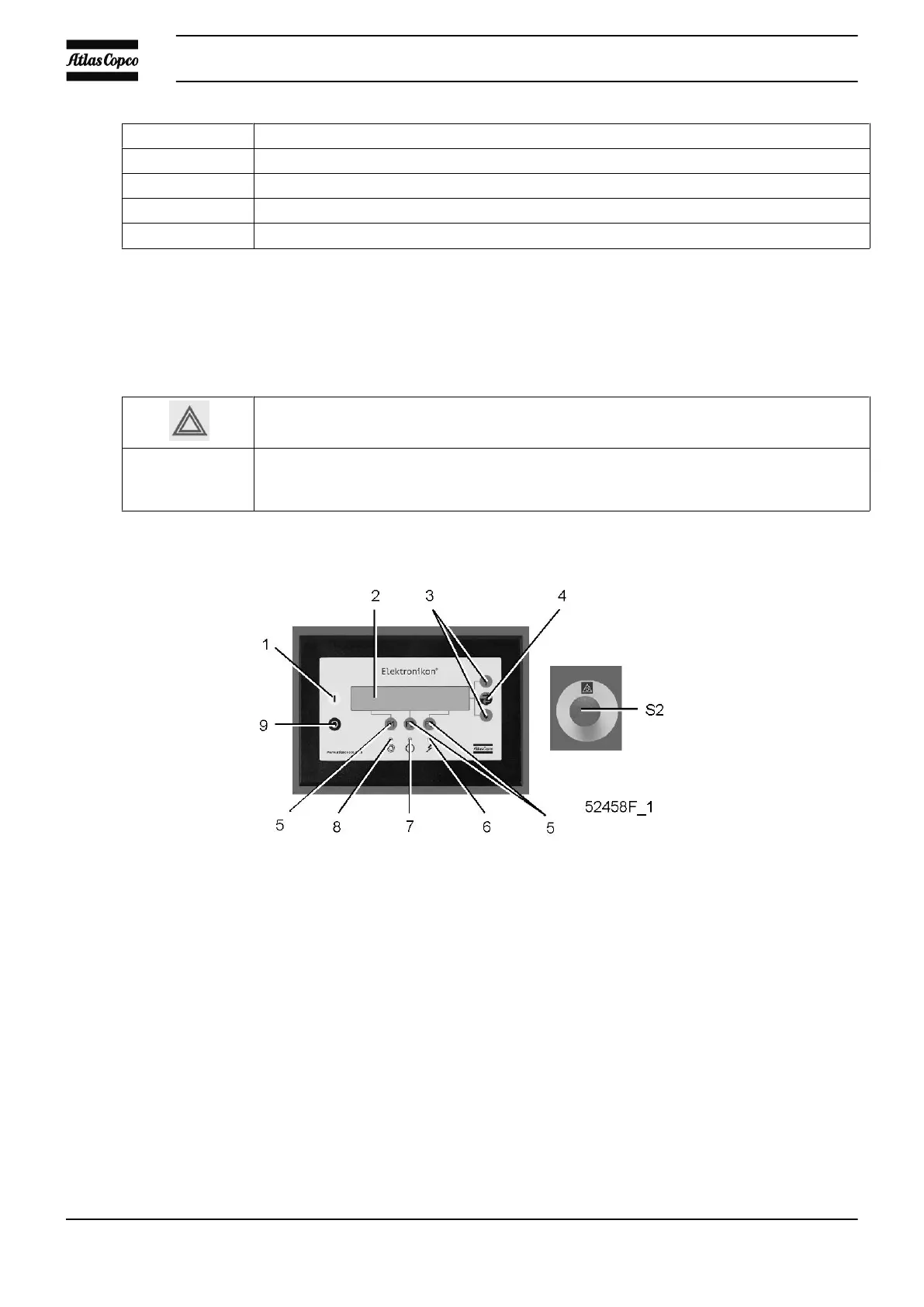

Control panel
Control panel of MkIV regulator
1. When the automatic operation LED (8) is lit, the starting and stopping of the motor is controlled
automatically.
2. Check the readings on display (2).
3. To unload the compressor manually, press the “Unload” key (5). To put the compressor back into automatic
operation, press the “Load” key (5).
4. Regularly check that the vessel of the OSD is filled; if necessary, gently top up with water to the level of
the water outlet and re-install the cover (see Initial start-up).
5. On Full-Feature compressors, regularly check the pressure dew-point on the display of the control panel.
The pressure dew-point will deviate from nominal if the air inlet conditions or volume differ from nominal.
Instruction book
84 2920 1475 06
